Installing System Components
Dell™ PowerEdge™ 850 Systems Installation and Troubleshooting Guide
Cooling Shroud
System Battery
Fan Assembly
PCI Fan Module
Power Supply
Expansion Cards
Riser Card
System Memory
Processor
This section describes how to install the following system components:
l Cooling shroud
l System battery
l Fan assembly
l Power supply
l Expansion cards
l Riser card
l System memory
l Processor
Cooling Shroud
The cooling shroud covers the processor and system battery. The shroud also directs air flow to the expansion cards and system memory.
Removing the Cooling Shroud
1. Open the system. See " Opening the System " in "Troubleshooting Your System."
2. While grasping the cooling shroud, press the release latch and lift the shroud away from the fan assembly. See Figure 5 -1 .
3. Remove the cooling shroud.

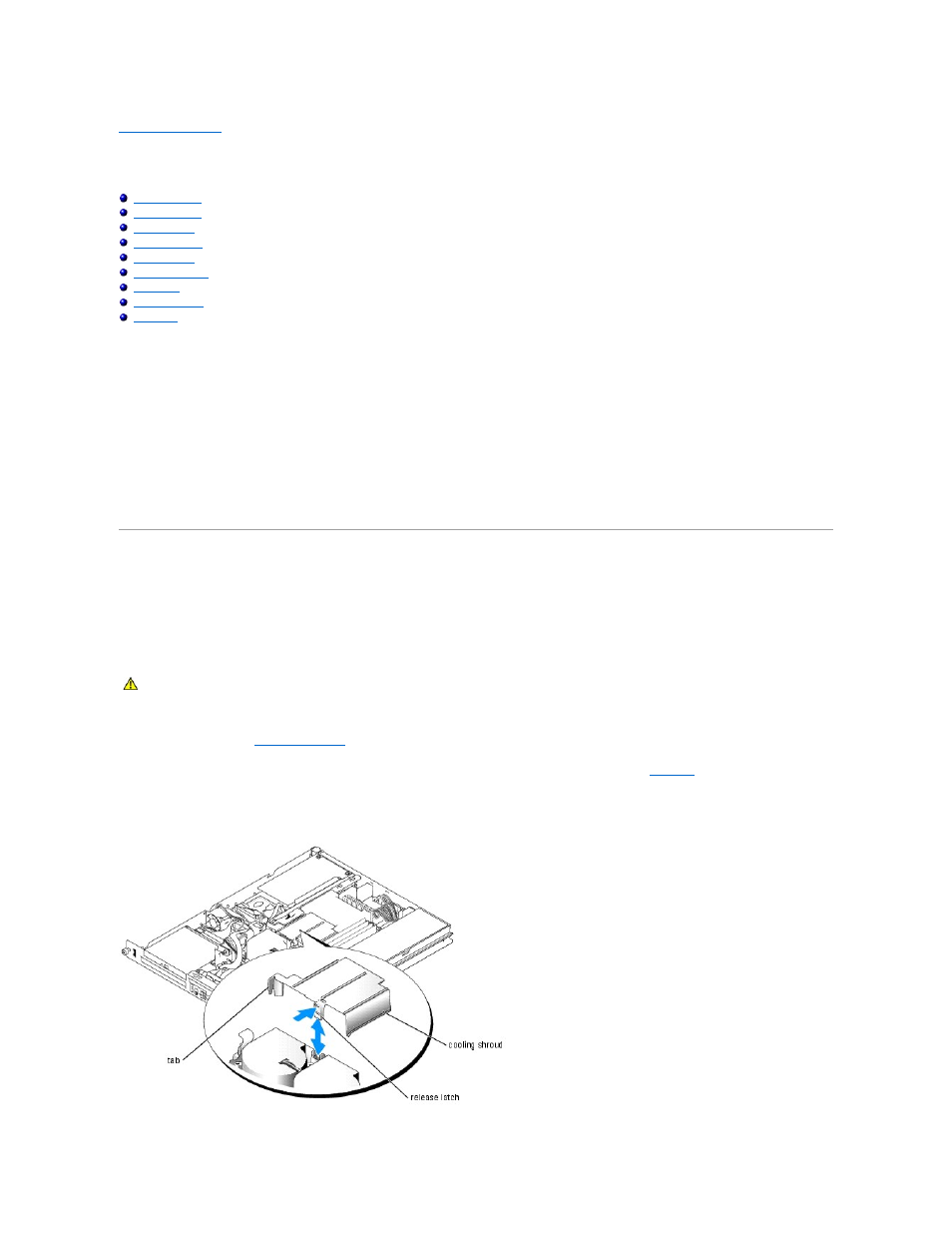

Figure 5-1. Installing and Removing the Cooling Shroud
CAUTION: Only trained service technicians are authorized to remove the system cover and access any of the components inside the system.
Before performing any procedure, see your Product Information Guide for complete information about safety precautions, working inside the
computer and protecting against electrostatic discharge.
