Fibre Channel Over Ethernet: Broadcom NetXtreme II® Network Adapter User Guide

file:///C|/Users/Nalina_N_S/Documents/NetXtremeII/English/fcoe.htm[9/5/2014 3:45:12 PM]

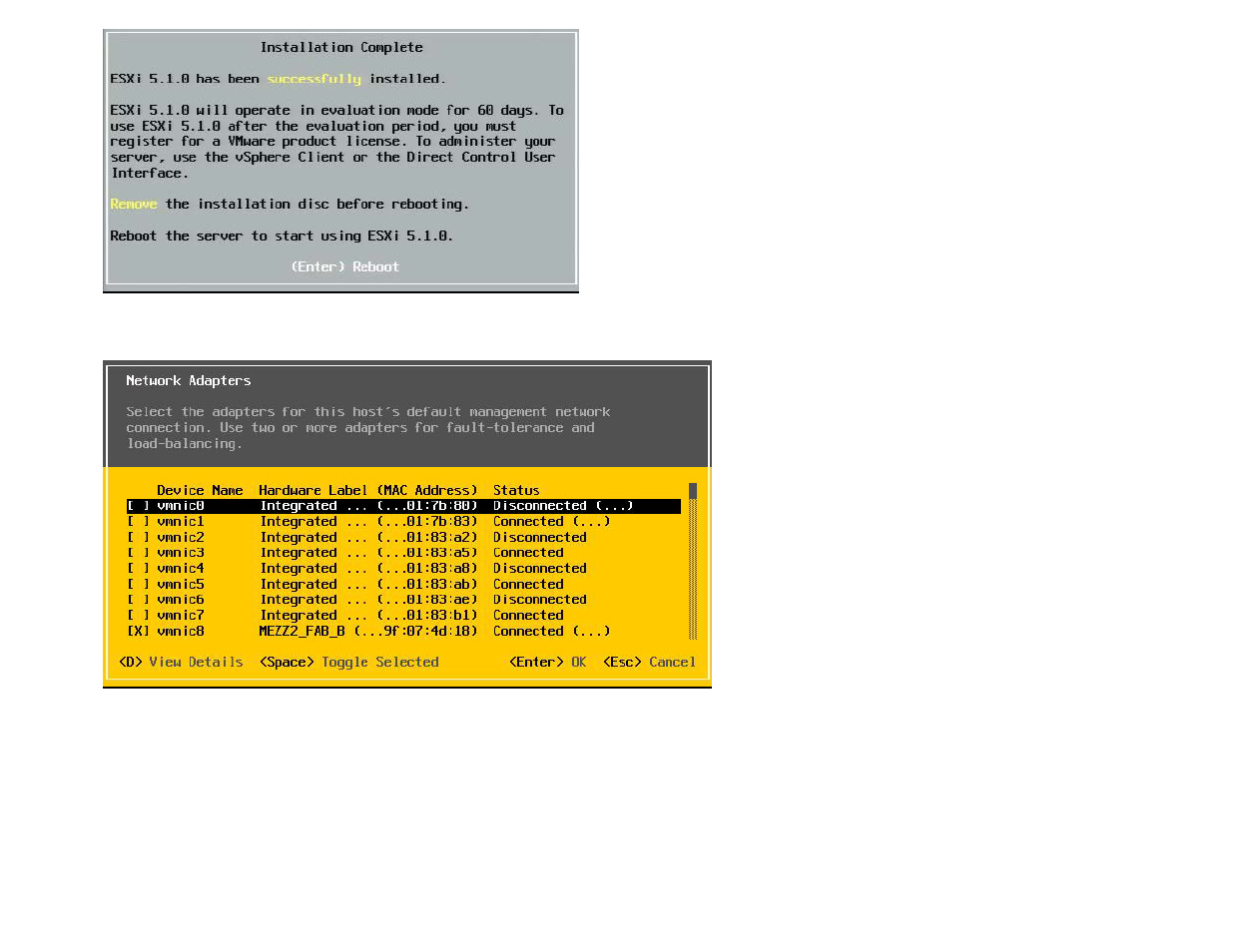

10. On 57800 and 57810 boards, the management network is not vmnic0. After booting, open the GUI console and display the configure management network > network

adapters screen to select the NIC to be used as the management network device.

11. For BCM57800 and BCM57810 boards, the FCoE boot devices need to have a separate vSwitch other than vSwith0. This allows DHCP to assign the IP address to the management

network rather than to the FCoE boot device. To create a vSwitch for the FCoE boot devices, add the boot device vmnics in vSphere Client under Networking.
