11 Remove the nine screws securing the system board to the chassis and then
slide the system board assembly toward the front end of the chassis.
CAUTION:
Do not lift the system board assembly by grasping a memory module,
processor, or other components.
12 Grasp the system board assembly by the edges and lift the system board
assembly away from the chassis. See Figure 3-21.

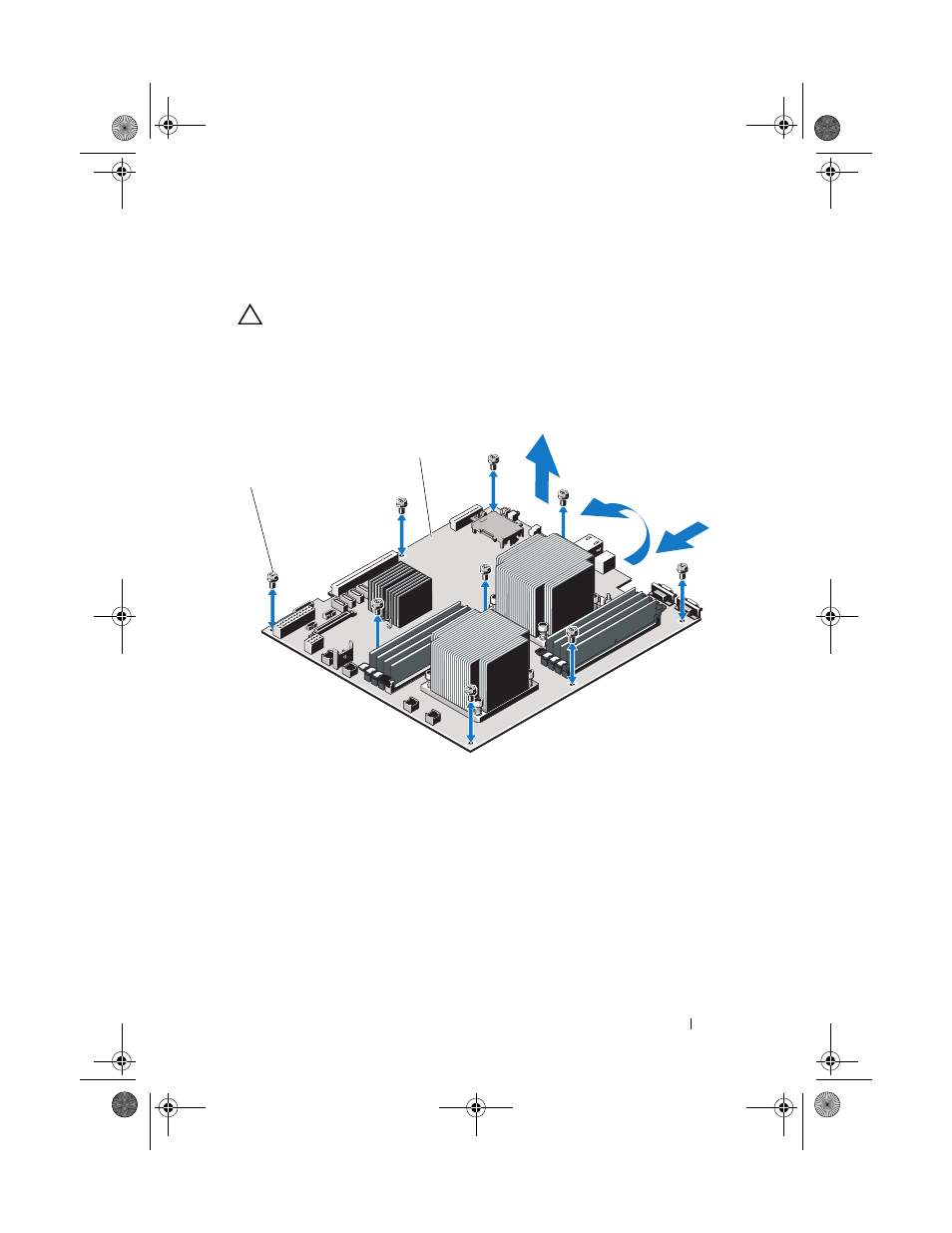

Figure 3-21. Removing and Installing the System Board
1 screws (9) 2 system board assembly
