106

Installing System Components

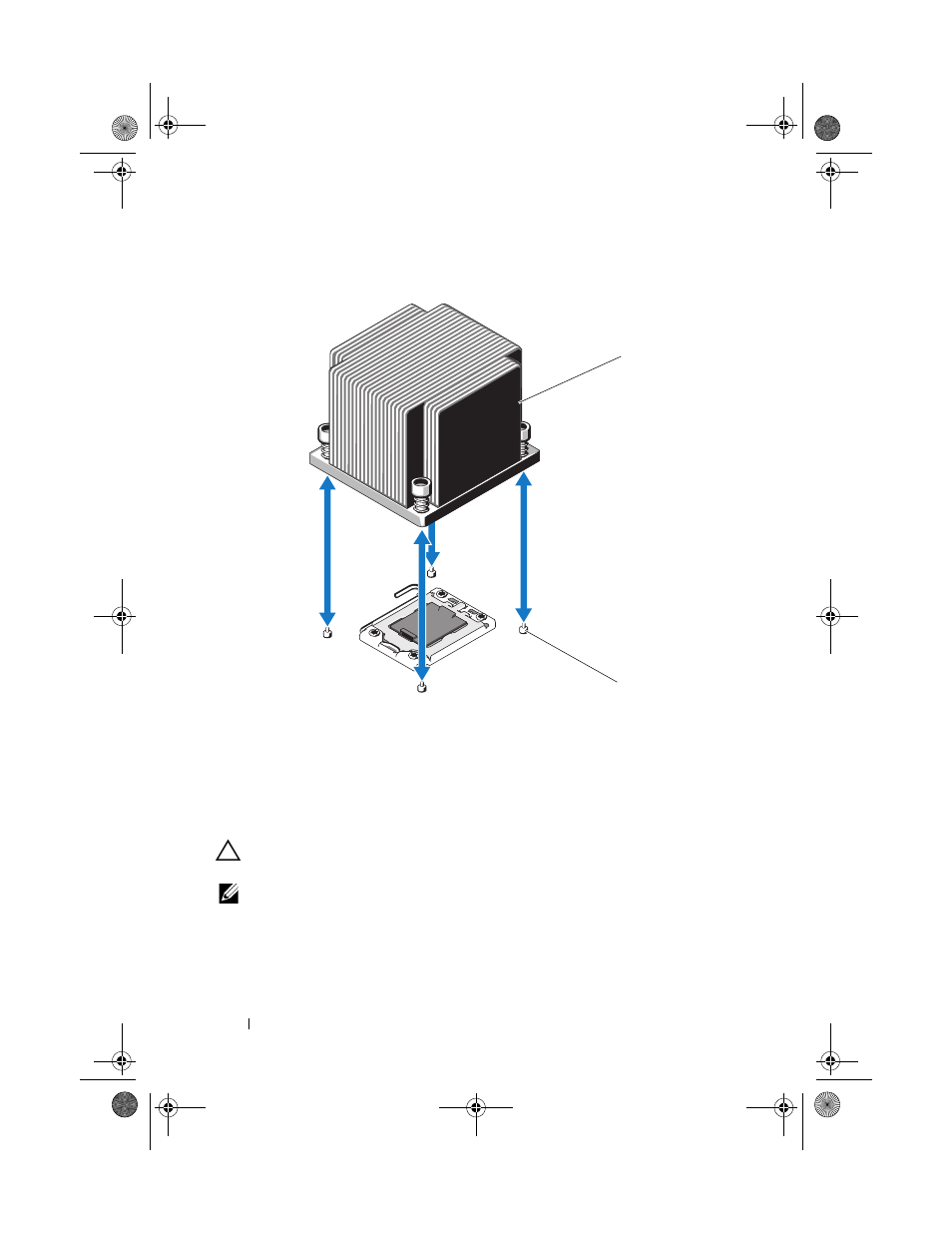

Figure 3-16.

Installing and Removing the Heat Sink

10 Rotate the processor shield upward and out of the way. See Figure 3-17.
11 Lift the processor out of the socket and leave the release lever up so that

the socket is ready for the new processor.

CAUTION:

Be careful not to bend any of the pins on the ZIF socket when removing

the processor. Bending the pins can permanently damage the system board.

NOTE:

In single-processor configurations, a processor must be installed in socket

CPU1. Install the blank in socket CPU2 only.

1

heat sink heat-sink

2

retention screws (4)

2

1
