Installing System Components

107

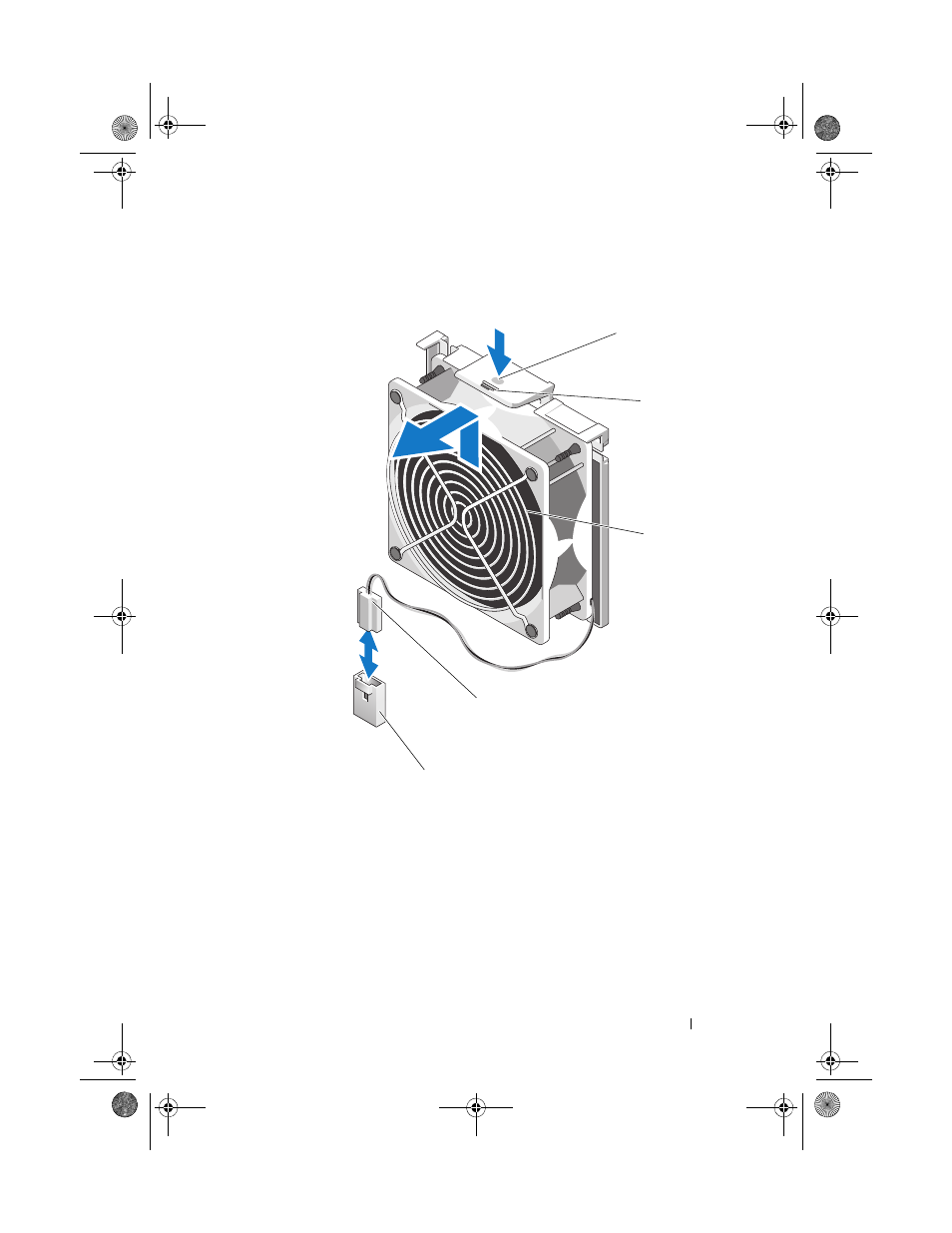

Figure 3-16.

Removing the System Fan

Installing the System Fan

1 Align the tabs on the system fan with the securing slots on the chassis.
2 Slide the system fan into the securing slots until the release tab

locks into place.

1

touch-point

2

release tab

3

system fan

4

power cable

5

FAN connector on the system board

3

4

2

5

1
