7-30 Dell PowerVault 200S, 201S, 210S, and 211S Storage Systems Installation and Service Guide

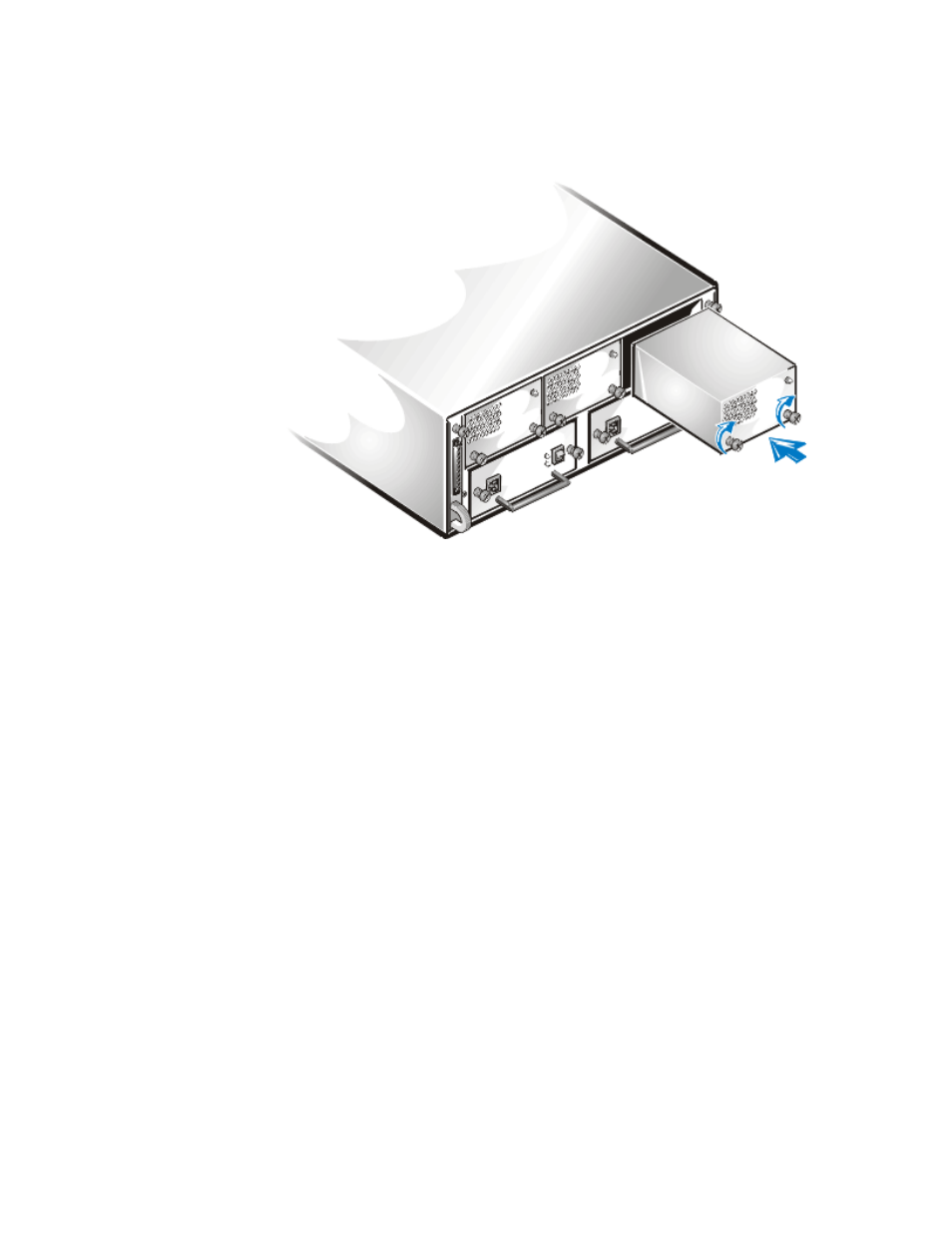

)LJXUH ,QVHUWLQJ WKH 5HGXQGDQW &RROLQJ )DQ
4. Using a Phillips-head screwdriver, turn the two captive screws clockwise until the
redundant fan is secured to the fan bay.
The redundant fan starts.
,QVWDOOLQJ WKH 6HFRQG (QFORVXUH 0RGXOH
To install the second enclosure module (hereafter called module), perform the follow-
ing steps:
1. Using a Phillips-head screwdriver, loosen the captive screw at the top of the ter-
minator blank on the right-side back of the storage system.
2. Grasp the handle on the terminator blank and pull it from the module bay (see
Figure 7-19).
