support.dell.com Installing Drives 6-7
,QVWDOOLQJ D 6&6, +DUG'LVN 'ULYH LQ WKH 6WRUDJH 6\VWHP
To install a SCSI hard-disk drive and carrier in a drive bay, perform the following steps.
127,&( ([WUD FDUH PXVW EH WDNHQ ZKHQ KDQGOLQJ WKH KDUGGLVN GULYHV 7KH
FDUULHUV SURYLGH VRPH SURWHFWLRQ EXW WKH KDUGGLVN GULYHV FDQ EH GDP
DJHG E\ URXJK KDQGOLQJ :KHQ LQVWDOOLQJ KDUGGLVN GULYHV XVH JHQWOH
SUHVVXUH WR VOLGH WKHP LQ WKH GULYH ED\V ,QVHUW WKHP VORZO\ QHYHU XVH
IRUFH
1. If the drive bay is occupied by an empty carrier, remove the carrier from the drive
bay.
2. Carefully slide the replacement drive carrier into the bay (see Figure 6-6). When
the carrier is almost all the way into the bay, the carrier handle will flip up.

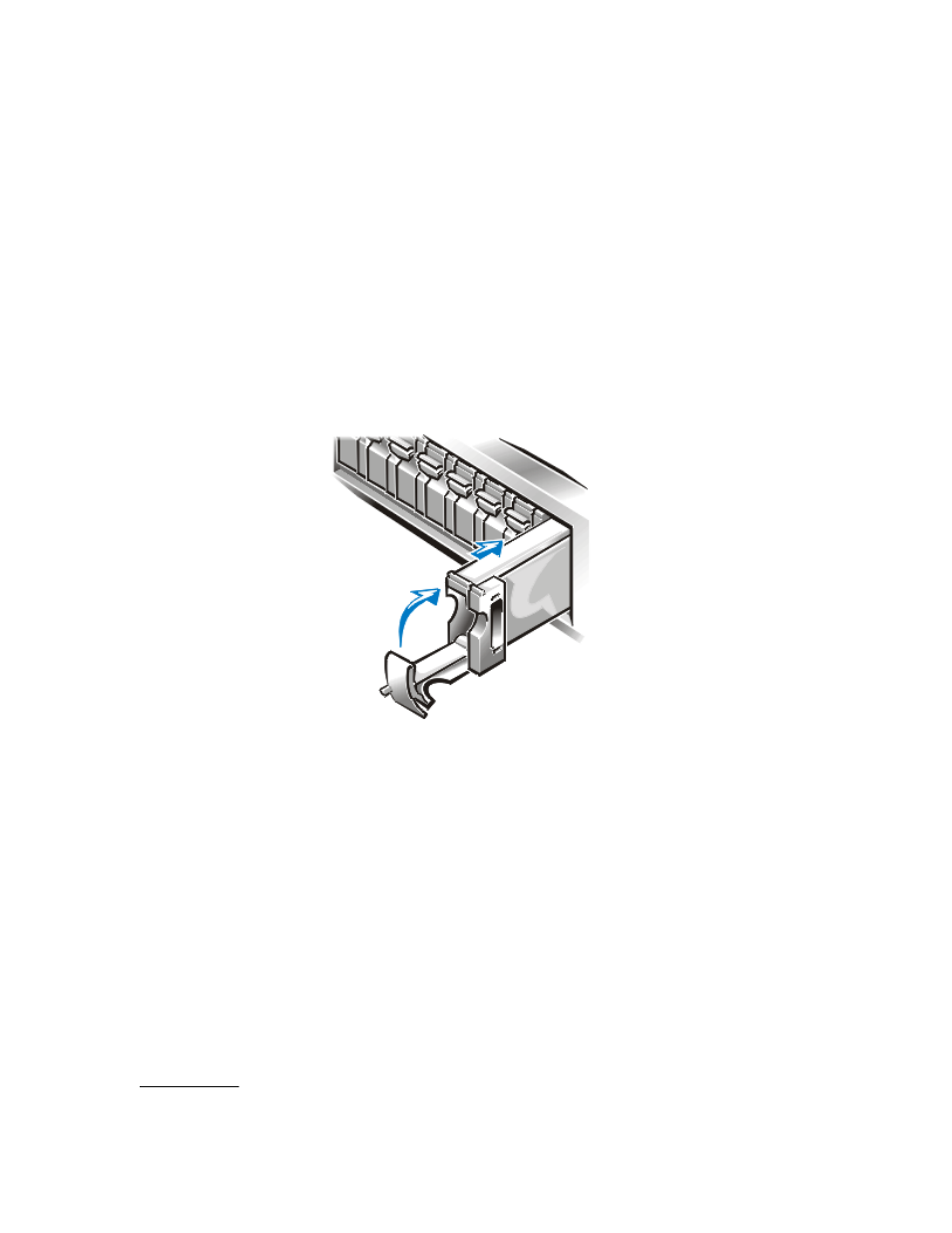

)LJXUH ,QVWDOOLQJ D 6&6, +DUG'LVN 'ULYH
3. Close the handle to draw the drive carrier into the bay and lock the drive in place.
When the controller recognizes the hard-disk drive, the drive online indicator
turns on.
4. Replace the lock bar in the lock position.
5. Use the key to lock the keylock.
