3-6 Dell PowerVault 200S, 201S, 210S, and 211S Storage Systems Installation and Service Guide

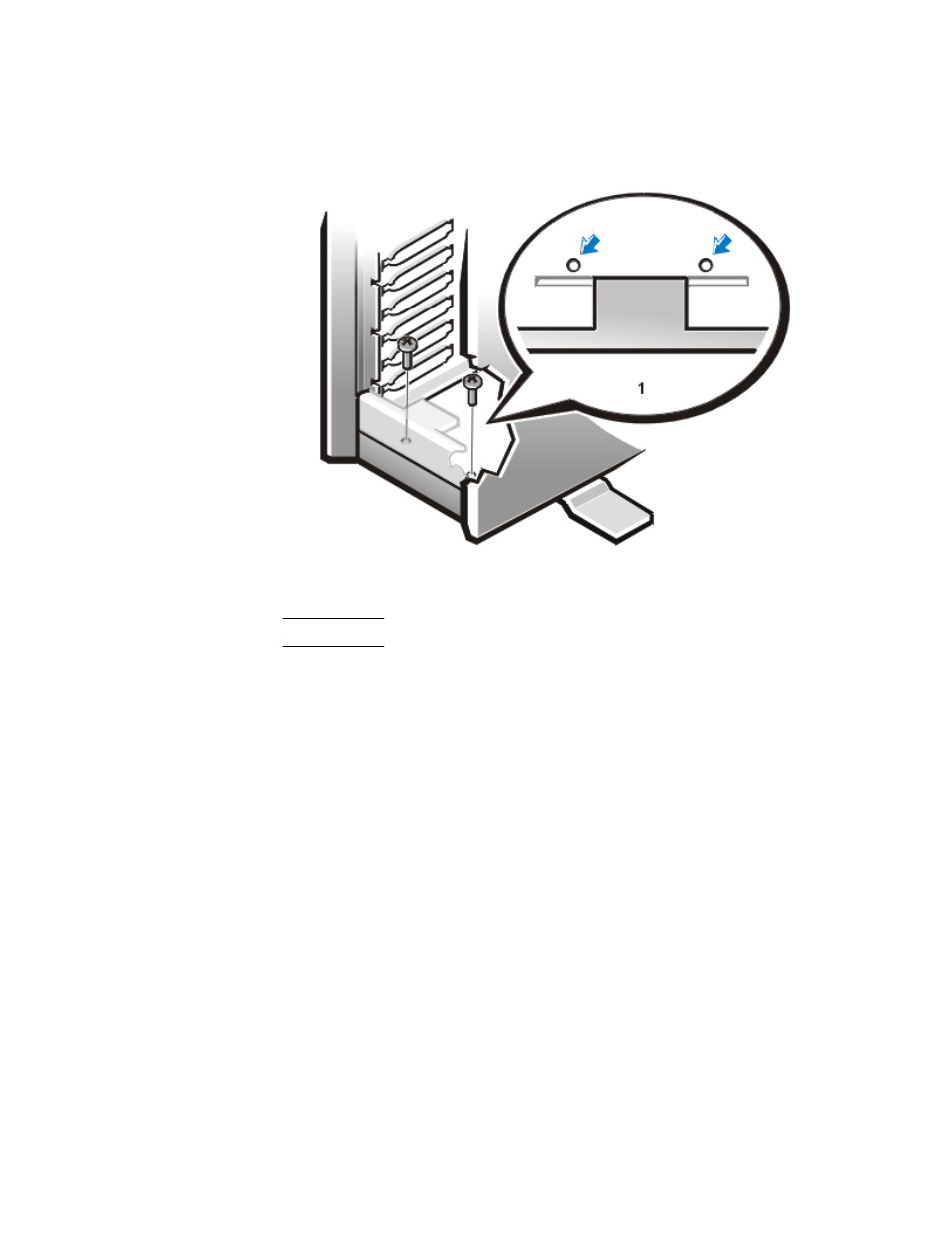

)LJXUH ,QVWDOOLQJ WKH )URQW 6FUHZV
6. Repeat steps 4 and 5 for the two screw holes located at the top.
7. Locate the four screw holes at the back of the storage system (see Figure 3-4).
8. Start four 6-32 x 1/2-inch screws in the screw holes and tighten them using a
Phillips-head screwdriver.
&RPSOHWLQJ WKH ,QVWDOODWLRQ
1. Replace the hard-disk drives.
2. Connect the small computer system interface (SCSI) cable(s) to the host com-
puter and then to the storage system.
1 Top view
