support.dell.com Connecting Your Storage System to the Host Computer 5-3
4. Use Table 5-1 to identify the type of operation for your PowerVault 2xxS storage
system and to validate which connector to use.
See Figure 5-2 for the PowerVault 200S and 201S and Figure 5-3 for the
PowerVault 210S and 211S.
.

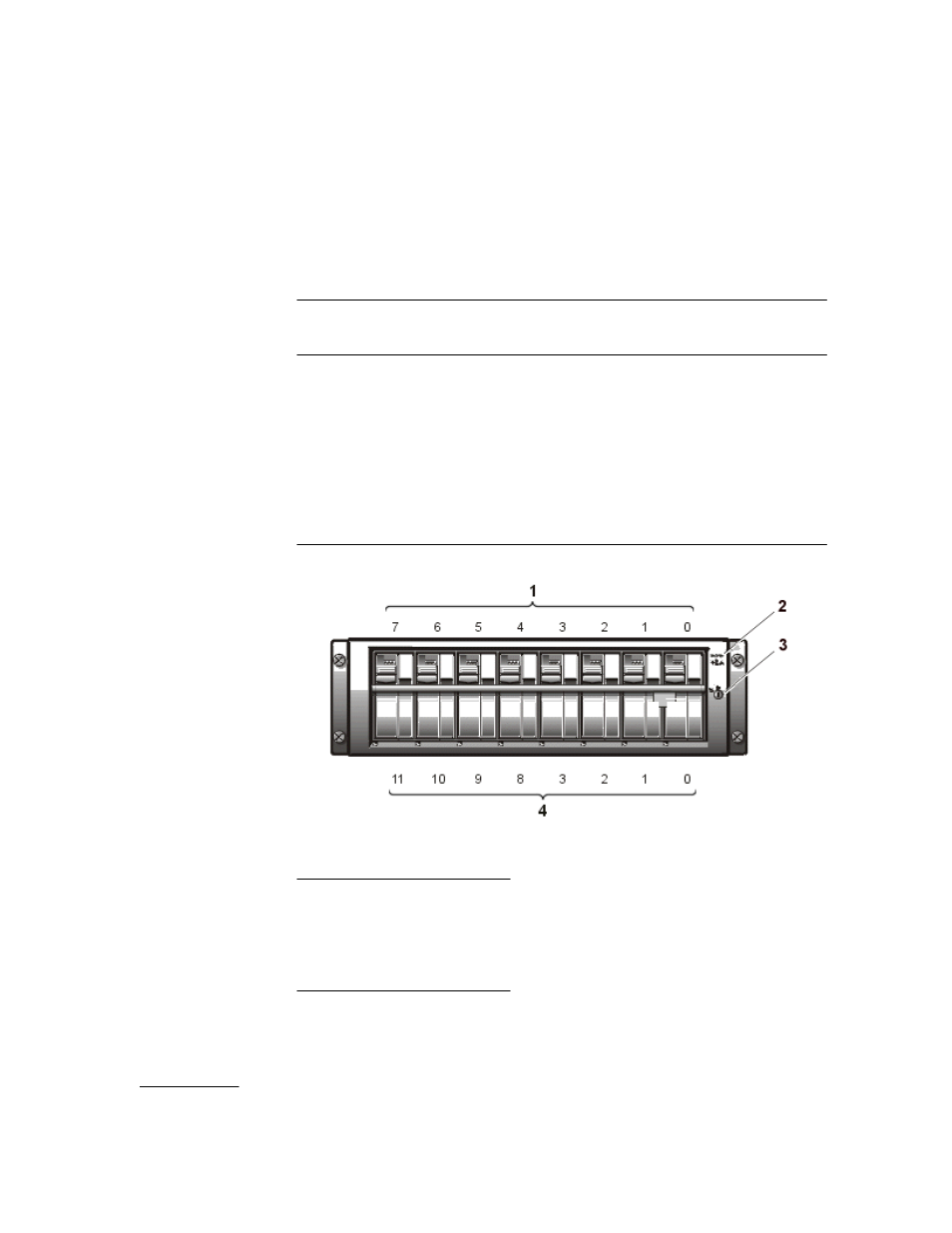

)LJXUH 6&6, ,' 1XPEHUV IRU 3RZHU9DXOW 6 DQG 6
7DEOH 6WRUDJH 6\VWHP 2SHUDWLRQ DQG &DEOH &RQQHFWLRQV
7\SH RI 2SHUDWLRQ
6&6,
&RQQHFWRU V
3RZHU9DXOW [6
6&6, ,'V &RQWUROOHG
7KURXJK &DEOH
3RZHU9DXOW [6
6&6, ,'V &RQWUROOHG
7KURXJK &DEOH
Single-bus backplane
operation with one
cable attached A 0, 1, 2, 3, 8, 9, 10,
and 11 0, 1, 2, 3, 4, 5, 8, 9,
10, 11, 12, and 13
Dual-bus split back-
plane operation with
two cables attached A 0, 1, 2, and 3 0, 1, 2, 3, 4, and 5
B 8, 9, 10, and 11 8, 9, 10, 11, 12, and
13
Cluster operation
with two cables
attached A and B 0, 1, 2, 3, 8, 9, 10,
and 11 0, 1, 2, 3, 4, 5, 8, 9,
10, 11, 12, and 13
1 Drive numbers
2 Enclosure status indicators
3 Keylock
4 SCSI ID numbers
