70 Speakers, Audio Connectors, and Consumer Infrared
Removing the Audio Connector Board
CAUTION: Before you begin any of the procedures in this section, follow the
safety instructions in the Product Information Guide.
NOTICE: To avoid electrostatic discharge, ground yourself by using a wrist
grounding strap or by periodically touching an unpainted metal surface (such as the
back panel) on the computer.
1 Follow the instructions in "Before You Begin" on page 9.
2 Remove the palm rest (see "Palm Rest" on page 49).
3 Remove the screw securing the audio connector board.
4 Remove the audio connector cable from the system board.
5 Remove the audio connector board by lifting it up.

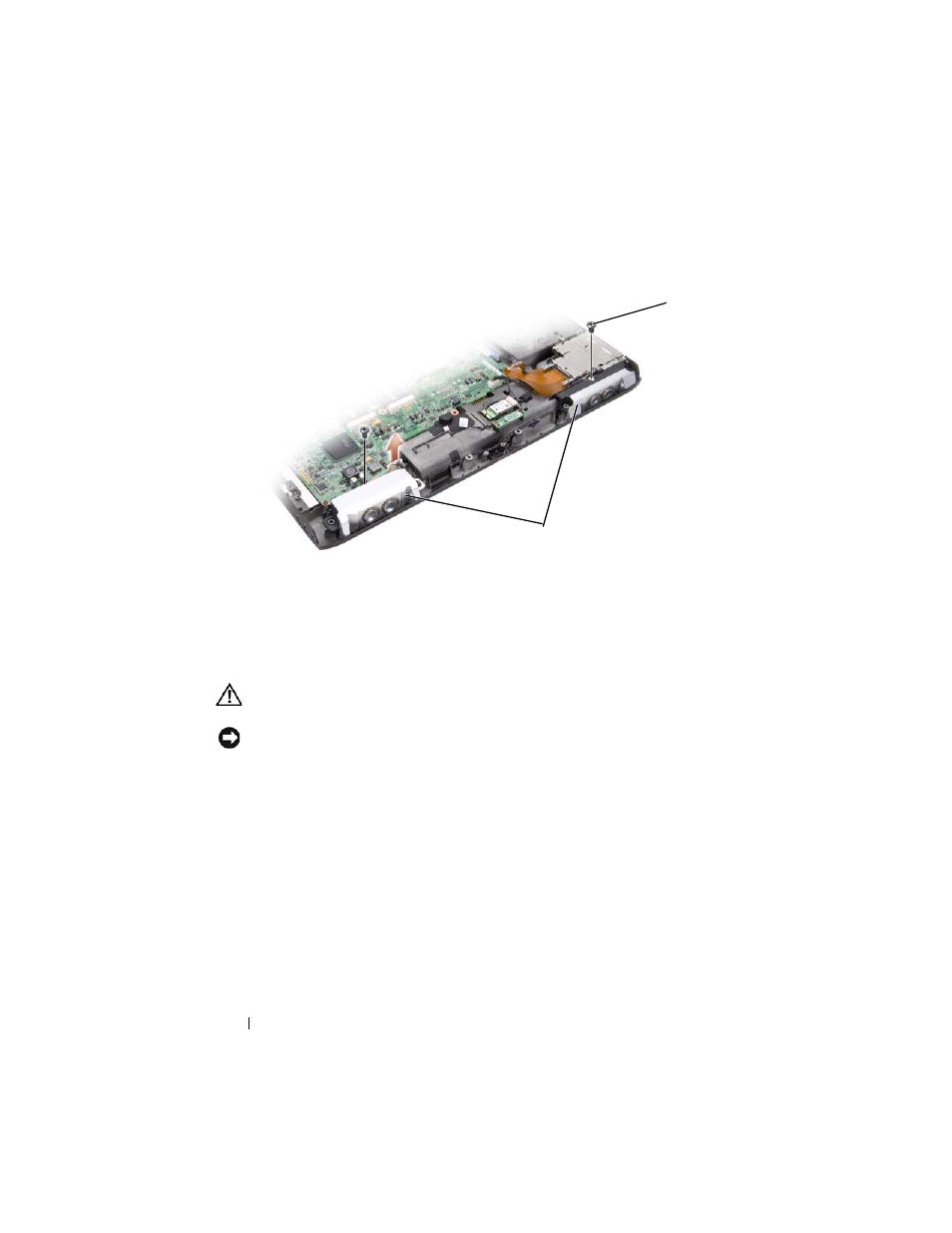

1 screws (2) 2 speakers (2)
1
2
