Installing System Components
93
5 Tilt the heat sink and shroud assembly away from the fan housing and lift
it out.
6 Remove the I/O panel and SATA cables (if present) attached to the routing
clips on the side of the power supply.
7 Using a #2 Phillips screwdriver, remove the four Phillips screws that secure
the power supply to the back panel.
8 Press the power-supply release tab down and slide the power supply toward
the front of the system, then lift it out of the system chassis. See
Figure 3-27.
9 Remove the cable clip and set it aside to attach to the new power supply.

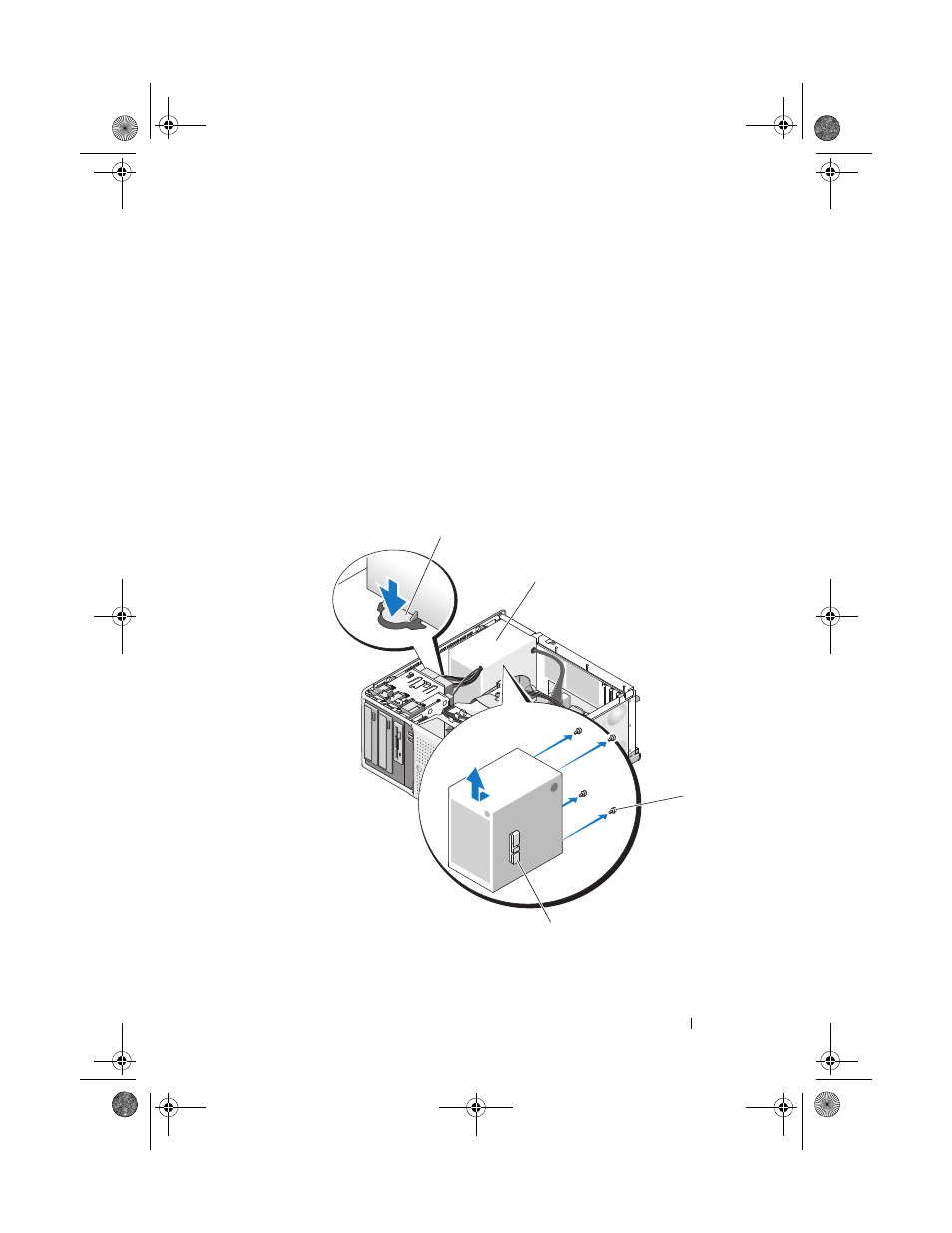

Figure 3-27. Removing the Power Supply
1 power supply release tab 2 power supply
3 screws (4) 4 cable clip
3
1
2
4
