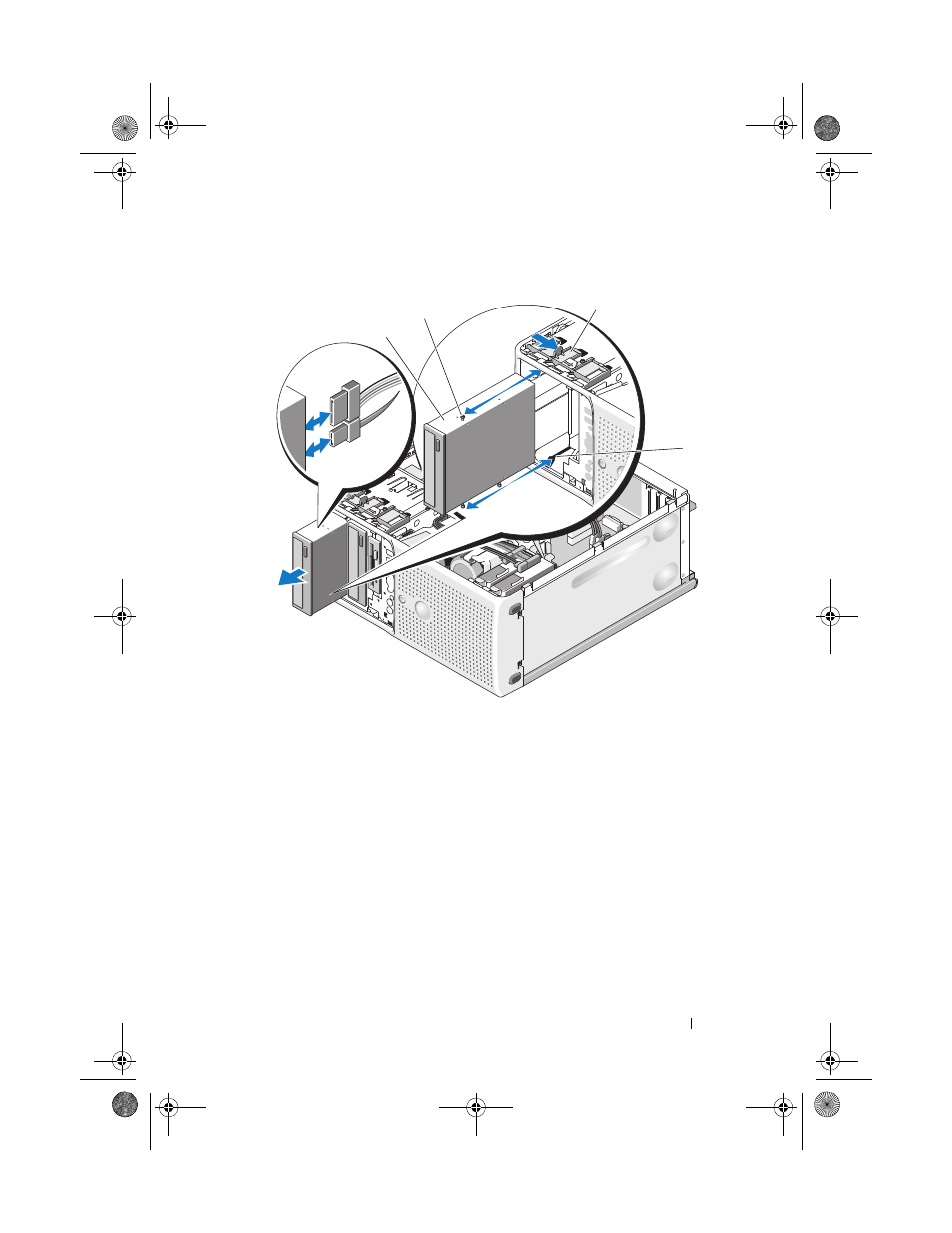

Figure 3-10. Removing and Installing an Optical (SATA Connection)
7 If you are installing another drive in the bay, see "Installing an Optical or
Tape Drive" on page 60.
8 If the drive is being permanently removed, install an insert on front drive
bezel. See "Replacing an Insert on the Front Drive Bezel" on page 50.
9 Replace the front drive bezel. See "Replacing the Front Drive Bezel" on
page 49.
10 Close the system. See "Closing the System" on page 47.
11 Reconnect the system to the electrical outlet, and turn on the system and
attached peripherals.
1 sliding plate 2 optical drive shoulder screw
3 optical drive 4 drive bay screw slots
