Installing System Components
79
1 Turn off the system and attached peripherals, and disconnect the system
from the electrical outlet.
2 Open the system. See "Opening the System" on page 47.
3 Press on the securing clip at each end of the memory module connector.
See Figure 3-20.
4 Align the memory module’s edge connector with the alignment key in the
connector.
The memory module connector has an alignment key that allows the
memory module to be installed in the connector in only one way.
5 Applying even pressure to both ends of the module, insert the module into
the connector and carefully press the module into place.

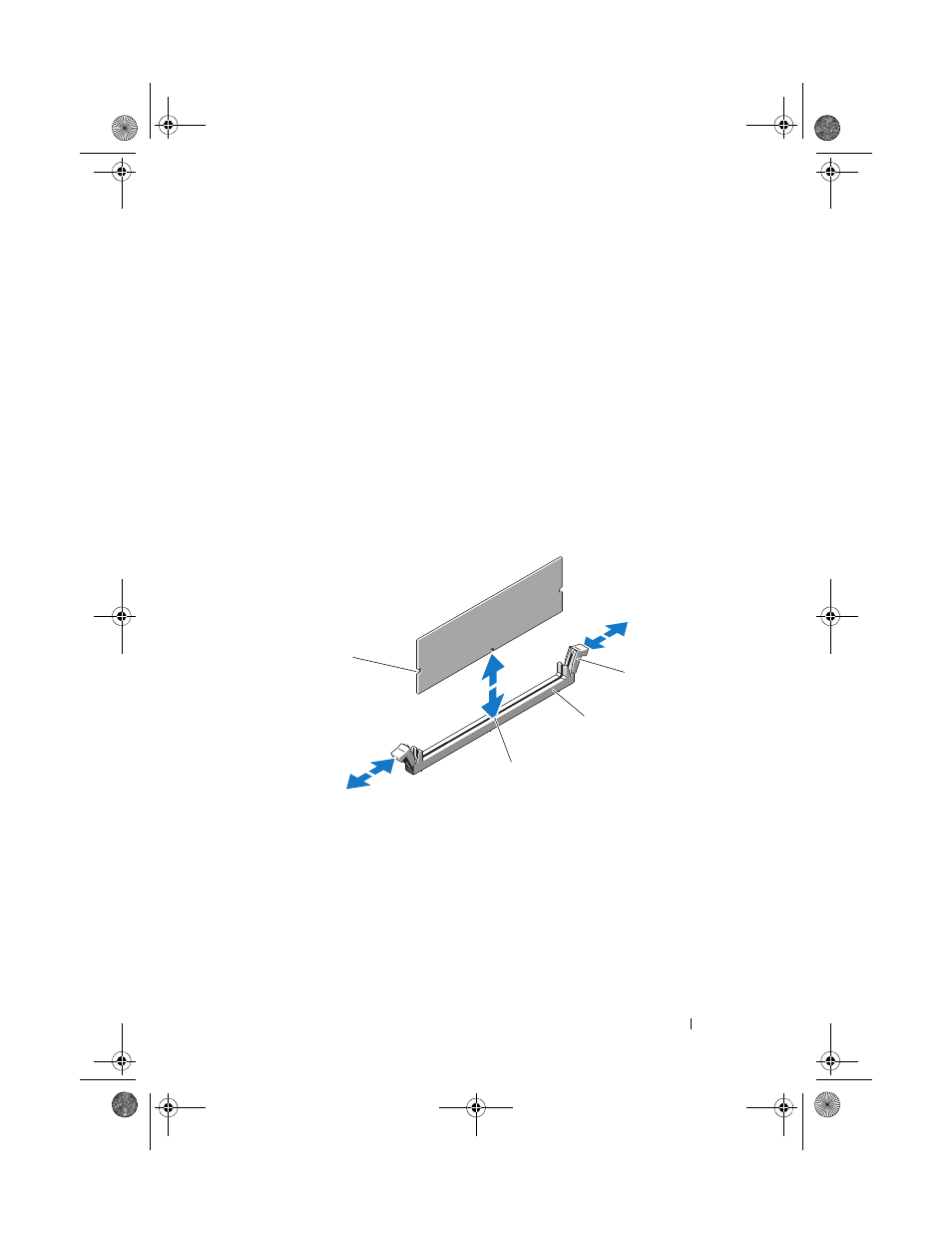

Figure 3-20. Installing and Removing a Memory Module
6 Pull up on the securing clips to lock the module into place.
If you insert the module correctly, the securing clips snap into the cutouts
at each end of the module.
1 memory module 2 alignment key
3 connector 4 memory module socket ejectors (2)
4
1
3
2
