Removing and Installing Parts: Dell XPS 710 H2C Edition Service Manual
file:///C|/Preeji_working%20folder/Projects/E-Doc/Dimension%20and%20XPS/xps-710-h2c/SM/parts.htm[3/13/2013 11:45:23 AM]

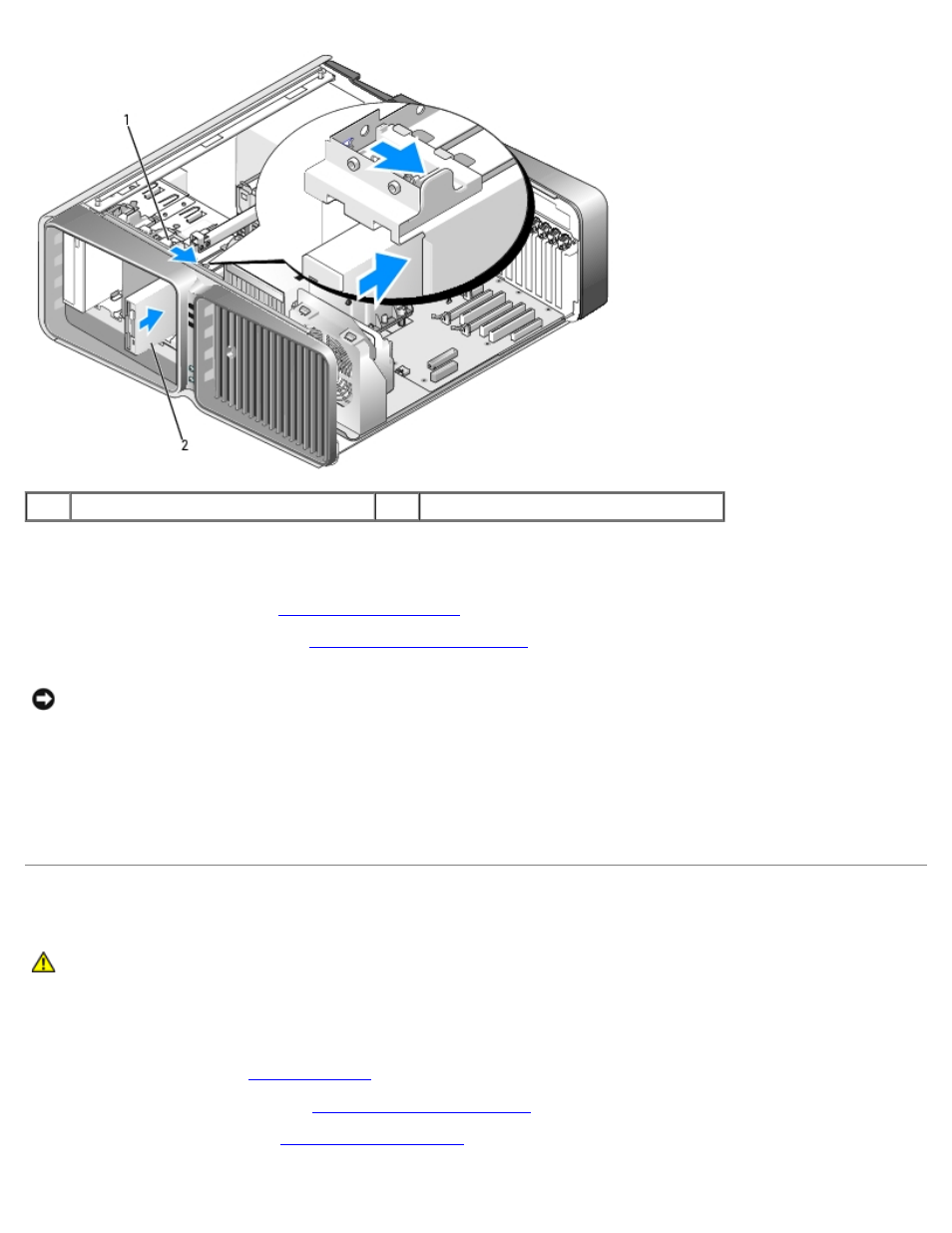

1 drive release latch 2 media card reader
7. Attach the power and data cables to the back of the Media Card Reader.
8. Check all cable connections and fold cables out of the way to avoid blocking airflow between the fan and cooling vents.
9. Replace the drive panel (see Replacing the Drive Panel ).
10. Replace the computer cover (see Replacing the Computer Cover ).
NOTICE: To connect a network cable, first plug the cable in to the network port or device and then plug it in to the
computer.
11. Connect your computer and devices to their electrical outlets, and turn them on.
See the documentation that came with the drive for instructions on installing any software required for drive operation.
12. Enter system setup (see Entering System Setup) and select the appropriate USB for FlexBay option.
CD/DVD Drive
CAUTION: Before you begin any of the procedures in this section, follow the safety instructions in the
Product Information Guide.
Removing a CD/DVD Drive
1. Follow the procedures in Before You Begin .
2. Remove the computer cover (see Removing the Computer Cover ).
3. Remove the drive panel (see Removing the Drive Panel ).
