About Your XPS Computer
Dell™ XPS™ 710 H2C Edition Service Manual
Front View
Back View

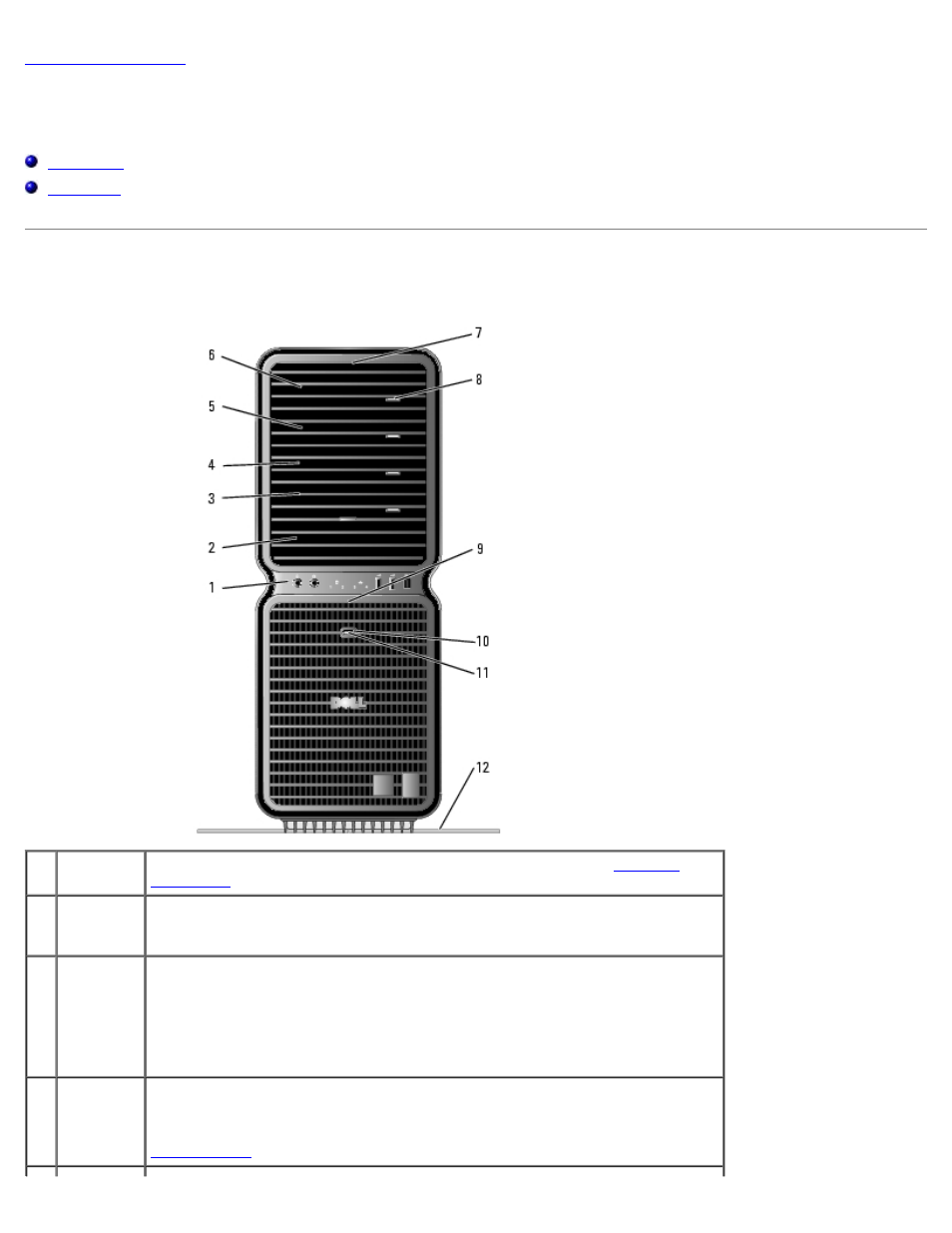

Front View
1 front I/O
connectors
Plug USB and other devices into the appropriate connectors (see Front I/O
Connectors ).
2 3.5-inch
drive bays
(2)
Can hold an optional Media Card Reader or floppy drive.
3-
6
5.25-inch
drive bays
(4)
Can hold a CD/DVD drive, or a SATA hard drive in a 5.25-inch drive bay
carrier.
NOTE: The hard-drive carrier is only for use in the 5.25-inch drive bays. The
floppy-drive/Media Card Reader and hard-drive carriers are not
interchangeable.
7 front panel
LEDs (4)
Multi-colored lights provide illumination for the front of the computer.
NOTE: The color of the front panel LEDs can be adjusted in system setup (see
System Setup ).
