Dell XPS 710 H2C User Manual
Page 40
Removing and Installing Parts: Dell XPS 710 H2C Edition Service Manual
file:///C|/Preeji_working%20folder/Projects/E-Doc/Dimension%20and%20XPS/xps-710-h2c/SM/parts.htm[3/13/2013 11:45:23 AM]
1
power cable
2
data cable

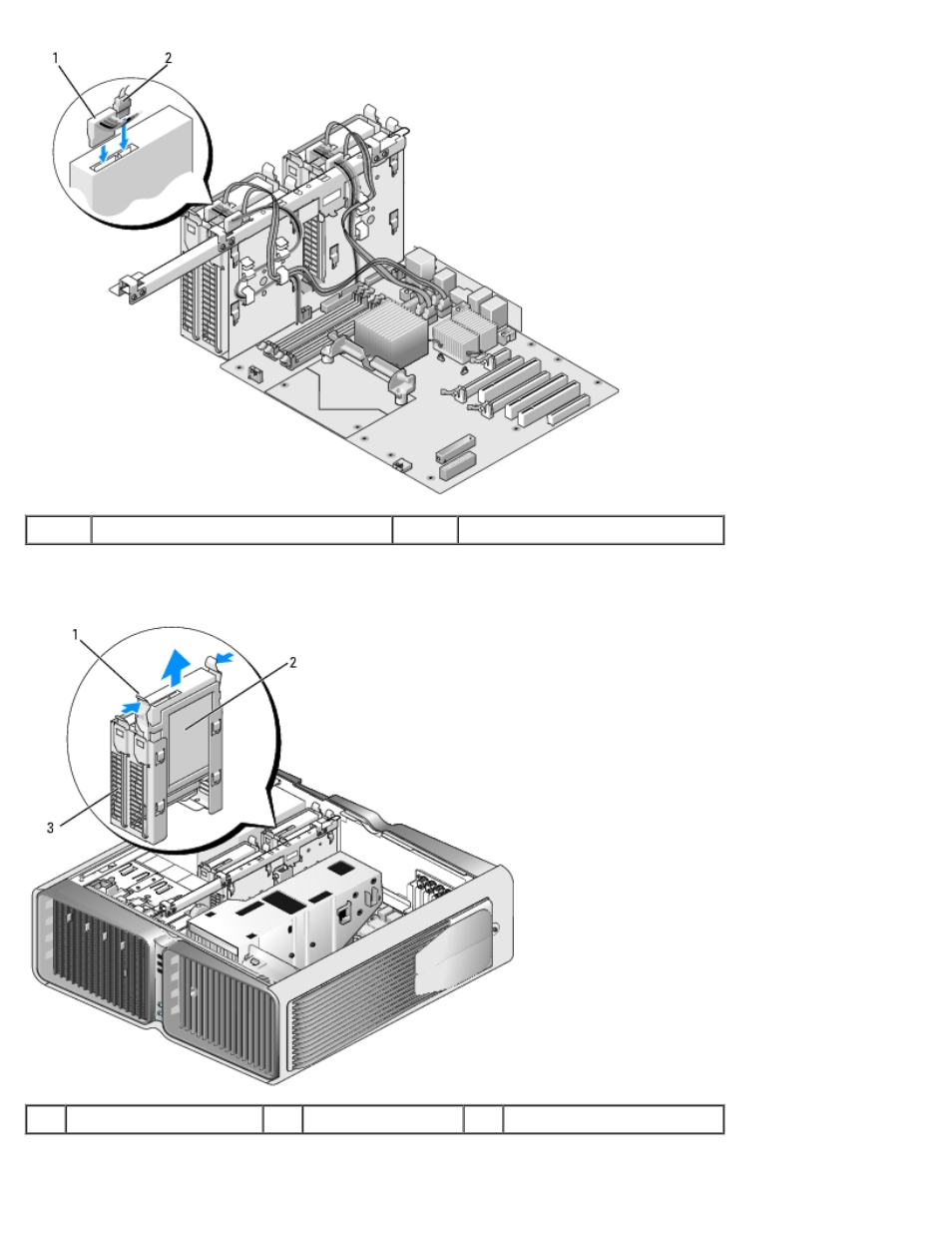

4. Press the blue tabs on each side of the hard-drive bracket toward each other and slide the drive up and out of the
hard-drive bay.
1
blue tabs (2)
2
hard drive
3
hard drive bay
5. Ensure that all connectors are properly cabled and firmly seated.
