Clearing Jams

Identifying the Location of Paper Jams

WARNING:

Do not attempt to clear any jams using tools or instruments. This may permanently damage the printer.

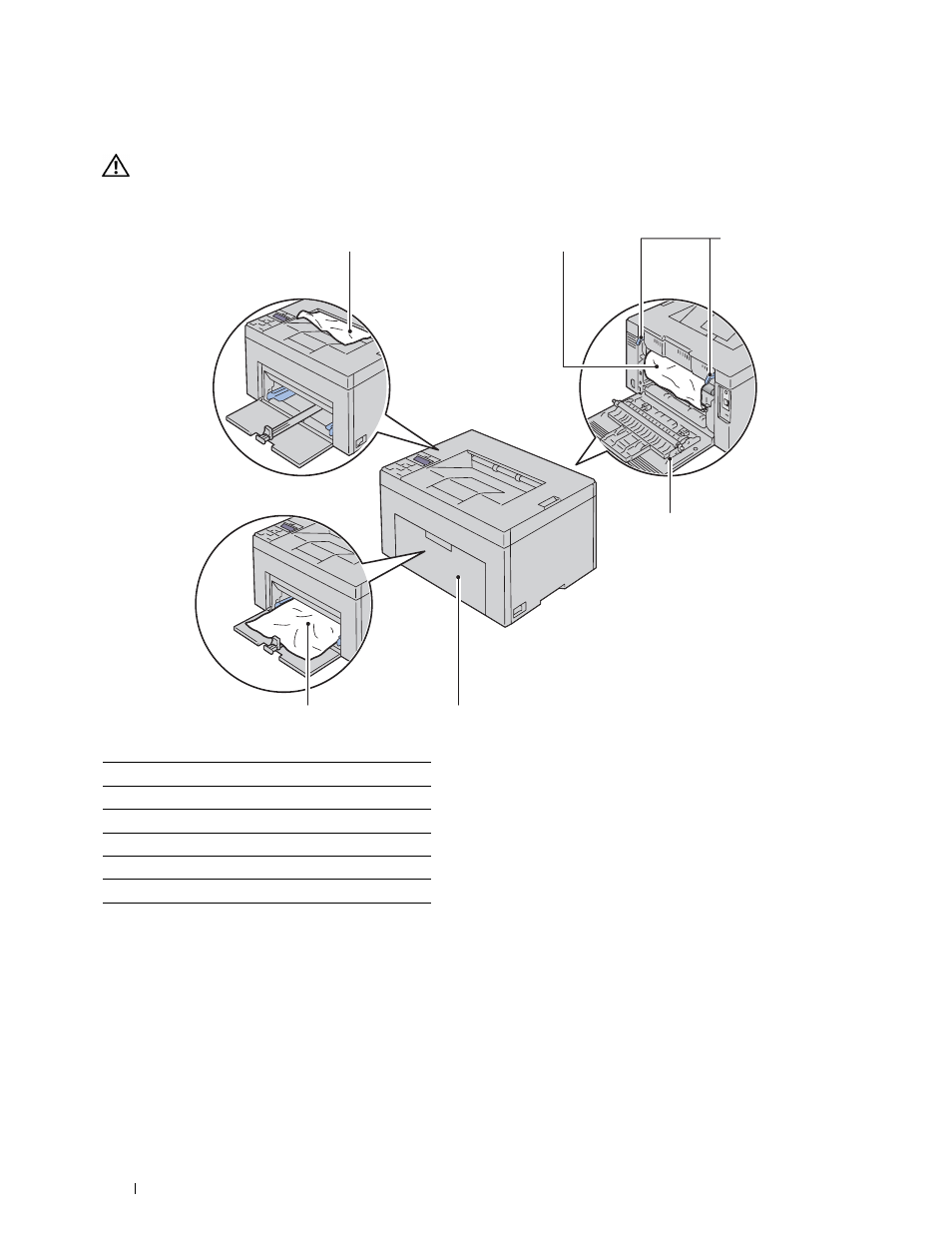

The following illustration shows where paper jams may occur along the print media path.

1

Output Tray

2

Fusing Unit

3

Levers

4

Rear Cover

5

Front Cover

6

Multipurpose Feeder (MPF)

1

2

3

6

5

4
