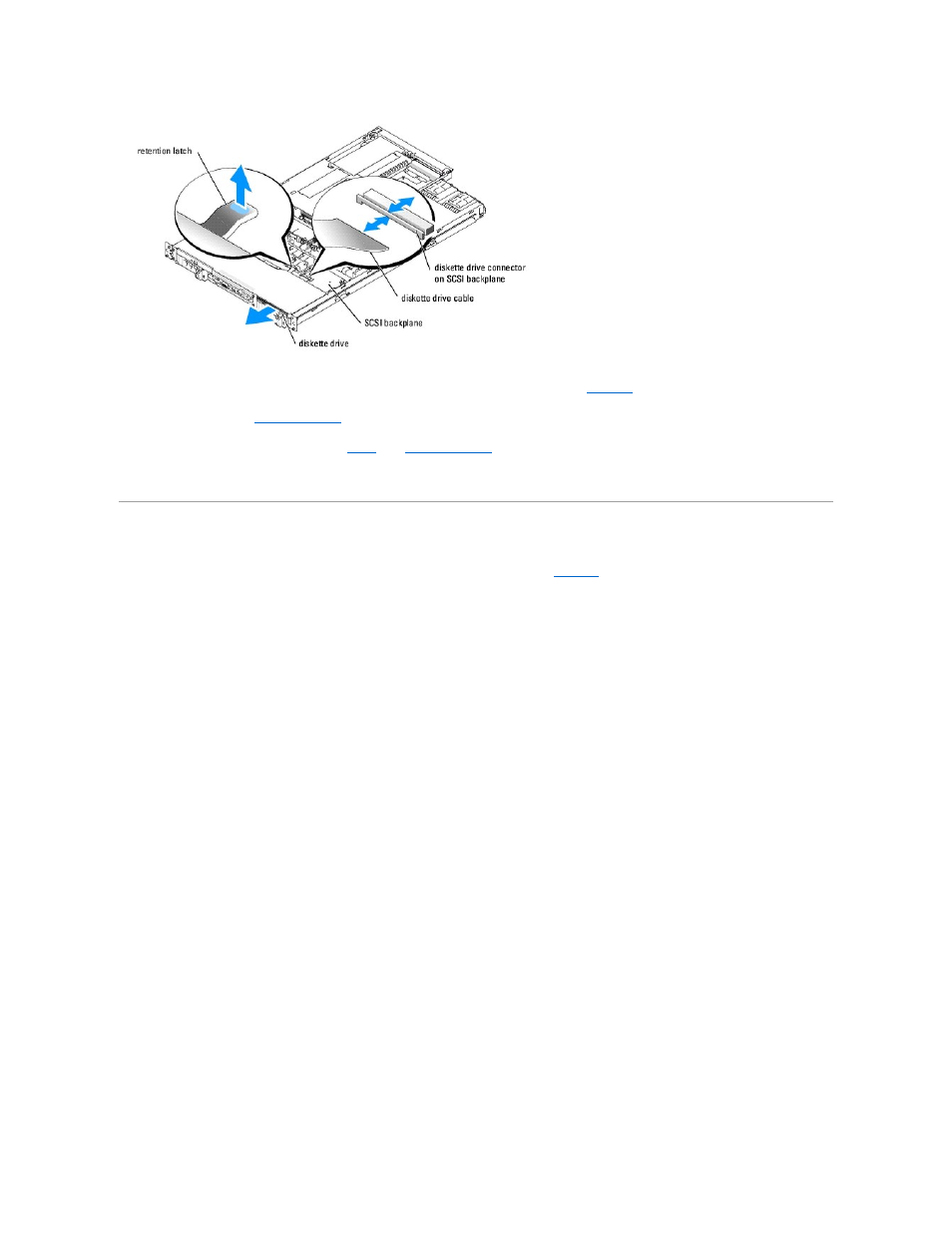

7. Connect the diskette drive data cable to the diskette drive connector on the SCSI backplane. See Figure 7 -3 .
8. Close the system. See " Closing the System " in "Troubleshooting Your System.
9. Replace the front bezel, if it was removed in step 2 . See " Closing the System " in "Troubleshooting Your System."
10. Reconnect the system and peripherals to their electrical outlets.
Installing a Diskette or Optical Drive in a Drive Carrier
1. Noting its location on the carrier, slide the U-shaped wire from the back of the carrier. See Figure 7 -4 .
2. Spread the sides of the carrier slightly apart and remove the filler plate or drive.
3. If you are installing an optical drive, fit the drive interposer board onto the back of the carrier.
4. Fit the drive into the carrier.
5. Fit the U-shaped wire onto the drive carrier.
Figure 7-4. Installing and Removing a Drive from the Drive Carrier
