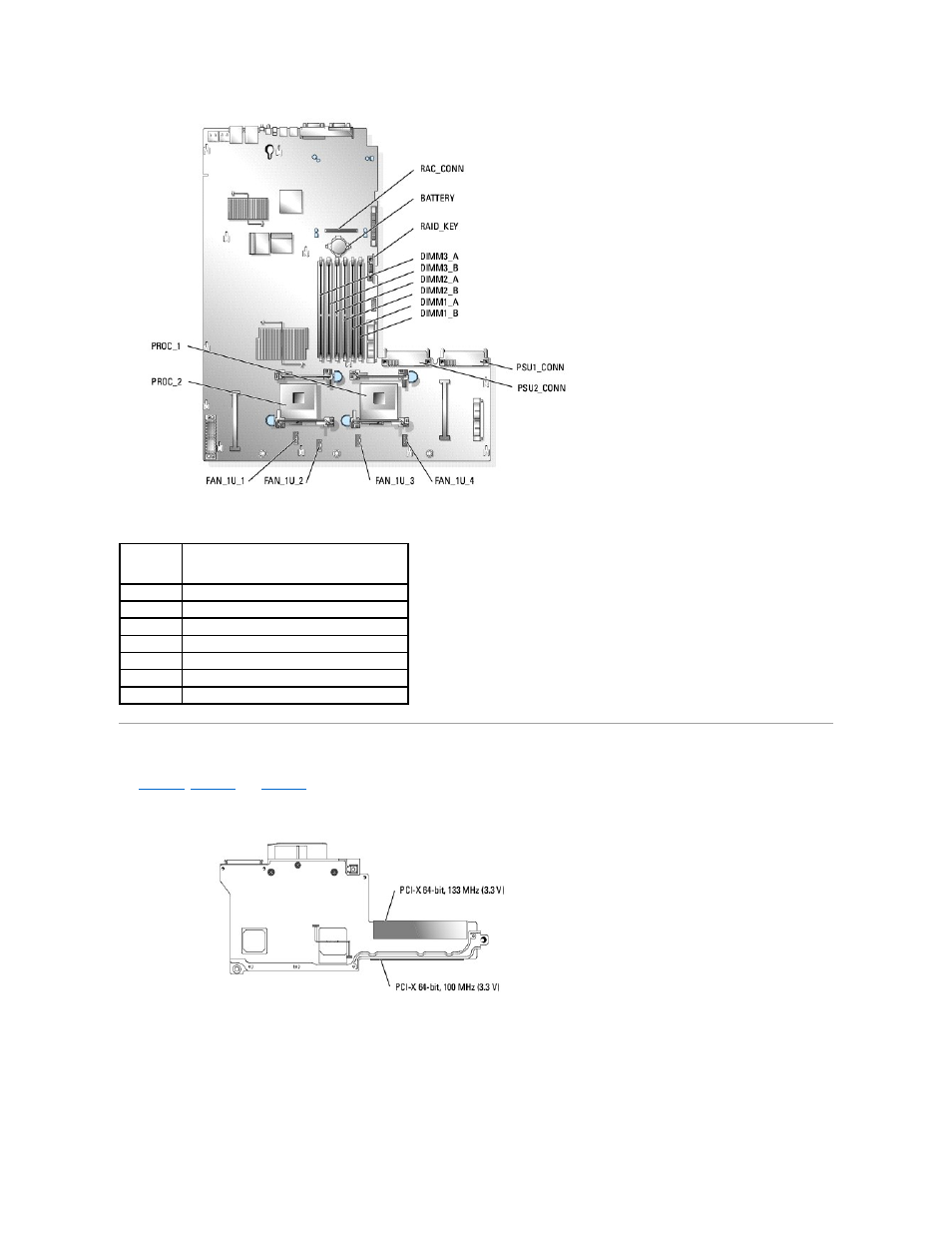

Table A-2. System Board Connectors



Riser Board Connectors

See

Figure A

-4

,

Figure A

-5

, and

Figure A

-6

for the location and description of the riser card connectors.



Figure A-4. Standard PCI-X Riser Card



Figure A-5. Optional ROMB PCI-X Riser Card (when available)



Connector



Description

BATTERY

Connector for the 3.0 V coin battery

DIMMn_ x

Memory module connector (6)

FAN_1U_n

Fan module power connector (4)

PROC_n

Processor connector (2)

PSUn_CONN Power supply connector (2)

RAC_CONN

Connector for the remote access controller (RAC)

RAID_KEY

Connector for the optional RAID key
