CANON Digital Galvano Scanner System GM-1000 Series
Users Manual 1.20
18

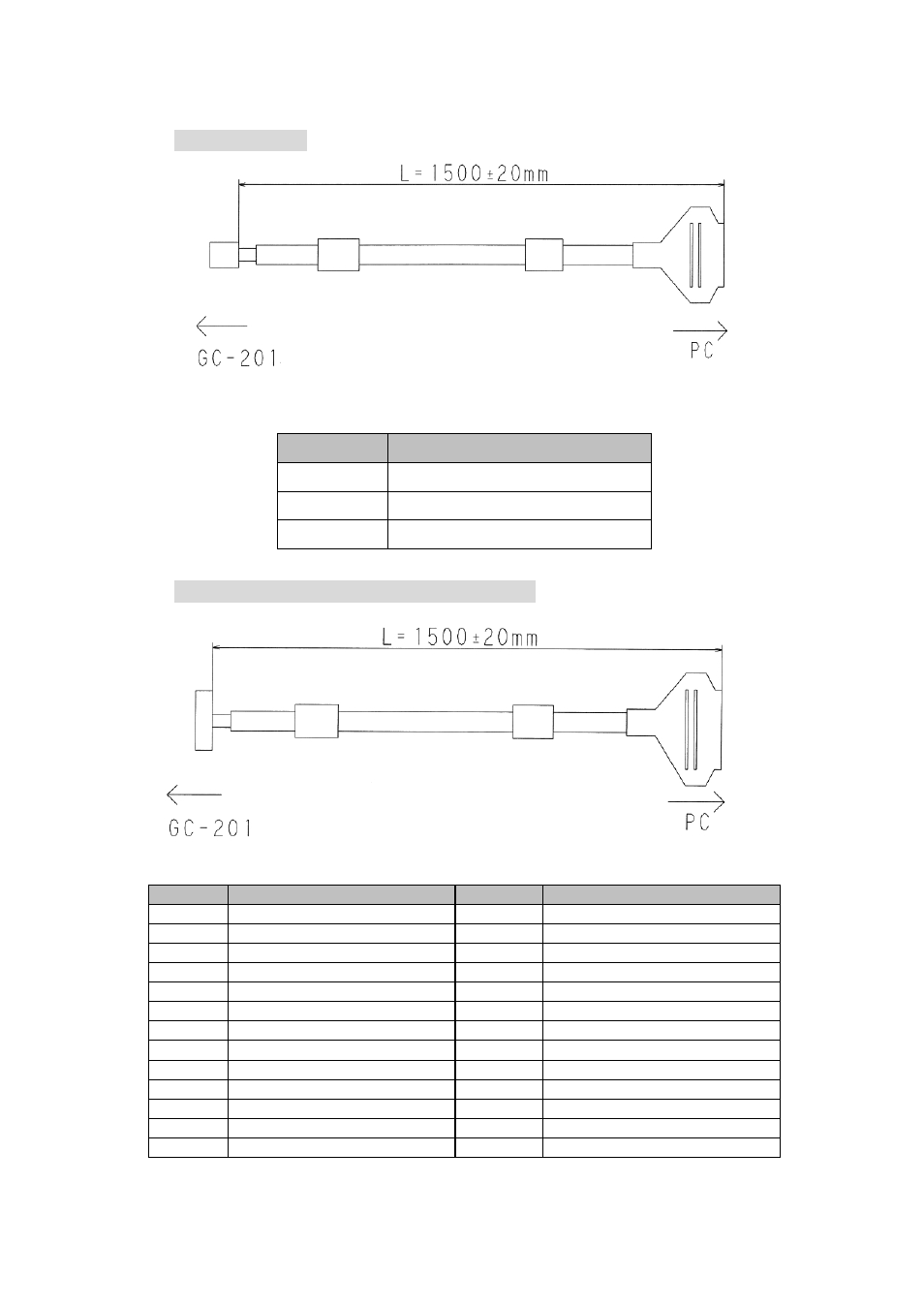

③ RS-232C Cable
PC side (D-sub 9 pin)
Pin Signal
2 RX
3 TX
5 GND
④ High-Speed Serial Communication Cable
PC side (D-sub 25pin)
Pin Signal Pin Signal
1 Clock - 14 Clock +
2 FS - 15 FS +
3 Data (Axis 1) - 16 Data (Axis 1) +
4 Data (Axis 2) - 17 Data (Axis 2) +
5 Do not connect 18 Do not connect
6 Status - 19 Status +
7 Do not connect 20 Do not connect
8 Do not connect 21 Do not connect
9 Do not connect 22 Do not connect
10 Do not connect 23 GND
11 GND 24 GND
12 Do not connect 25 Do not connect
13 Do not connect
