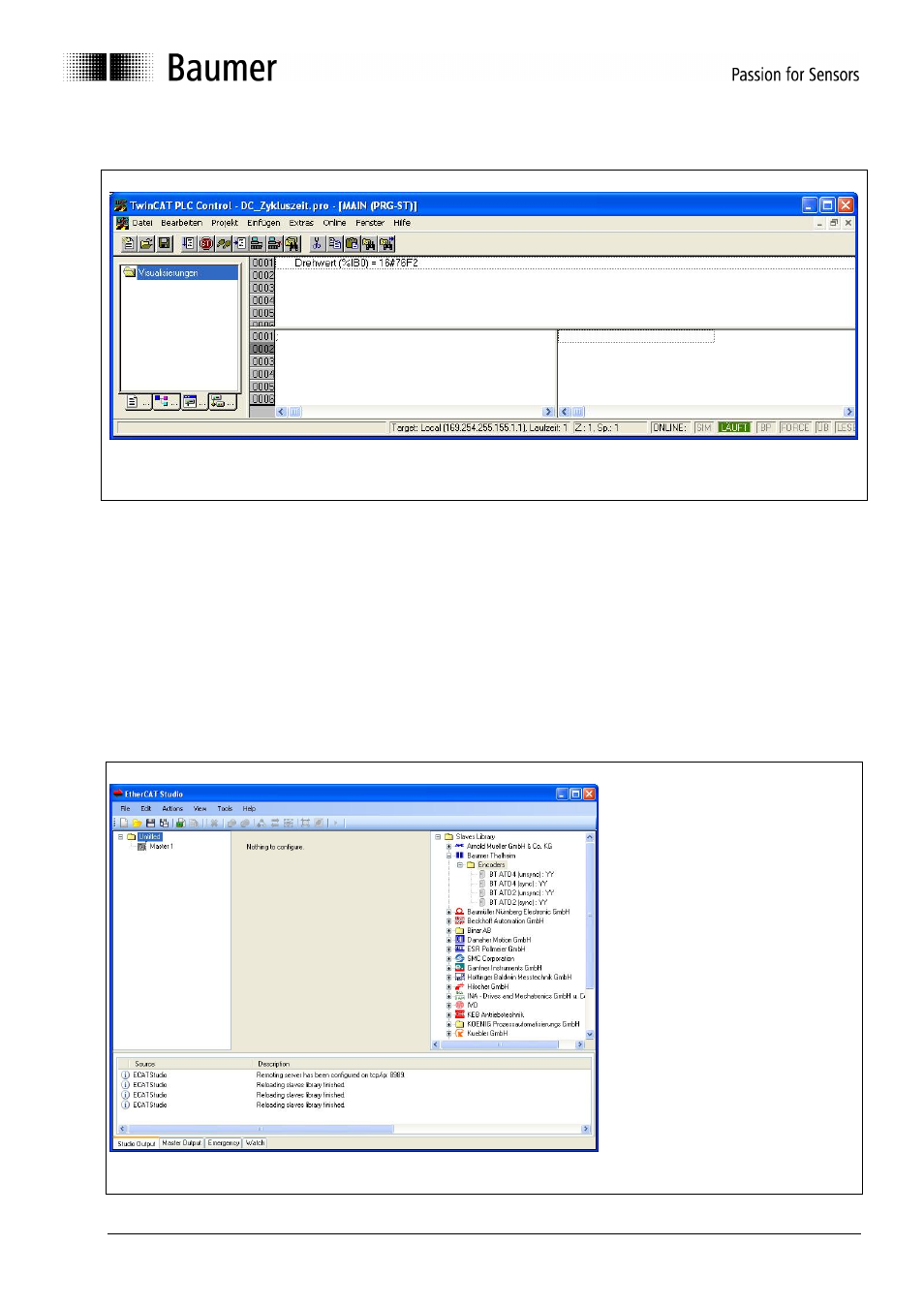

Start the PLC Task.

HINT : If no PLC Task is started the TwinCAT System Manager will start cyclic data transfer e.g. Position
Values will not be updated by the encoder.

System Set up with CAT Studio.NET Software

In this chapter a short description of device operation with a generic office PC environment using the KPA
ECAT Studio.NET and the ECAT Master Win 32 software follows.
System setup:

standard 3 GHz DELL office PC
D-Link Fast Ethernet Adapter
EtherCAT Studio Version 1.9.16.0 with internal Master 1.3.41.0

8.1 Frame Synchronous Mode

On start Window Press Shift+M to create anew Master

After this right mouse click on Master icon: choose Attach master.
