NE215
7.9 Operating Plan

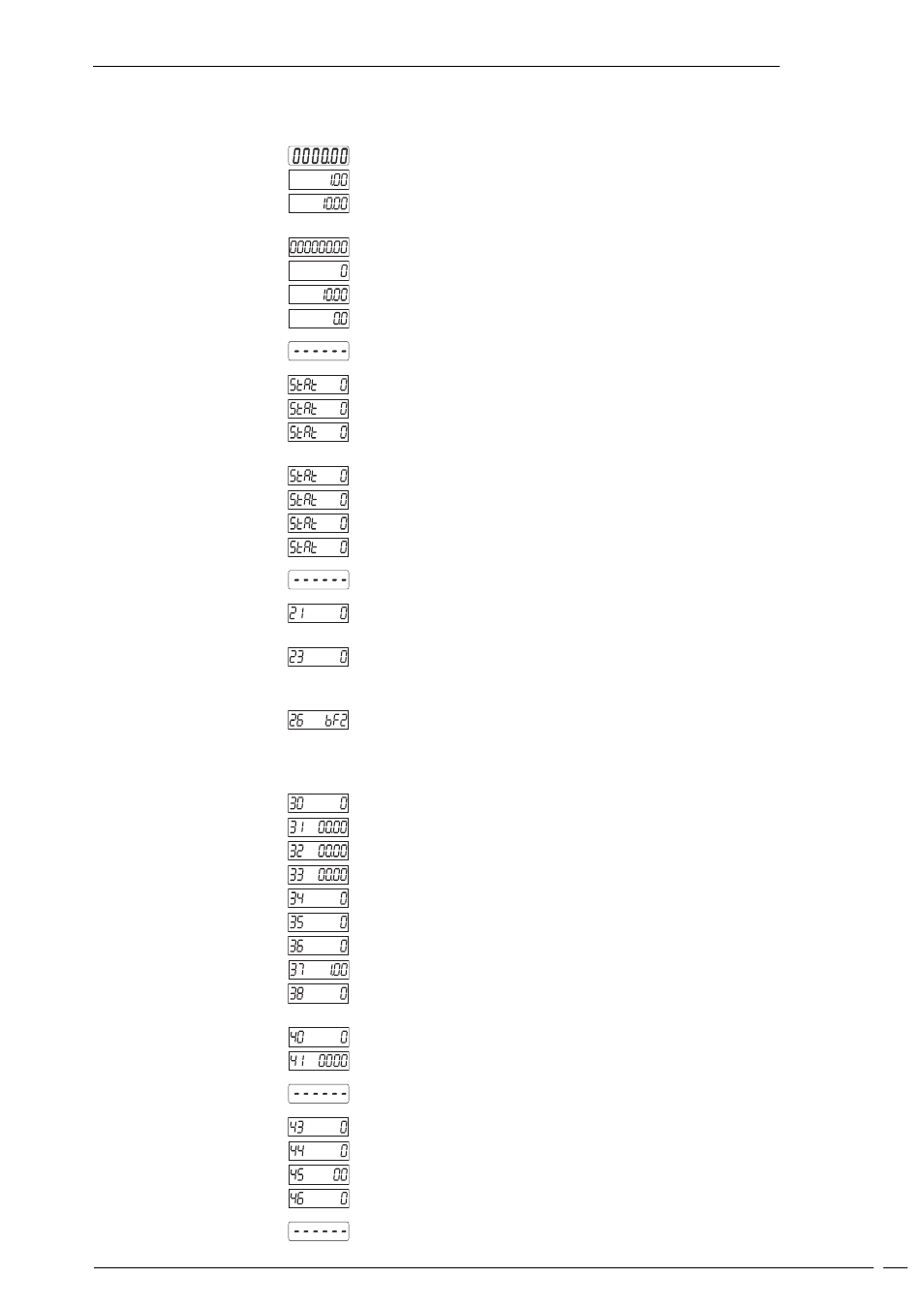

Line Display Short description
01 Preselection counter XP
02 Preselection 1
03 Preselection 2
Not applicable
05 Totalizer
06 Batch counter
07 Preselection batch counter
08 Time meter
10 Separating line
11 Status of preselection counter XP
12 Status of preselection 1
13 Status of preselection 2
14 Not applicable
15 Status of totalizer
16 Status of batch counter
17 Status of batch counter preselection
18 Status of time meter
20 Separating line
21 Operating mode main counter
22 Not applicable
23 Scaling factor batch counter
24 Not applicable
25 Not applicable
26 Frequency batch counter counting input
27 Not applicable
28 Not applicable
29 Not applicable
30 Reset batch counter
31 Output time P1
32 Output time P2
33 Output time P3
34 Take-over of preselections P1, P2, P3
35 Address of function key
36 Function of batch counter
37 Impulses per unit of tachometer
38 Selection of time base for the tachometer functions
39 Not applicable
40 Operating time counter input
41 Code setting
42 Separating line
43 Baud rate
44 Parity
45 Address
46 Stop bits
47 Separating line
Open interface description
