NE215 Programming mode
Programming segment 2
In the second programming segment, the message STAT appears in
the display, signifying status selection.
● appears in the display. The LED for the corresponding
operating parameter flashes.
Significance of status numbers
0 Full access for operator (read and alter parameters).
1 Restricted access for operator (read parameters only).
2 None access for operator (No altering, no reading of parameters).
To change status Input the appropriate status number.
● The changed status will automatically be stored when the next
programming line is selected.
Press the key again.

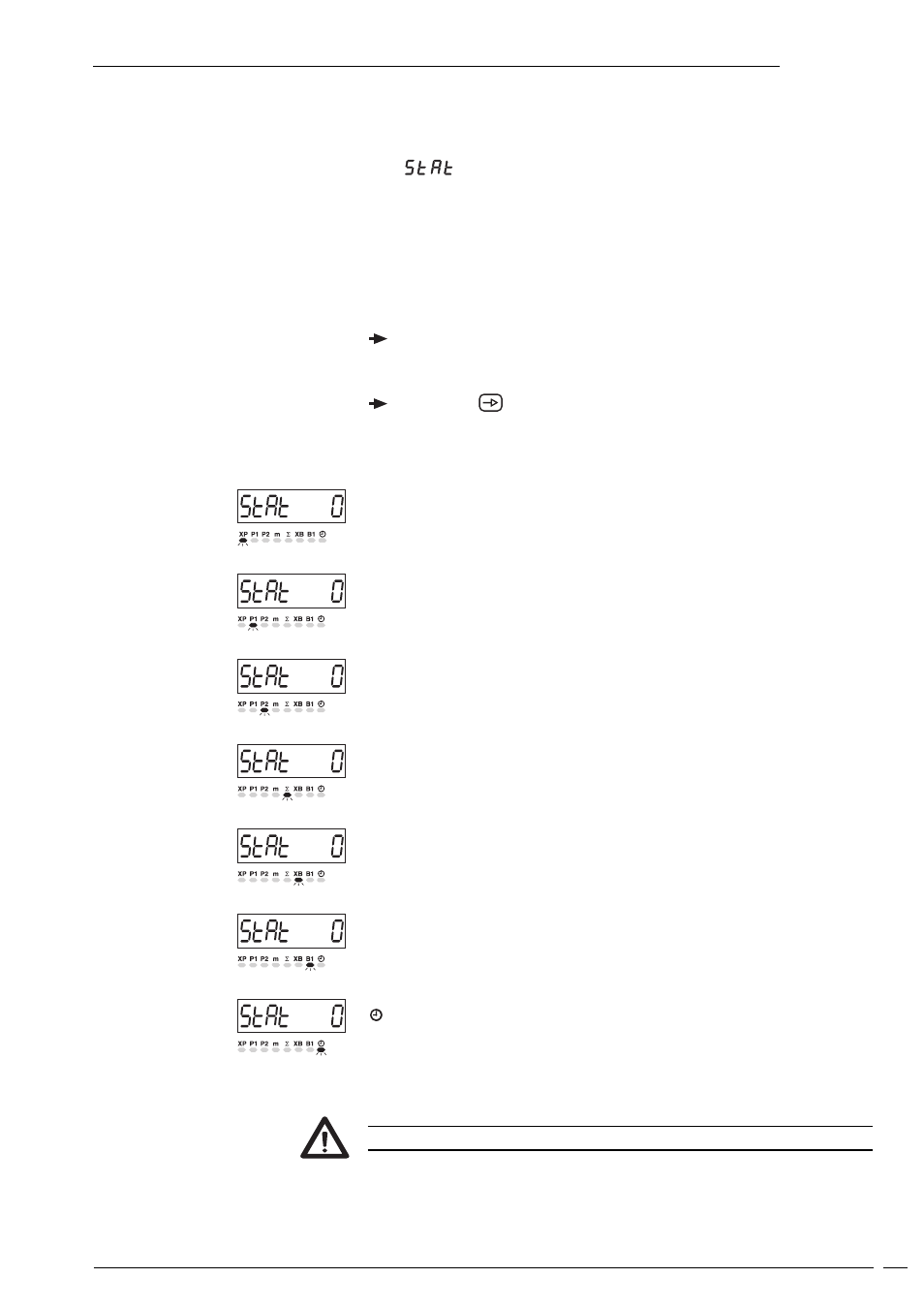

● The status of each individual operating parameter is called up in
sequence.
Line 1 XP - Main counter status
Line 2 P1 - Preset value 1
Line 3 P2 - Preset value 2
Line 4
∑
- Totalizer
Line 5 XB - Secondary counter status
Line 6 B1 - Secondary counter preset value
Line 7 - Time meter
● At the conclusion of the first programming segment, a broken
line appears in the display.
The default operating parameter status is zero.
