Ethernet/Cresnet Interface: CEN-CN Operations Guide - DOC. 5721
SIMPL™ Windows
®
Example Program
SIMPL (Symbol Intensive Master Programming Language) is an easy-to-use
programming language that is completely integrated and compatible with all
Crestron system hardware. The objects that are used in SIMPL are called symbols.
SIMPL Windows offers drag and drop functionality in a familiar Windows®
environment.
SIMPL Windows is Crestron's software for programming Crestron control systems.
It provides a well-designed graphical environment with a number of workspaces
(i.e., windows) in which a programmer can select, configure, program, test, and
monitor a Crestron control system.
NOTE: SIMPL Windows is not required directly by the CEN-CN. However, the
version listed in “Leading Specifications” on page 4 is required by the host control
system to support the CEN-CN. The example program is loaded into the host control
system which adds the CEN-CN as a device to the Cresnet system.
An example program (illustrated below) is available from the Downloads page
(EXAMPLES Library) of Crestron’s website (
www.crestron.com) . Search for
CenCnEx.ZIP that contains CEN-CN-EXAMPLE.SMW, associated macros required
to complete the program, and a README.TXT file that describes the example
program. Refer to the documentation supplied with the control system for
programming information.

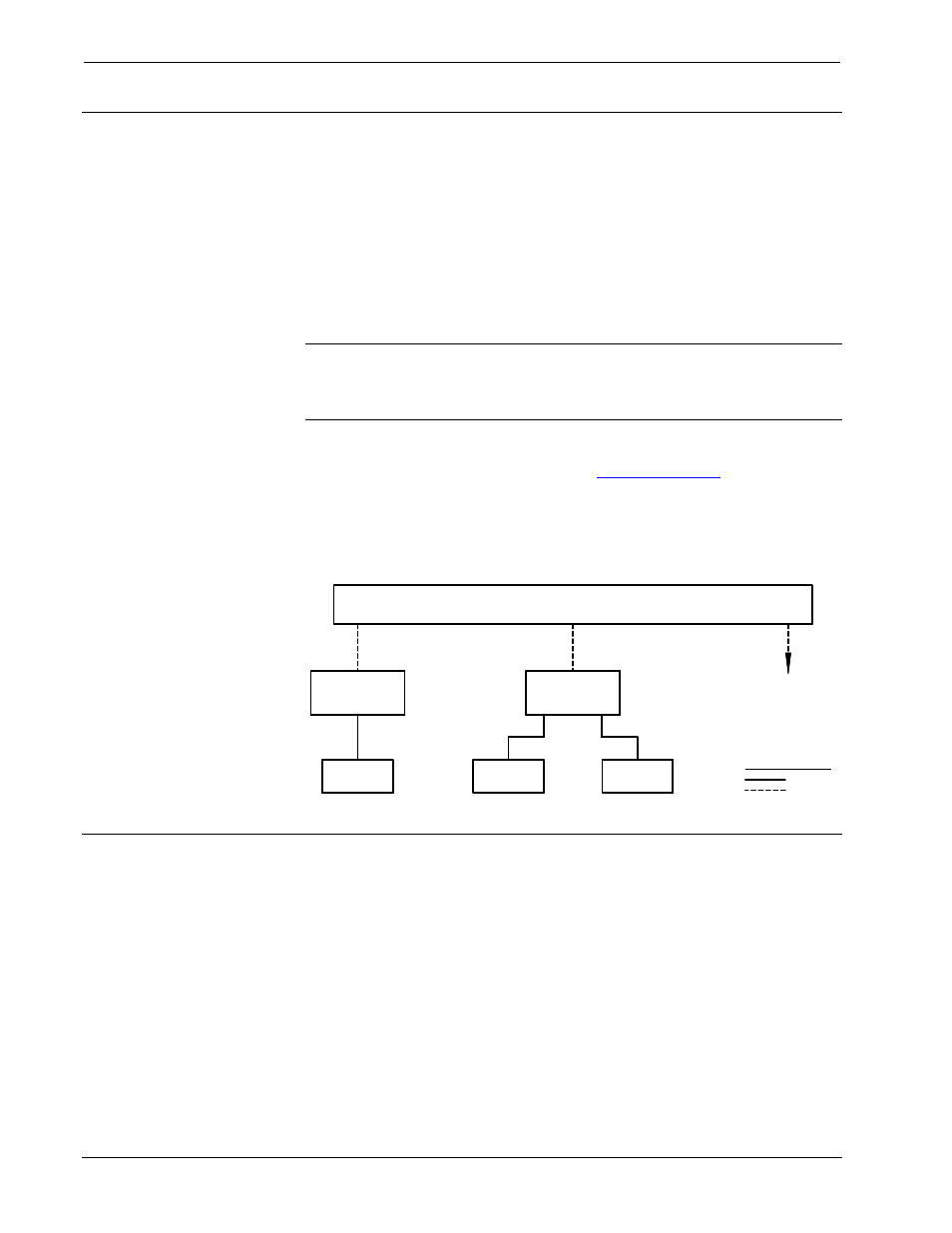

Example Program Wiring and Configuration
VT-3500
NET ID 03
VT-3500
NET ID 04
VT-3500
NET ID 03
ETHERNET HUB
UPLINK TO
REST OF
ETHERNET
CRESNET
ETHERNET
WIRING LEGEND
CEN-CN
192.168.1.2
CNMSX-PRO
192.168.1.1
Problem Solving
Troubleshooting
The table shown on the next page provides corrective action for possible trouble
situations. If further assistance is required, please contact a Crestron customer
service representative.
