ADS Enigma/Enigma-Compact/Enigma-hyQ User Manual

69

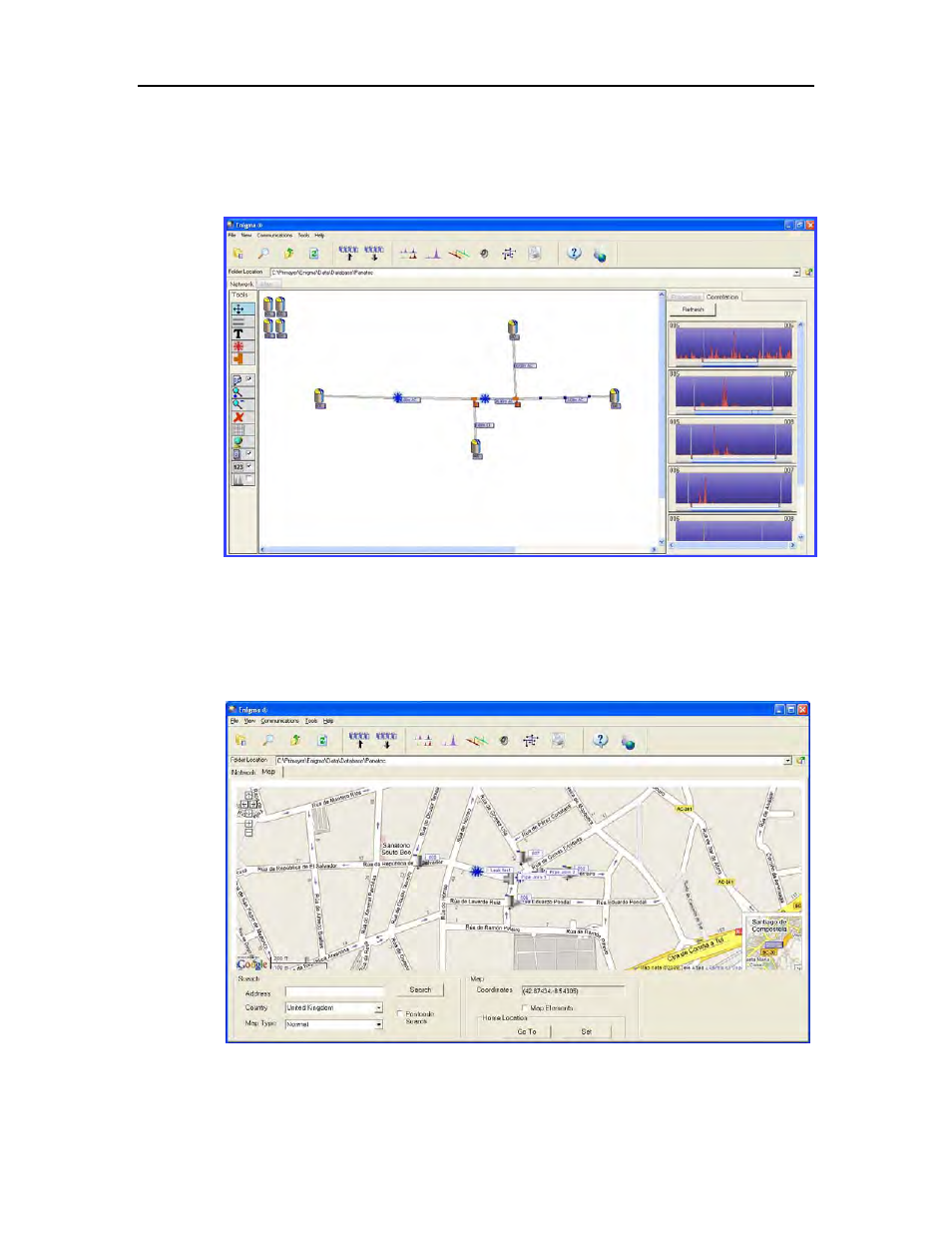

Correlation Tab

Clicking on the Correlation tab displays the correlations. If the correlations
do not display, click on the Refresh button to refresh the display. Double-
clicking a correlation displays the full analysis on the left side of the screen.

Displaying correlations at right

Map Tab

Clicking on this tab using a computer connected to the Internet launches
Google Maps

for the map background.

Map tab

Position the map on the screen as required.
