ADS Enigma/Enigma-Compact/Enigma-hyQ User Manual
56

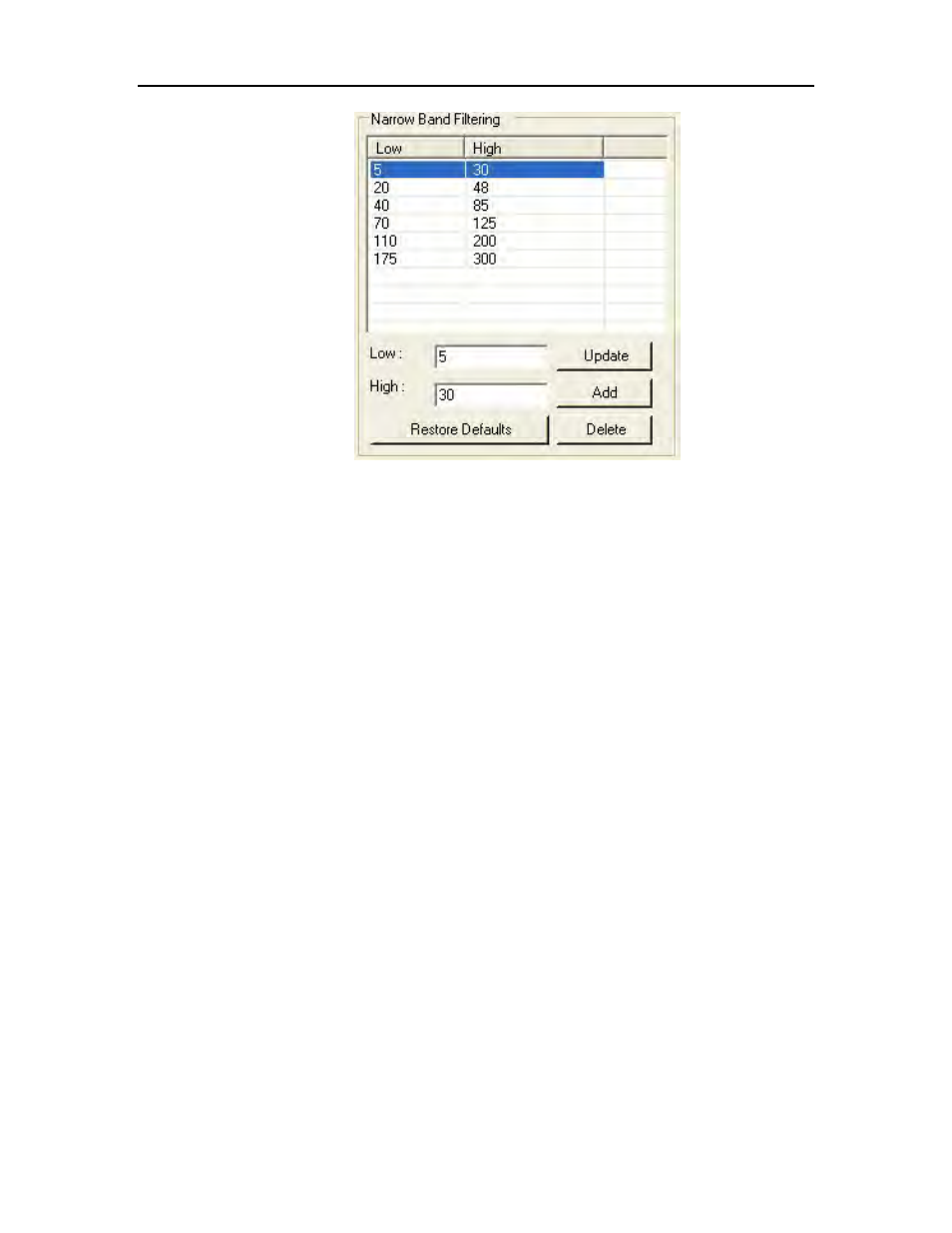

Low and High fields reflect selected (highlighted) filter
Adding a Filter Enter the high and low settings for the new filter
in the High and Low fields below the table, and then click on the
Add button. The new filter settings display on the table.
Deleting a Filter Select the filter on the table for removal, and
then click on the Delete button. The selected filter settings
disappear from view.
Restoring Defaults Click on the Restore Defaults button to
return the filters to the default settings and number of filters. This
eliminates all changes made by the user.
Cancel
Selecting this button cancels the application of filters.
Apply
Selecting this button applies the selected filter parameters to the correlation
data. Applying the filter parameters can take some time, depending on the
quantity of data and the speed of the PC.
Narrow Band Filter tab
The Narrow Band Filter allows the use of several band filters.
