ADS Enigma/Enigma-Compact/Enigma-hyQ User Manual
61

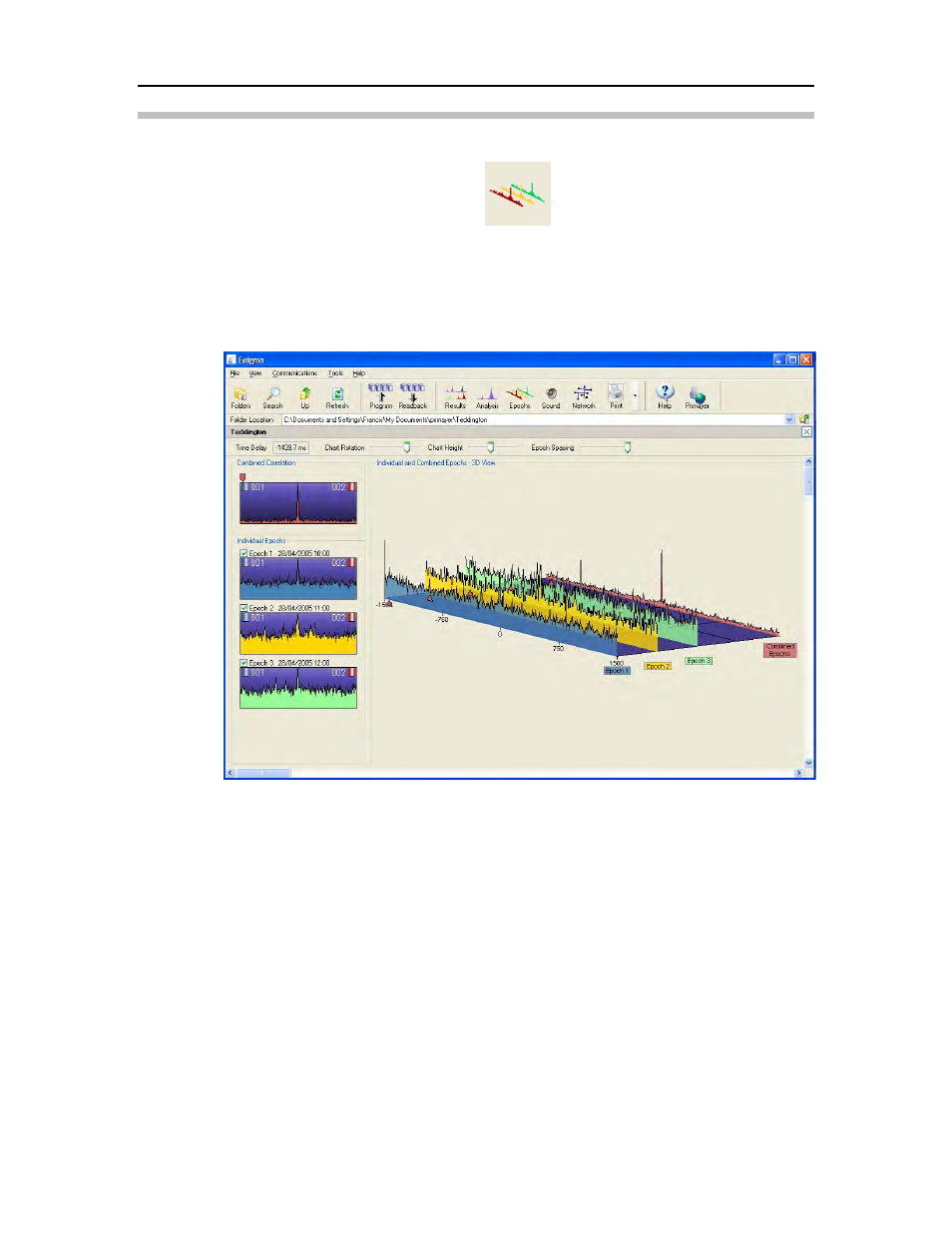

Epochs Button
Selecting this button displays the Epoch screen that displays 2- and 3-
dimensional views of the correlation functions produced in each epoch.
Viewing the epochs is beneficial to determining whether a correlation peak
represents a leak (present in all epochs) or non-leak noise, possibly from
customer water usage (not present in all epochs).
Epochs representation and graphs
This display includes the following functions and features:
Time Delay
Chart Rotation
Chart Height
Epoch Spacing
Combined Correlation
Individual Epochs
