4 NTA907HD
166-207Q 03/29/2010
Introduction
This 9m No-Till Heavy Duty Air Drill has been designed
with care and built by skilled workers using quality mate-
rials. Proper setup, maintenance, and safe operating
practices will help the customer get years of satisfactory
use from the machine.
Models Covered
Description of Unit
The NTA907HD Drill is a pull-type integrated air drill. It
has dual 3500 liter (100 bu) hoppers for separate or
simultaneous delivery of seed and/or granulated dry fer-
tilizer. Each hopper has an independent metering system
with infinite ratio gearboxes. The NTA907HD Drill folds
for narrow transport.
The NTA907HD has double-disk Series 07HD heavy
duty openers, and is suitable for conventional till and,
minimum-till conditions. With optional coulters, the drill is
suitable for moderate no-till conditions.
The NTA907HD may optionally be equipped with brakes,
which work in conjunction with the tractor brakes. Other
options include coulters, markers and auger.
Document Family
Using This Manual
This manual will familiarize you with planning, unloading,
and assembly of this drill. Most operating information is
contained in the Operator manual. It is essential that the
Operator manual (166-207M) and Parts manual (166-
207P) be available during assembly and checkout.
The information in this manual is current at printing.
Some parts may change to assure top performance.
Definitions
The following terms are used throughout this manual.
A crucial point of information related to the preceding topic.
Read and follow the directions to remain safe, avoid serious
damage to equipment and ensure desired field results.
Note: Useful information related to the preceding topic.
Right-hand and left-hand as used in
this manual are determined by facing
the direction the machine will travel
while in use unless otherwise stated.
An orientation rose in some line art
illustrations shows the directions of:
Up, Back, Left, Down, Front, Right.
Assembly and Setup Assistance
To order additional copies of pre-delivery instructions or
operator’s and parts manuals, write to the following
address. Include model numbers in all correspondence.
If you do not understand any part of this manual or have
other assembly or setup questions, assistance is avail-
able. Contact Product Support:
Great Plains Mfg. Inc., Service Department
PO Box 5060
Salina, KS 67402-5060
(785-823-3276)
NTA907HD-3610 9m, 36-row, 25.4cm (10in) spacing
NTA907HD-4875 9m, 48-row, 19.1cm (7.5in) spacing
NTA907HD-6006 9m, 60-row, 15.0cm (5.9in) spacing

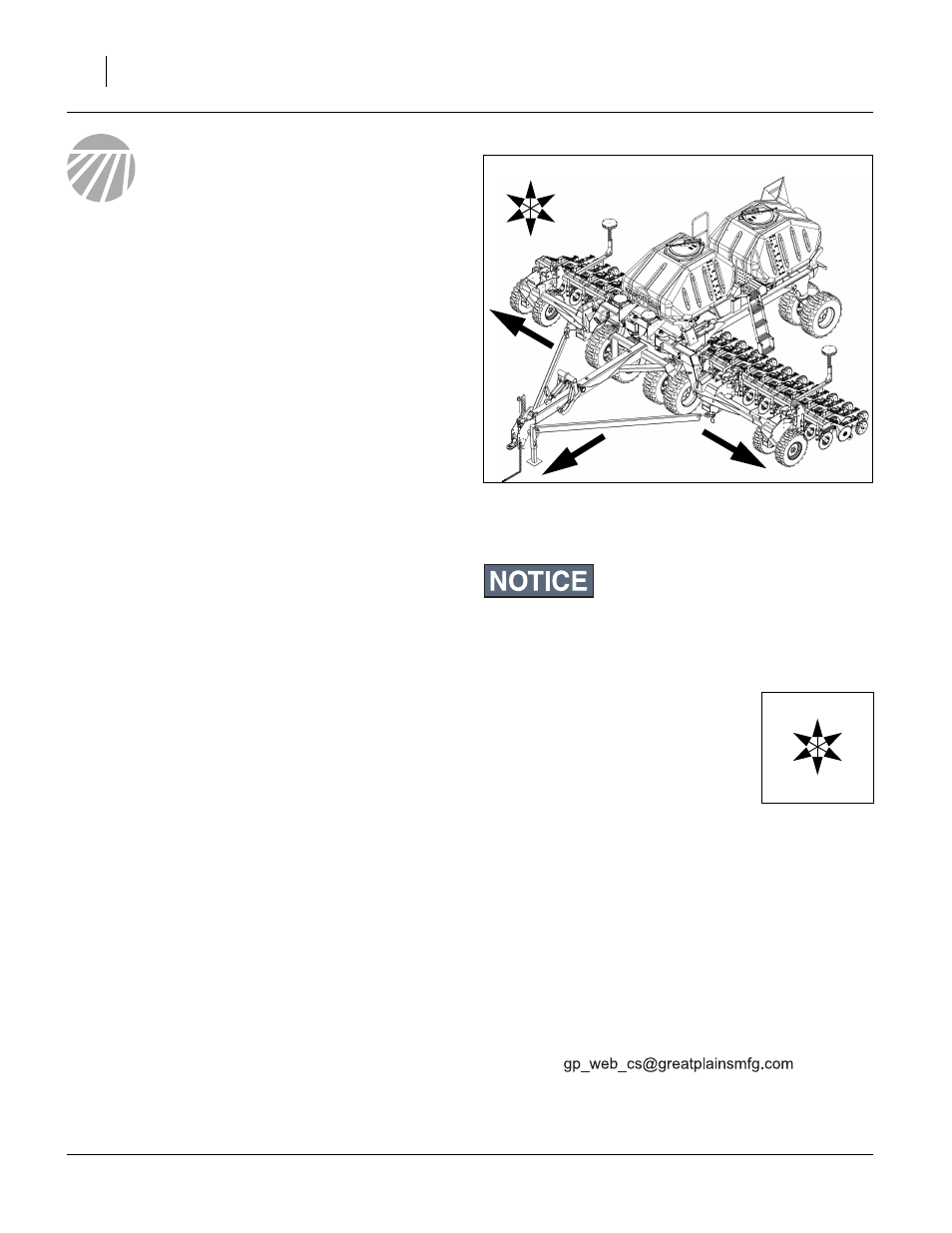

Figure 1
NTA907HD Air Drill
29423
L
R
U
D
F
B
L
R
166-207M Owner’s Manual (this document)
167-085B Seed Rate Charts
166-207P Parts Manual
110011516 DICKEY-john Quick Start Guide
110011375 DICKEY-john Air Cart Control manual
110011440 DICKEY-john 10in Virtual Terminal manual
U
D
F
B
L
R
