Assemble & Install Meters
(see Parts Manual section: Meter Box Assembly)
(see Operator Manual section: Adjustments)

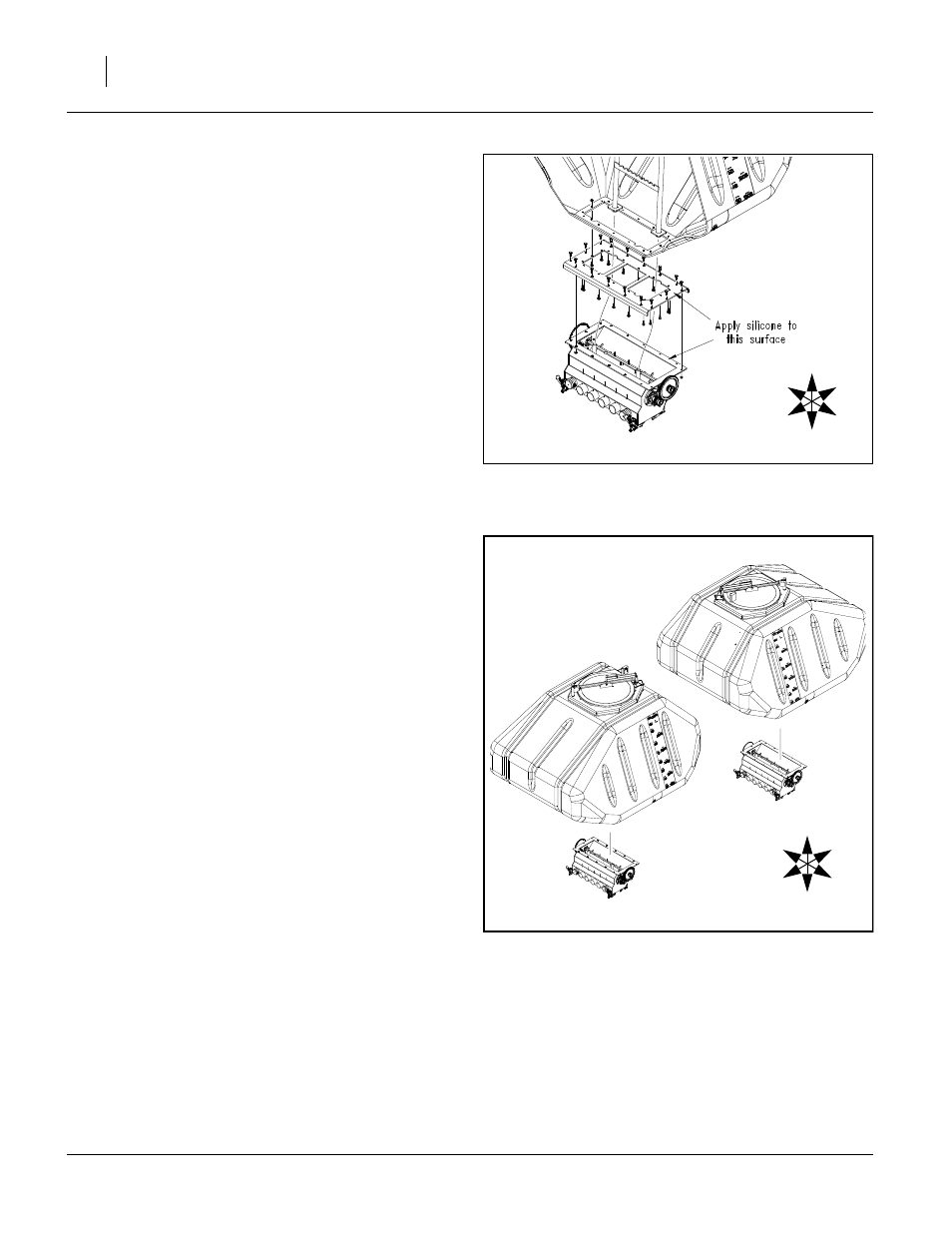

Refer to Figure 56
With silicone sealant provided place adequate amount of
silicone at points indicated in this illustration.
Meters Face Same Direction
Refer to Figure 57
When installing meters pay close attention to the direc-
tion you are placing them in, there is a front and a back
as indicated by the arrows in the direction rose in the
illustration.
The meters are installed facing the same direction, even
though the bins are not, as shown in Figure 57.
Figure 56
Assemble Meters
31106
U
D
F
B
L
R
Figure 57
Meters Face Same Direction
31150
U
D
F
B
L
R
