Assembly 59
03/29/2010 166-207Q
Electric Harness (Monitor)
(see Parts Manual section: Monitor)

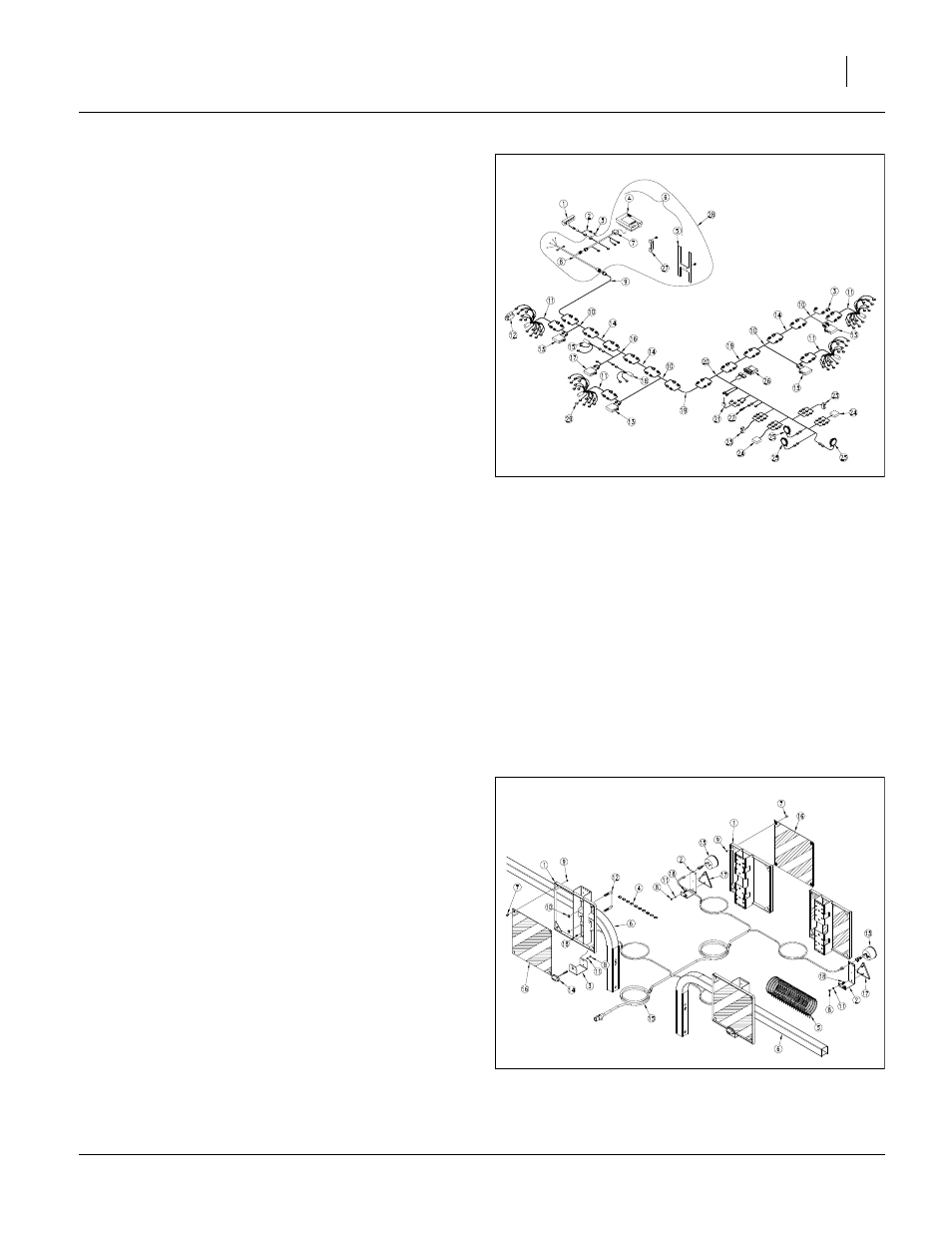

Refer to Figure 108
Locate and install system components as shown on the
diagram on the Quick Start Guide.
Print copy of:
DICKEY-john
®
IntelliAg
®
Quick Start Guide at:
http://www.greatplainsmfg.com/manuals/pdf/nta907qsg.pdf
Types of modules:
WSMT (Working Set Master) main system module -
inputs for bin, RPM, and other sensors.
WSMB-18R (Working Set Member) slave modules to the
master - monitors up to 18 rows.
WSMB-POM (Working Set Member) slave module to the
master - outputs for solenoids.
1. Main harness should be routed down LEFT PULL-
BAR with hydraulic hoses.
2. Route harnesses from module to module as shown
on the Quick Start Guide.
3. WSMB-18R modules should be installed with the
lowest serial number located on the left side of the
drill. This will make it easier to auto configure the
modules later.
4. Make sure harnesses are tied up and out of the way
of any moving parts and have sufficient slack so
wires are not pulled tight.
5. All modules should be mounted so the connectors
are pointed down to prevent moisture ingress.
6. Make sure the CAN terminator is installed on the
end of the right harness.
Refer to Figure 109
Electric (Lights)
see Parts Manual section: International Lights
Figure 108
Electric Harness (Monitor)
29552
Figure 109
Lights
29432
