46 NTA907HD
166-207Q 03/29/2010

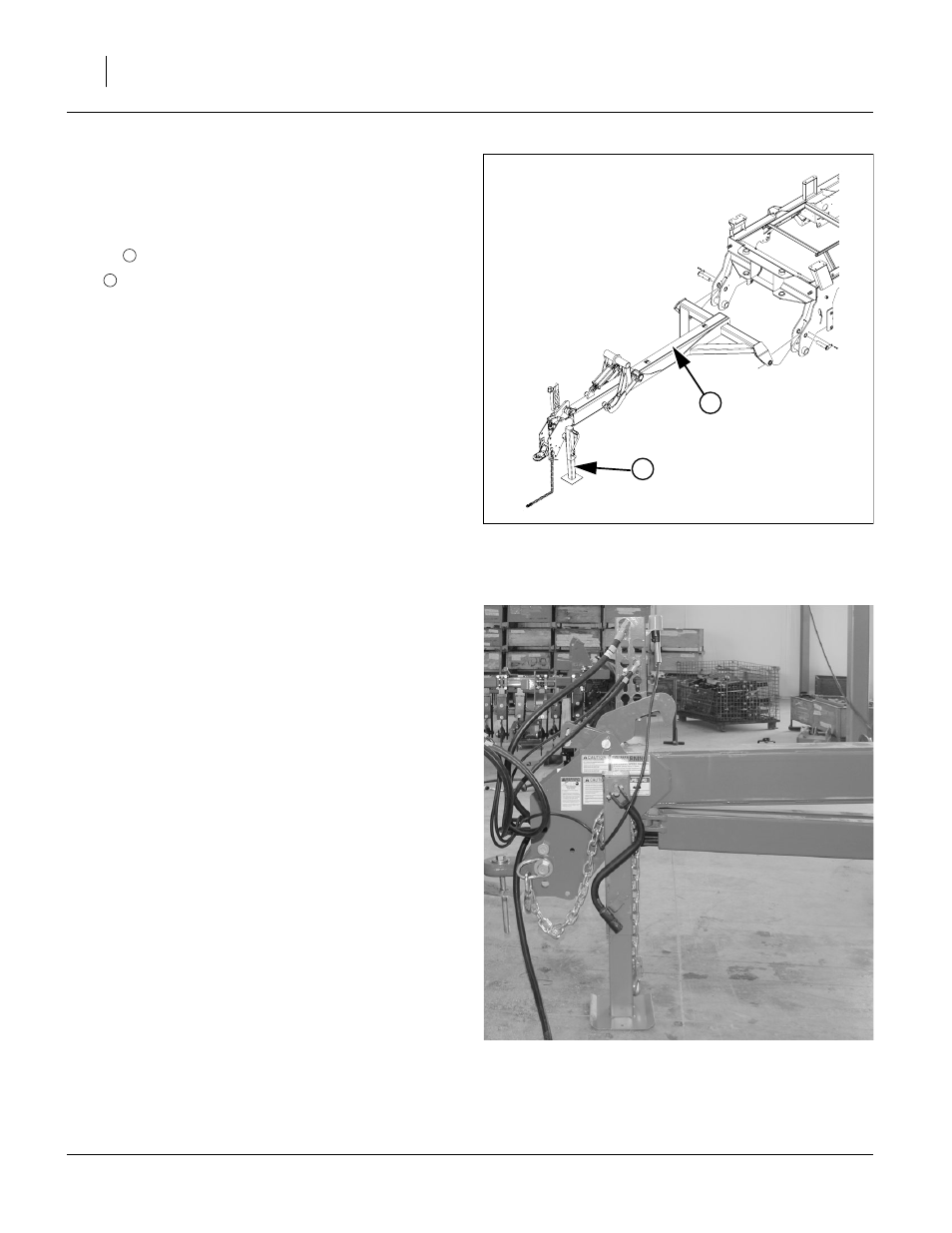

Assemble Tongue and Jack
(see Parts Manual section: Tongue to Frame)
Refer to Figure 81
Tongue
Jack
Parking
(see Operator Manual section: Operating Instructions -
Parking)
Refer to Figure 82
Remove jack from storage position and pin securely to
lifting stob on outside of drill tongue.
Static tongue weight of a folded drill can be as much as
2180 kg (4800 pounds).
Securely block drill tires to prevent jack from sliding.
Figure 81
Assemble Tongue and Jack
31114
2
1
1
2
Figure 82
Parking
29521
