Assemble Wing Towers
(see Parts Manual section: Tramline Mounting)
To mount tower:
1.
Dismount opener spring mount
.
2.
Replace with mount
.
3.
Reattach opener spring using hole
.in mount
.
If wing towers are not placed at specified opener
location on each wing, damage WILL occur. If placed
equidistant from the ends, when wings are folded
they will collide and break.
Wing Tower Placement
10in. row spacing: left wing: 3rd opener spring mount
10in. row spacing: right wing: 6th opener spring mt
7
1
⁄
2
in. row spacing: left wing: 9th opener spring mount
7
1
⁄
2
in. row spacing: right wing: 6th opener spring mount
15cm (6in.) row spacing:left wing:9th opener spring mt
15cm (6in.) row spacing:right wing:6th opener spring mt

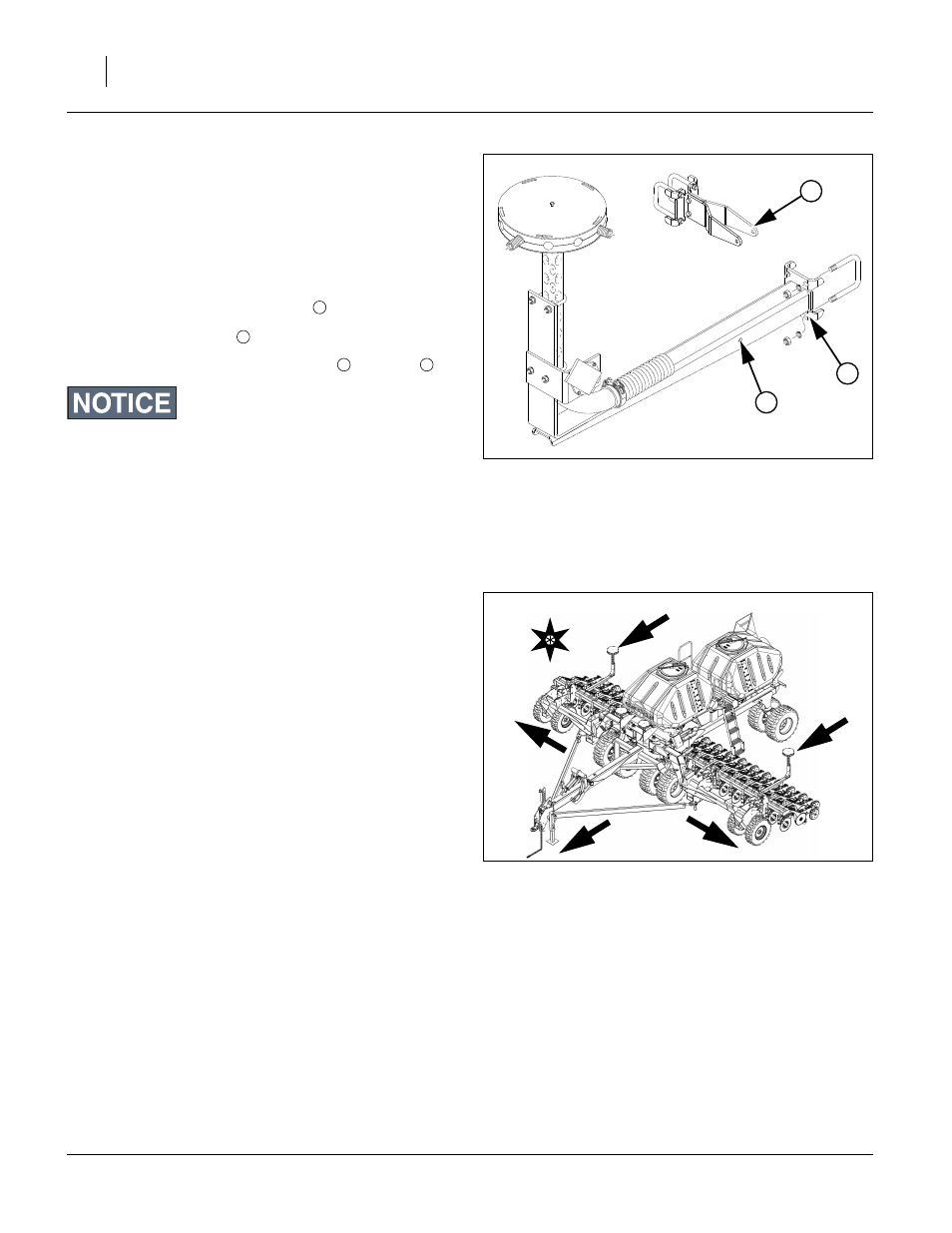

Figure 78
Assemble Wing Towers
31118
1
3
2
1
2
3
2
Figure 79
Tower Placement
29423
L
R
U
D
F
B
L
R
