Hydraulic Hose Installation
Refer to Figure 90
Hoses are labeled at both ends.
Hoses are already hooked up to the valve at one end.
The label has the number of the bulkhead hole the
hose hooks to.
If the other hose end is required to hook to the right or
left bulkhead MAKE SURE it is the correct hole. (Some
hose ends will NOT hook to the bulkhead at all.)
EXAMPLE:
Find the Great Plains part number
on the hose label:
Example: 841-387C.
Then find the page the part number is listed on in the
Parts Manual and locate its item number:
Example: 841-387C is on page 52 of the Parts Manual
titled Weight Transfer Hydraulics and is item number 8.
See corresponding drawing to locate that hose.

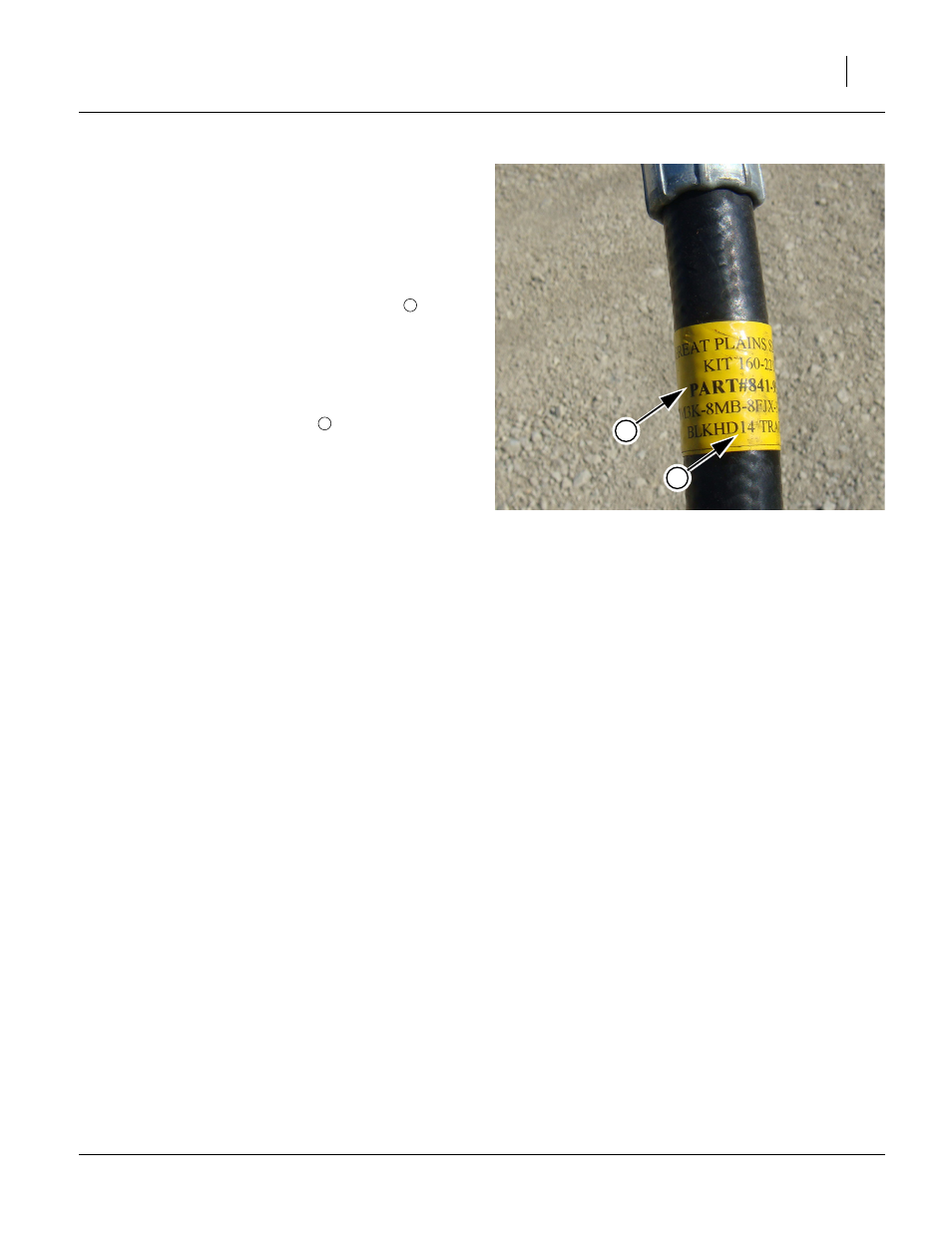

Figure 90
Hose Label
