Page 35

Assembly 31
03/29/2010
166-207Q

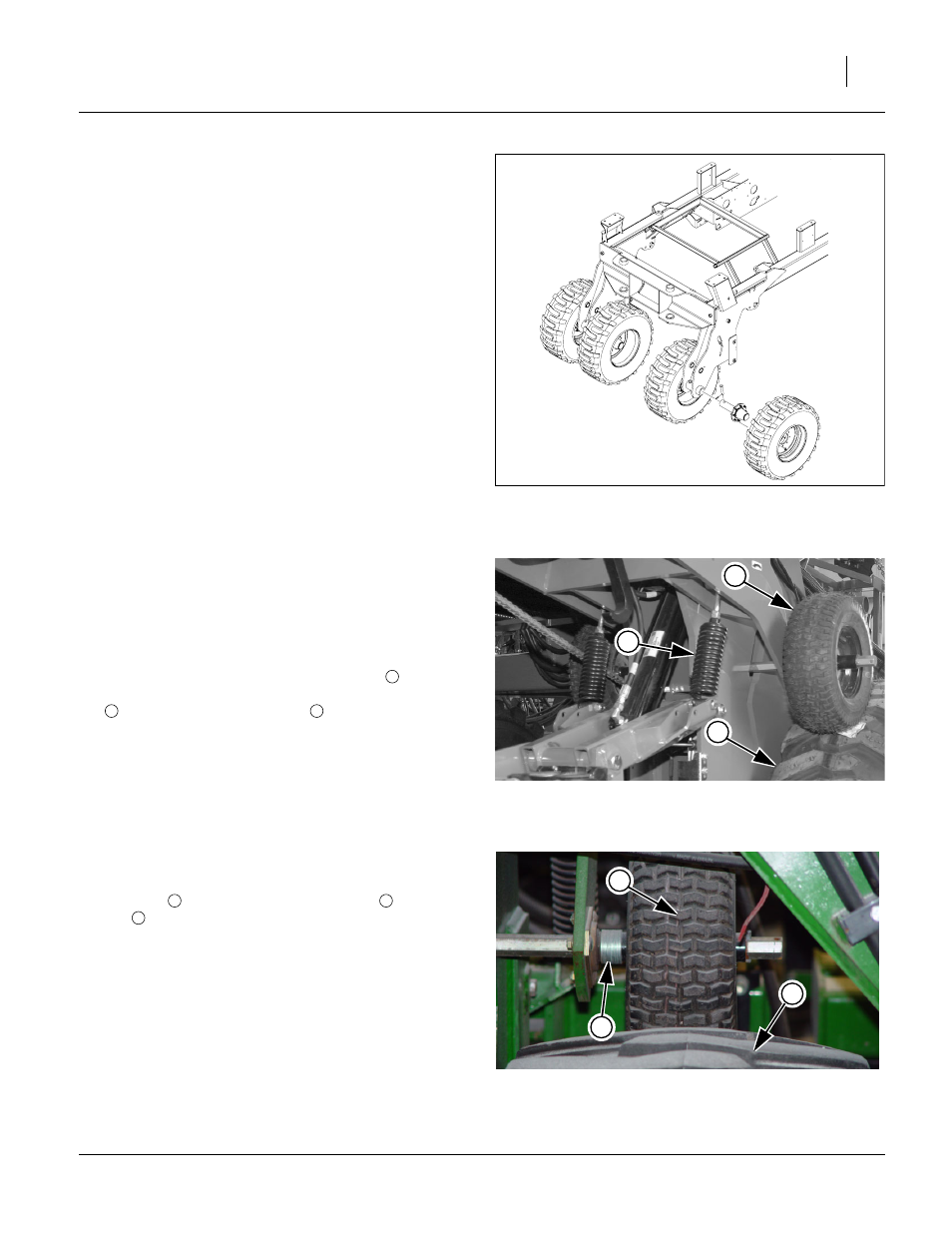

Assemble Cart Front Wheels
(see Parts Manual page: Cart Transport Wheels without
Brakes. If machine has optional brake equipment see
Brake section in Parts Manual.)
Refer to Figure 53
Assemble Contact Drive Wheels
(see Parts Manual section: Contact Drive)
(see Operator Manual section: Adjustments)
Refer to Figure 54
There are two contract drive tension springs
on each
side of the drill; four total. Illustration shows contact drive
tire
and the main transport tire
.
Adjusting Drive Wheels
Using shims
center contact drive wheels
over cart
wheels
.
Figure 53
Assemble Cart Front Wheels
31113
Figure 54
Assemble Contact Drive Wheels
29591
2
3
1
1
2
3
Figure 55
Contact Drive
7721
5
6
4
4
5
6
