Assemble 2 Ladders Inside Bins
(see Parts Manual section: Bin Assembly)
Refer to Figure 63
MAKE SURE:
Make sure to install ladder vent tubes on meter vent
tubes as shown.
Failure to do so will cause meter to plug with seed and
will!~ Ù!vent.
Bin Ladder Mounting
(see Parts Manual section: Walkboard and Ladder)
(see Operator Manual section: Operating Instructions -
Ladder Operations)
Refer to Figure 64
After installing ladder over meter vent tubes at bottom of
bin in Figure 63, it is necessary to drill two 7/16 inch
holes in rim of bin
to install and bolt upper part of lad-
der. (Assembled ladder shown.)

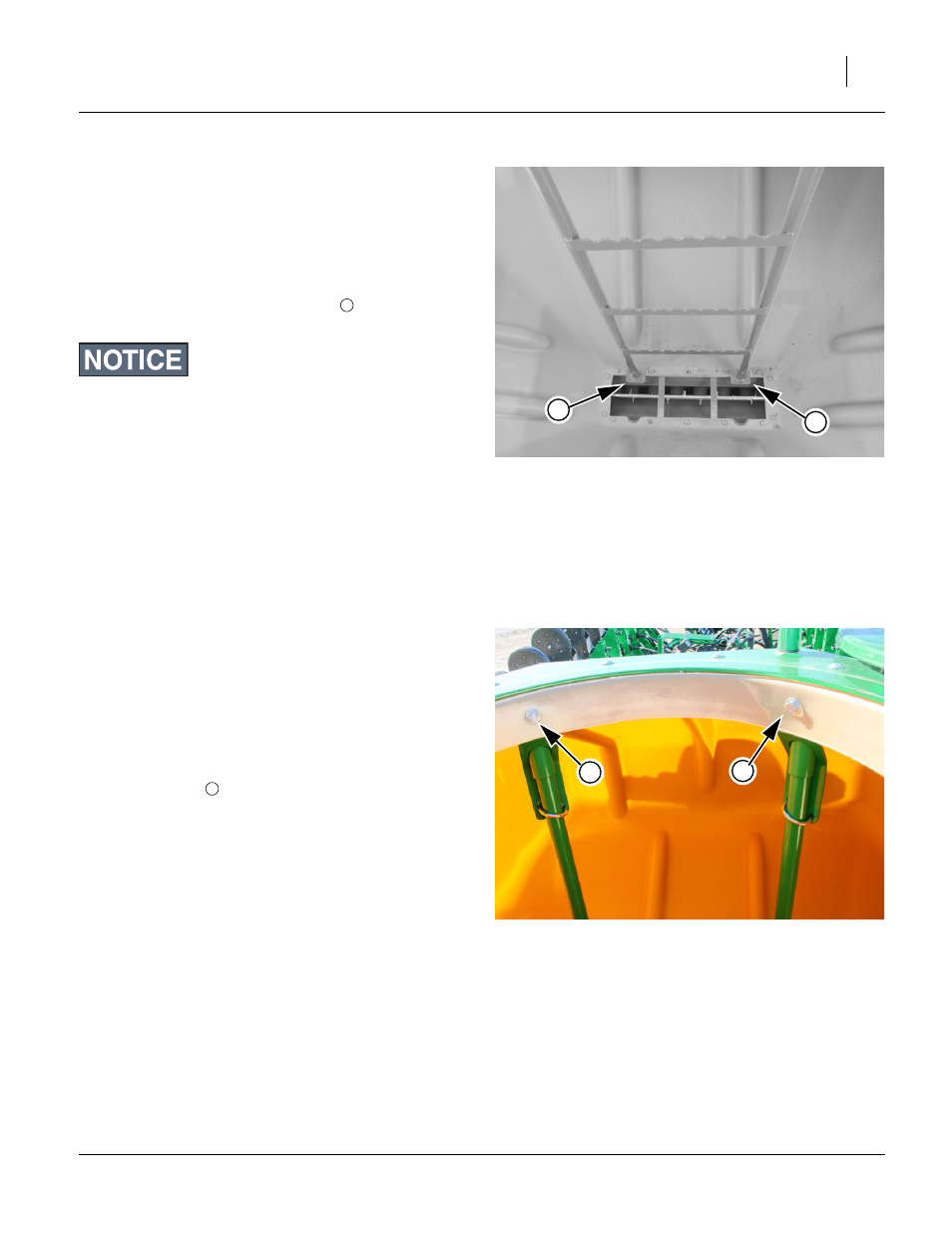

Figure 63
Bin Ladder Vent Tubes
7549
1
1
1
Figure 64
Bin Ladder Mounting
7547
2 2
2
