Great Plains Mfg., Inc. Front Parts Installation Instructions 7
6/23/2010 Front Parts 166-263M
Install Linear Actuators
Install Linear Actuator Mounts
Install ADC or NTA907/3007HD Mounts
For models NTA607HD or NTA2007HD, continue at
step 27.

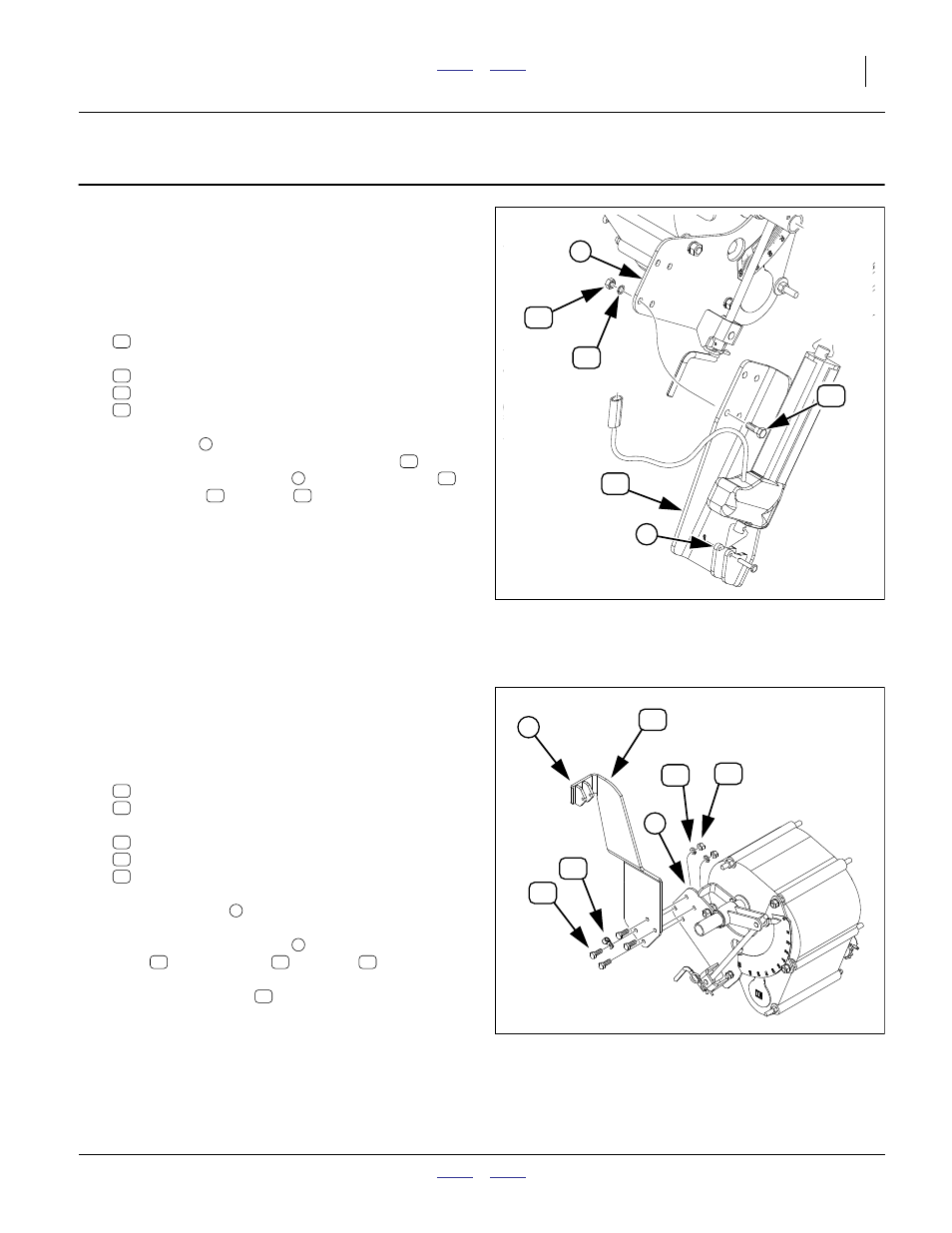

Refer to Figure 8
24. Select one new:
168-371H LINEAR ACTUATOR MOUNT WELDMENT
and four sets new:
802-017C HHCS 3/8-16X1 GR5
804-013C WASHER LOCK SPRING 3/8 PLT
803-014C NUT HEX 3/8-16 PLT
With the lug end down, and the lugs facing for-
ward, install the actuator mount weldment on the
existing anchor weldment . Secure with bolts ,
lock washers and nuts .
25. Repeat step 24 for the other meter.
26. Continue at step 37 on page 9.
Install NTA607/2007HD Mounts
For models ADC2350/B or NTA907/3007HD, install
mounts per step 24 through step 25 above, then con-
tinue at step 37 on page 9.
Refer to Figure 9
27. Select one each new:
166-318H ACTUATOR MOUNT WELDMENT
800-238C .375 WIRING AND TUBE CLIP
and four sets new:
802-017C HHCS 3/8-16X1 GR5
804-013C WASHER LOCK SPRING 3/8 PLT
803-014C NUT HEX 3/8-16 PLT
With the lug end facing up and away from the
gearbox, install the actuator mount weldment on the
existing anchor weldment
. Loosely secure with
bolts , lock washers and nuts .
Place the wiring clip under the left lower bolt.
Tighten the other three bolts to Grade 5 torque
spec. Leave the bolt with the clip finger-tight until
step 59 on page 12.
28. If two meters are being upgraded, repeat step 27 for
the other meter.
Figure 8
ADC/NTA907/3007 Actuator Mount
29498
17
29
32
22
7
6
17
22
32
29
6
17
7 22
32 29
Figure 9
NTA607/2007 Actuator Mount
31357
14
29 32
22
9
8
21
14
21
22
32
29
8
9
22 32 29
21
