2 Air Drill Variable Rate Kit Front Parts Great Plains Mfg., Inc.
166-263M Front Parts 6/23/2010
Notations and Conventions
“Left” and “Right” are facing in the
direction of machine travel. An orienta-
tion rose in the line art illustrations
shows the directions of Left, Right,
Front, Back, Up, Down.
Call-Outs
Before You Start
Compatibility
Refer to Figure 2
1.
Check that linear actuators are not already installed
on the cart or integrated air drill. Variable Rate is a
feature that can be factory-installed.
2. Check the model number of the air cart or air drill to
ensure it is a compatible model. For example, this
kit is not compatible with the gearboxes used on
ADC1150, ADC2220 or ADC2250 air carts, nor
NTA1000, NTA1300 or NTA2000 integrated air drills.
Inventory
3. Make sure all parts are present.
Comprehension
4. Review these instructions. Make sure the installers
understand where each part or assembly is
installed, and what tools are required for the task.
Note: Illustrations in this manual, based on implement
Parts manual, may show exploded views that are
fully disassembled. Rely on the instructions for
required disassembly and reassembly steps.
U
D
F
B
L
R
to
Single-digit callouts identify components in
the currently referenced Figure or Figures.
These numbers may be reused for different
items from page to page.
to
Two-digit callouts in the range 11 to 40 refer-
ence new parts (see list on page 20).
to
Two-digit callouts in the range 51 to 52 refer-
ence affected existing parts (see page 21).
1 9
11 40
51 52

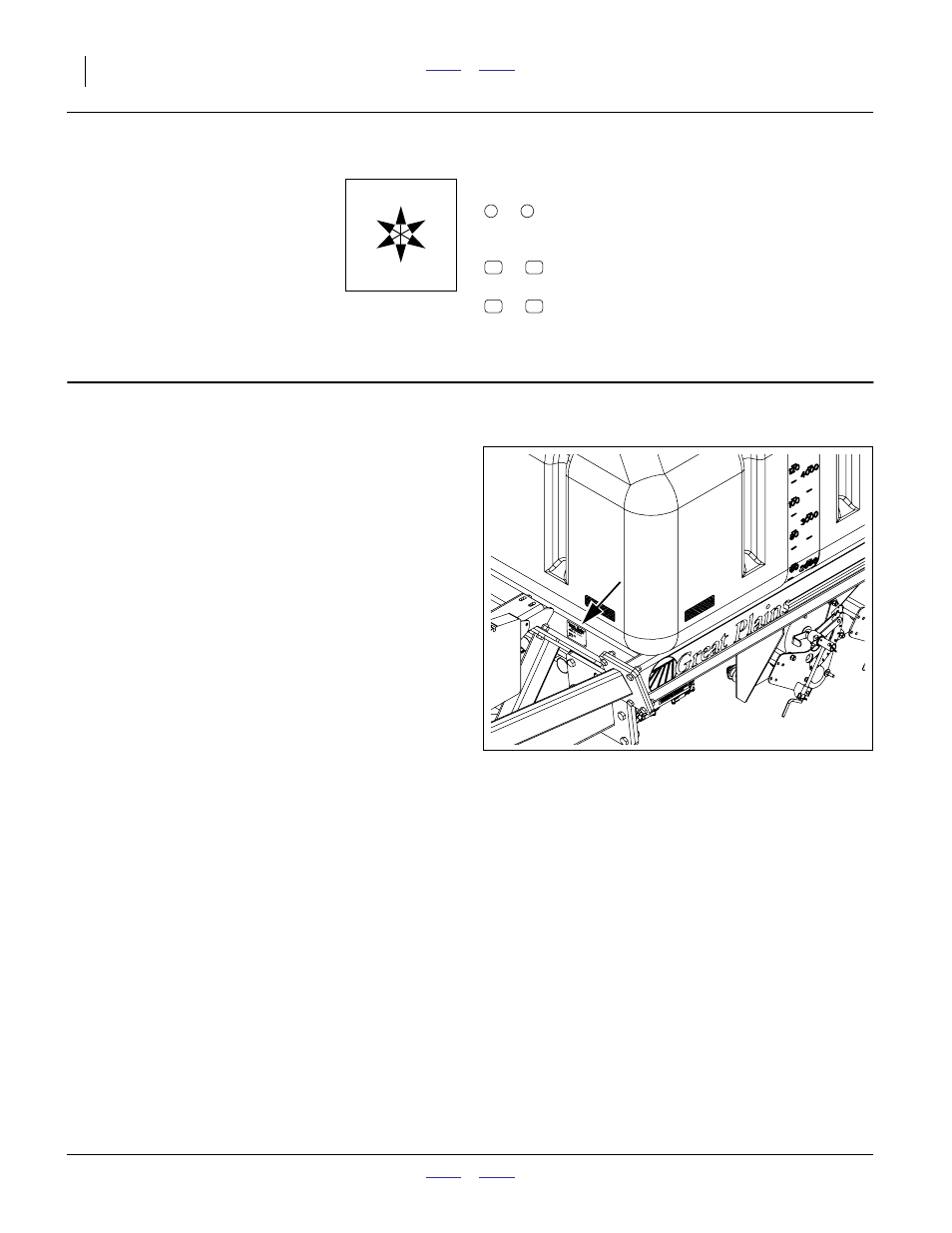

Figure 2
ADC Model/Serial Number Plate
26428
