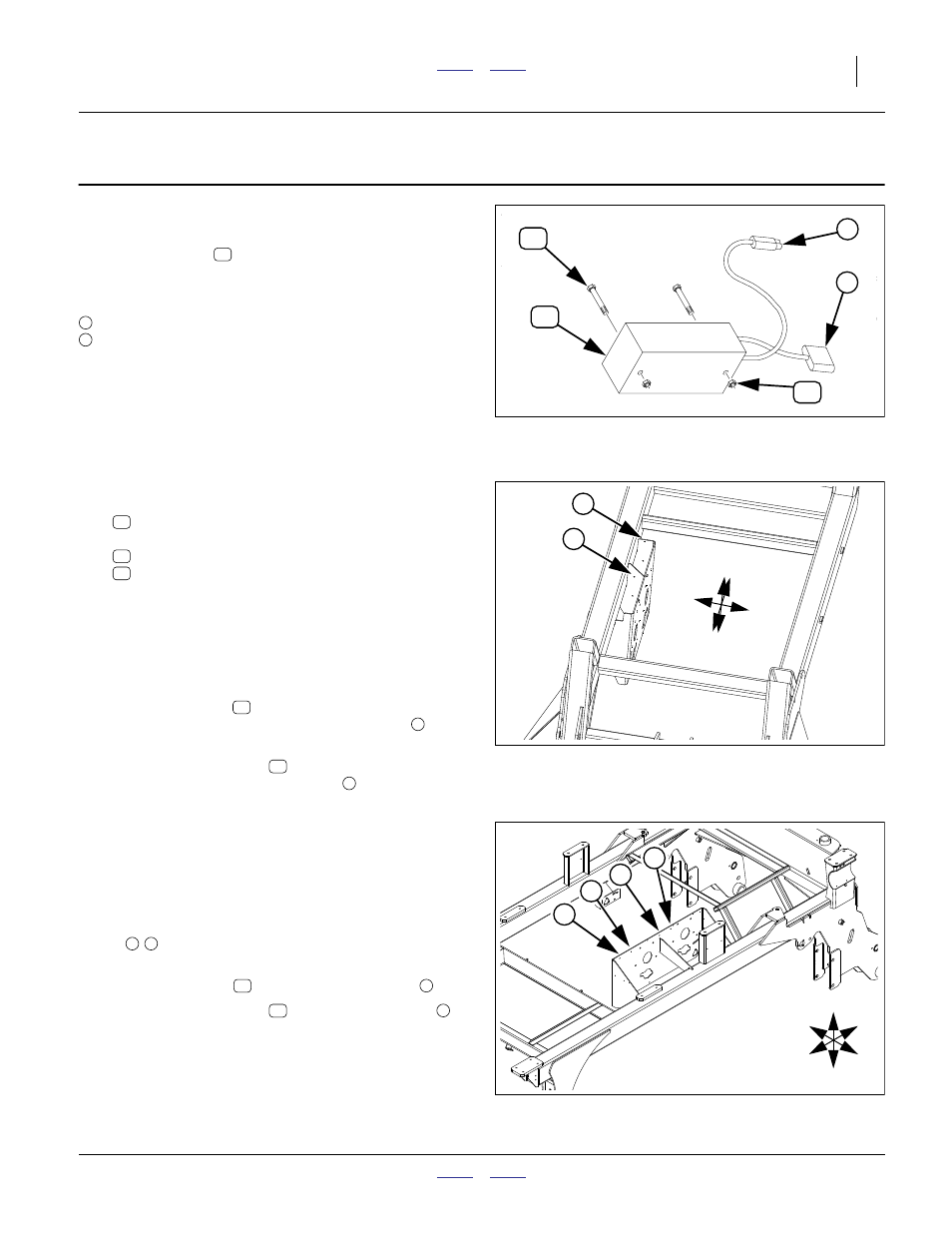

Great Plains Mfg., Inc. Front Parts Installation Instructions 11
6/23/2010 Front Parts 166-263M
Install Actuator Driver
About the Driver Module
Refer to Figure 14
The actuator driver
is an electronic module that
adapts the linear actuator to the IntelliAG
®
WSMT.
It has two cable leads:
2-pin lead to the linear actuator, and;
6-pin lead to the existing WSMT harness.
Install ADC or NTA907/3007HD Driver
For NTA607/2007HD, continue at step 59 on page 12.
For NTA907/3007HD, continue at step 56.
52. Select two new:
464360033S1 G P ZEROMAX VALVE DRIVER
and four sets new:
802-274C HHCS 1/4-20X3 GR5
803-255C NUT HEX NYLOCK 1/4-20
ADC 2350/2350B Driver Installation
For NTA907/3007HD, continue at step 56.
Refer to Figure 15
On ADC2350/B, the driver modules mount vertically, with
the cable lead exiting from the bottom of the module.
53. Mount one driver on the back side of the forward
gearbox mounting plate break, at the holes iden-
tified or prepared at step 21.
54. Mount the other driver on the back side of the
gearbox brace plate, at the holes identified or
prepared at step 21.
55. Continue at step 62 on page 13.
NTA907/3007HD Driver Installation
Refer to Figure 16
On NTA907/3007HD, the driver modules mount horizon-
tally, with the cable lead exiting from the rear of the mod-
ule. The mount point is pairs of
1 ⁄
4
in (6.4mm)
holes ( , ), spaced 5.75in (14.6mm) apart, at the out-
side (right) top edge of the gearbox mount plate.
56. Mount one driver at the forward hole pair ).
57. Mount the other driver at the back hole pair .
58. Continue at step 62 on page 13.
Figure 14
Actuator Driver Module
29498
18
30
24
1
2
18
1
2
Figure 15
ADC Driver Mounting
29508
U
D
F
B
R
L
4
5
18
24
30
18
4
18
5
Figure 16
NTA907/3007 Driver Mounting
29509
7
7
6
6
U
D
B
F
R
L
6 7
18 6
18 7
