Great Plains Smartbox Mount Kit Yield Pro Planters - Manual (Page 4)

Great Plains Mfg., Inc.
4 Smartbox® Mount Kit
403-206M 12/12/2006
Wing Support Tubes
Mount Tubes
(Model YP1225 only)
Refer to Figure 5
5. Select:
one (15) 403-192H,
(SUPPORT TUBE WLDMNT - 12 ROW)
three (37) 806-066C,
(U-BOLT 1/2-13 X 3 1/32 X 4)
and six (30) 803-169C,
(NUT HEX FLG. LOCK 1/2-13 PLT.).
Align support tube (15) so a distance of 6 inches
exists between the planes defined by the end of air
pipe support
➀
and the support tube jog plate
➁
.
Using U-bolts (37), attach support tube (15) to
standoff support brackets (14) with elevated end
➀
of support tube towards implement center.
Secure support tube (15) to each of three support
brackets (14) with hex lock nuts (30).
Mount Tubes
(Model YP1625 only)
Refer to Figure 6
5. Select:
one (13) 403-190H,
(SUPPORT TUBE WLDMNT)
three (37) 806-066C,
(U-BOLT 1/2-13 X 3 1/32 X 4)
and six (30) 803-169C,
(NUT HEX FLG. LOCK 1/2-13 PLT.).
Align support tube (13) so a distance of 6 inches
exists between end of air pipe support
➀
and sup-
port tube jog plate
➁
.
Using U-bolts (37), attach support tube (13) to
standoff support brackets (14) with elevated end
➀
of support tube towards implement center.
Secure support tube (13) to each of three support
brackets (14) with hex lock nuts (30).

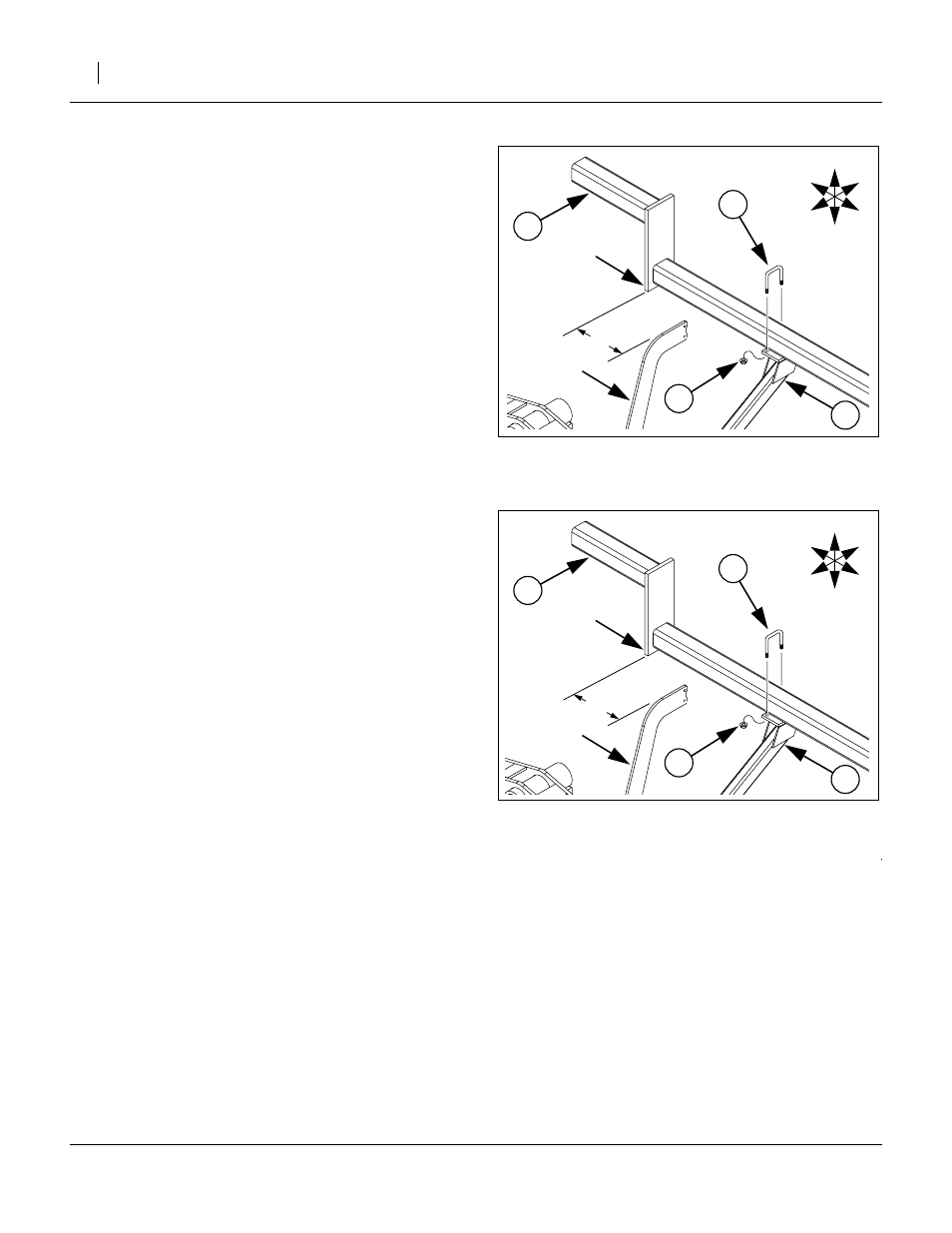

Figure 5
YP1225 Wing Support Tube
25325
U
D
F
B
L
R
6in
15
➀
37
30
14
➁
Figure 6
YP1625 Wing Support Tube
25325
U
D
F
B
L
R
6in
13
➀
37
30
14
➁
