Great Plains Mfg., Inc.
Installation Instructions 13
12/12/2006 403-206M
YP2425 Center Section Smartbox Frames
For ease of access, mount the two inner-most center
section Smartbox frames first.
Note: Whether the entire center section will have four or
six Smartboxes total, the tube between the cylin-
ders always has two.
Note: Meters may need to have one or both exit ports
biased Left or Right. Consult the table on page 8
before installing base container/[splitter]/meter
assemblies.
YP2425 Center Section Box Frames
Refer to Figure 21 and Figure 22
40. Select:
one
➀
Smartbox frame,
two (18) 403-319D,
(SMART BOX HOLD DOWN CLAMP),
two (27) 802-223C,
(HHCS 3/8-16X4 GR5),
two (26) 802-079C,
(HHCS 3/8-16X1 1/4 GR5), and
four (31) 803-209C,
(NUT FLANGE LOCK 3/8-16 PLT)
41. Insert a 1
1 ⁄
4
in bolt (26) in the slotted mounting hole
near center
➁
on one side of the frame
➀
. Slip the
shorter end of a clamp (18) over the bolt (26) and
add a flange lock nut (31). Put only a few turns on
the nut.
42. Position the frame
➀
Left of center on the tube
➂
per in Figure 21, clamp (18) to machine front.
43. Insert a 4in bolt (27) in the forward slotted hole
➄
of the frame
➀
, and then down through the hole in
the clamp (18), and add a flange lock nut (31). Put
only a few turns on the nut.
44. Repeat Step 33 through Step 35 for the other side
of the frame
➀
.
45. Position Smartbox base container/meter or
container/splitter/meter assembly
➅
in the frame
➀
, having the meter ports biased per the table on
page 8, and secure with fasteners provided by
AMVAC.
46. Repeat Step 41 through Step 45 for the inner-most
center section box just Right of center.
47. Repeat Step 41 through Step 46 for the two box
frames to the outside of the center tube of the cen-
ter section.
48. Repeat Step 41 through Step 45 for the box frames on the outside tubes of the center section.
Note: If the outer tubes have only one box, mount it to the outside, as shown at
➈
in Figure 21.

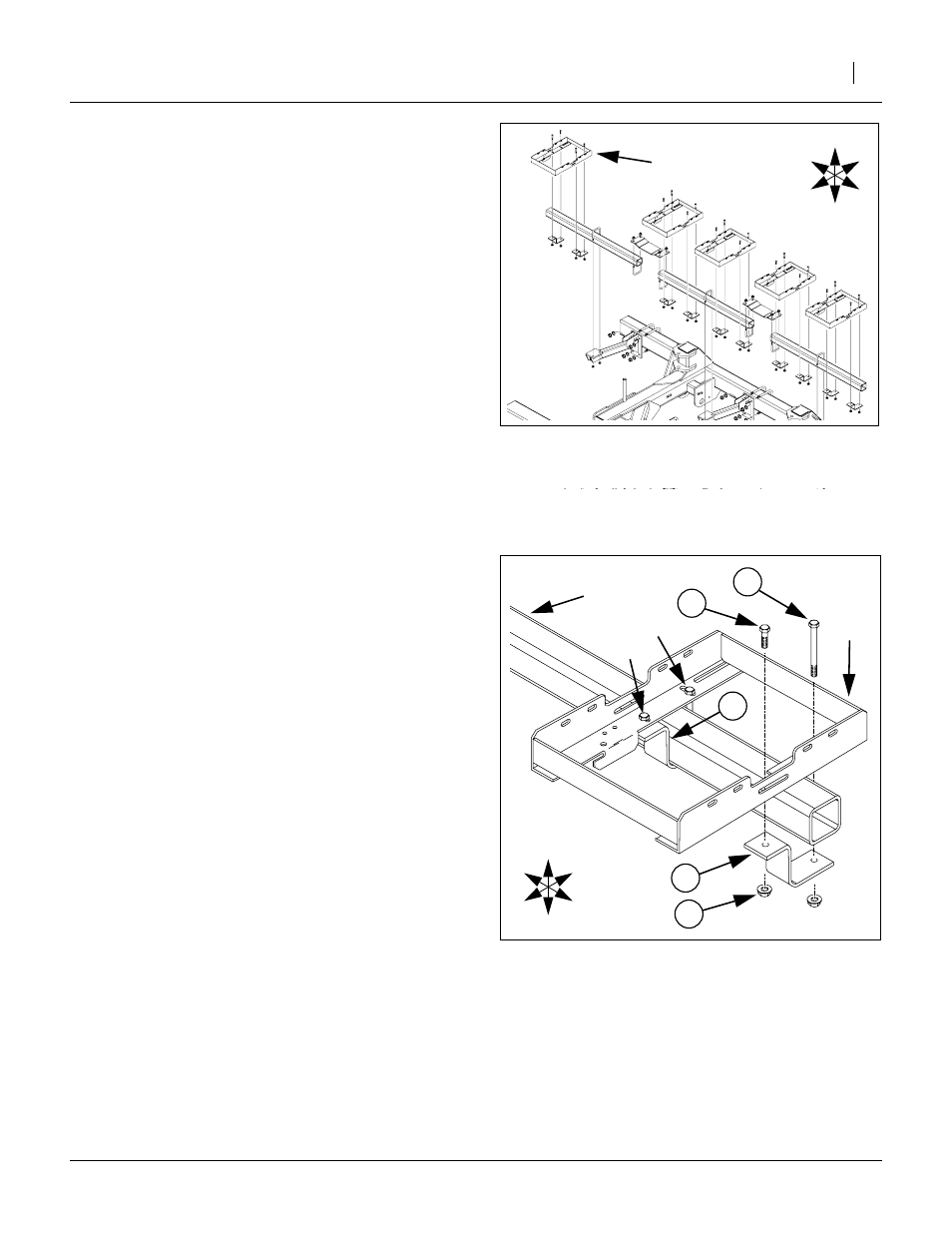

Figure 21
Center Section Box Frames
25207
U
D
F
B
L
R
➈
Figure 22
YP2425 Center Mount
25328
➁
18
27
31
26
U
D
F
B
L
R
➀
18
➄
➂
