Great Plains Mfg., Inc.
2 Smartbox® Mount Kit
403-206M 12/12/2006
Assembly Instructions
Wing Support Brackets
Outer End Wing Support Bracket
(all Models)
Refer to Figure 1
1. Select:
one (14) 403-191H,
(SMARTBOX STANDOFF SUPPORT BKT)
two (35) 806-052C,
(U-BOLT 5/8-11 X 7 1/32 X 8 1/2)
four (33) 804-022C,
(WASHER LOCK SPRING 5/8 PLT),
and four (28) 803-021C,
(NUT HEX 5/8-11 PLT).
Attach the standoff support bracket (14) to Back of
toolbar of right-hand planter wing. Mount bracket
(14) as close to air pipe support
➀
as possible.
Note: It may be necessary to relocate hydraulic hose
support stand. Do not relocate row units.
Secure support bracket (14) to wing with U-bolts
(35), lock washers (33) and hex nuts (28).
Pivot End Wing Support Bracket
(all Models)
Refer to Figure 2
2. Select:
one (14) 403-191H,
(SMARTBOX STANDOFF SUPPORT BKT)
two (35) 806-052C,
(U-BOLT 5/8-11 X 7 1/32 X 8 1/2)
four (33) 804-022C,
(WASHER LOCK SPRING 5/8 PLT),
and four (28) 803-021C,
(NUT HEX 5/8-11 PLT).
Attach the standoff support bracket (14) to Back of
toolbar of right-hand planter wing. Mount bracket
(14) in slot
➀
below sequence valve.
If this toolbar slot is occupied by a row unit (for
example, on 15in row spacing), position the stand-
off support bracket at the first available position
inboard of that.
Secure support bracket (14) to wing with U-bolts
(35), lock washers (33) and hex nuts (28).

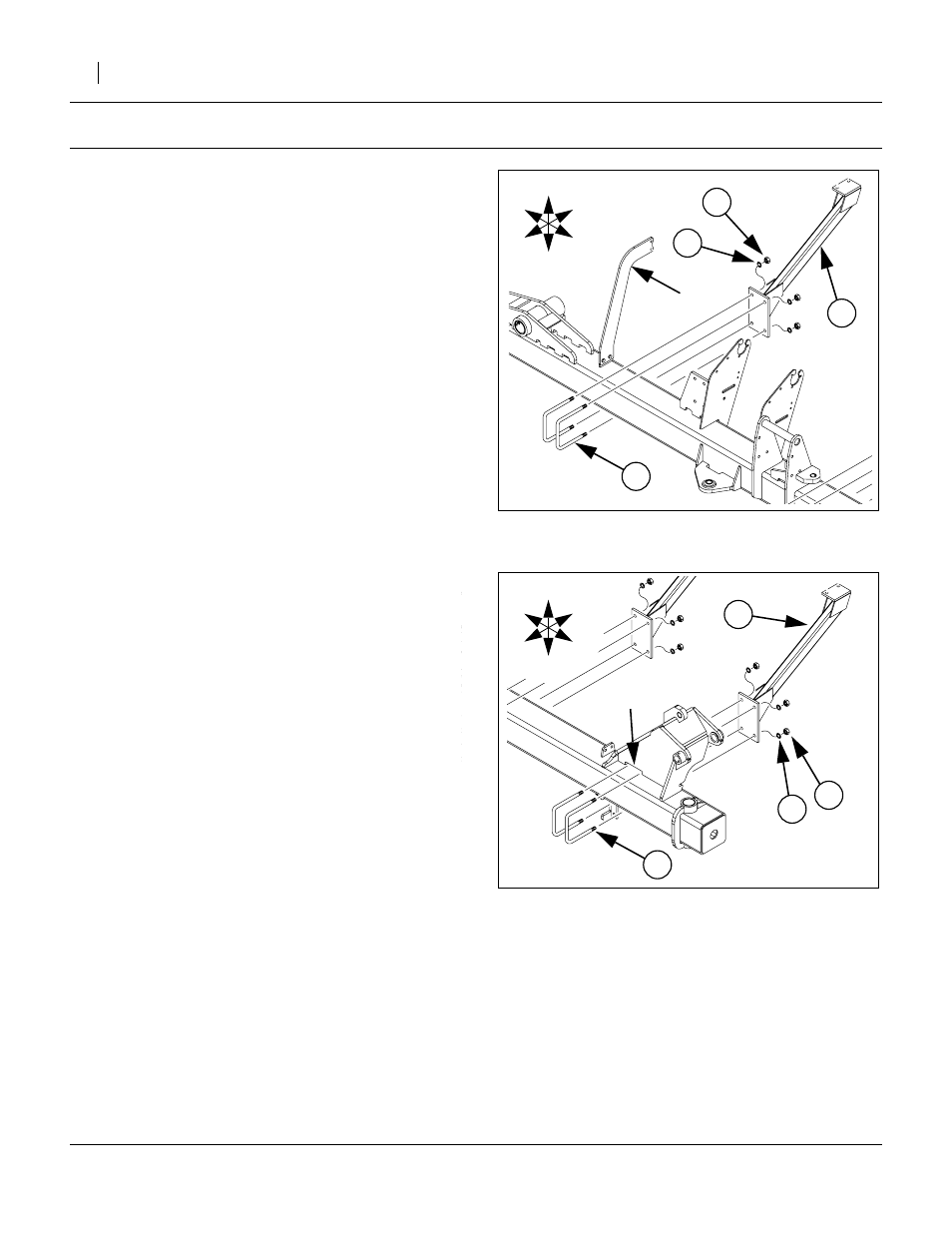

Figure 1
Wing Outer End Bracket
24167
35
U
D
F
B
L
R
33
28
14
➀
35
33
28
14
➀
U
D
F
B
L
R
Figure 2
Wing Pivot End Bracket
24167
