Great Plains Smartbox Mount Kit Yield Pro Planters - Manual (Page 3)

Great Plains Mfg., Inc.
Installation Instructions 3
12/12/2006 403-206M
Inner Wing Support Bracket
(Models YP1225 & YP1625 only)
Refer to Figure 3
3. Select:
one (14) 403-191H,
(SMARTBOX STANDOFF SUPPORT BKT)
two (35) 806-052C,
(U-BOLT 5/8-11 X 7 1/32 X 8 1/2)
four (33) 804-022C,
(WASHER LOCK SPRING 5/8 PLT),
and four (28) 803-021C,
(NUT HEX 5/8-11 PLT).
Attach the standoff support bracket (14) to Back of
toolbar of right-hand planter wing. Center bracket
(14) as best will fit approximately halfway between
the end brackets already installed. Do not relocate
row units.
Secure support bracket (14) to wing with U-bolts
(35), lock washers (33) and hex nuts (28).
Inner Wing Support Brackets
(Model YP2425 only)
Refer to Figure 4
3. Select:
two (14) 403-191H,
(SMARTBOX STANDOFF SUPPORT BKT)
four (35) 806-052C,
(U-BOLT 5/8-11 X 7 1/32 X 8 1/2)
eight (33) 804-022C,
(WASHER LOCK SPRING 5/8 PLT),
and eight (28) 803-021C,
(NUT HEX 5/8-11 PLT).
Measure between the two brackets already
installed and find two locations approximately
1 ⁄
3
the distance from each of them.
Attach a standoff support bracket (14) to Back of
toolbar of right-hand planter wing at each of those
locations. Do not relocate row units.
Secure support bracket (14) to wing with U-bolts
(35), lock washers (33) and hex nuts (28).
Mount Brackets on Opposite Wing
(All Models)
4. Repeat Step 1 through Step 3 on left-hand wing of planter.
35
33
28
14
➀
U
D
F
B
L
R

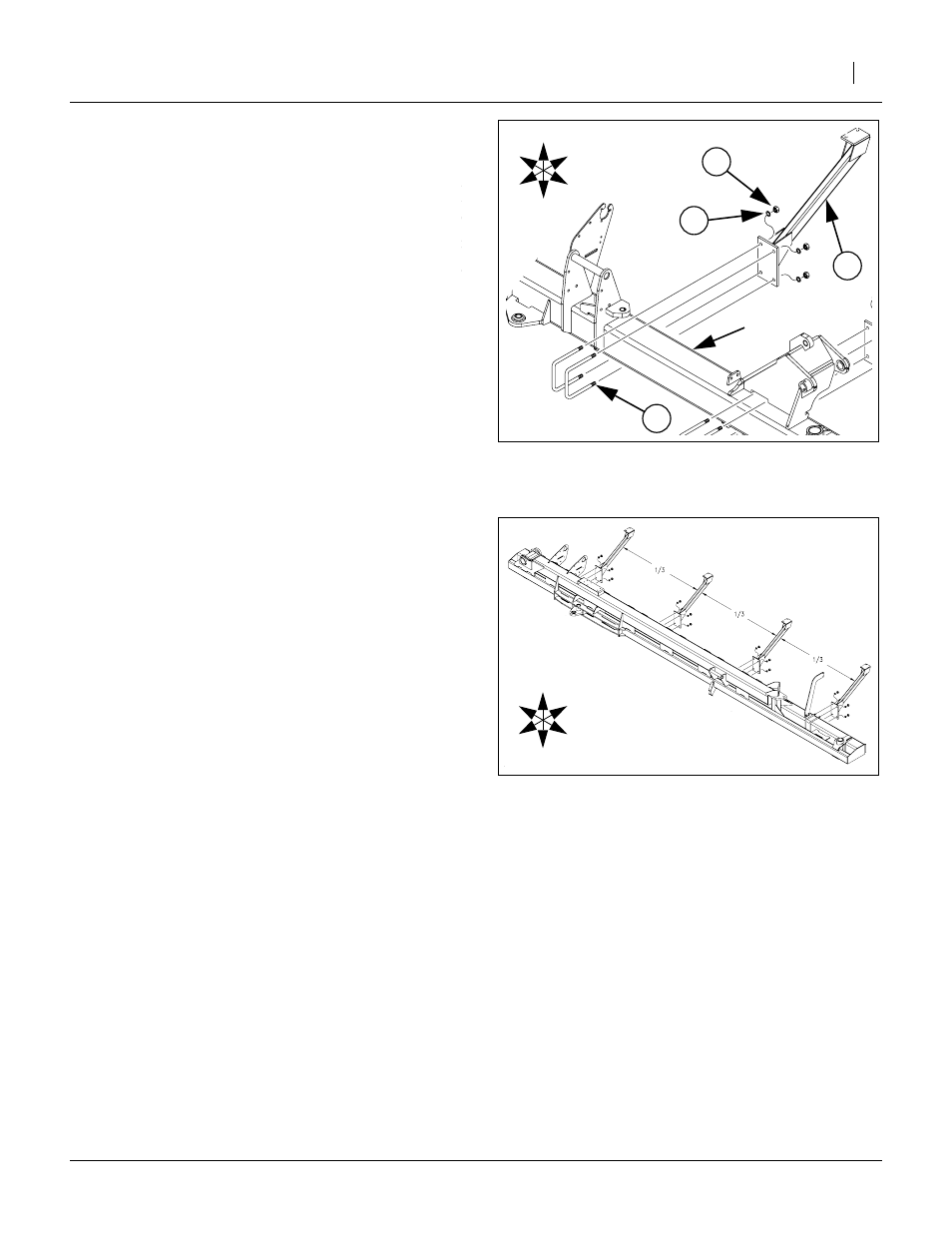

Figure 3
Wing Inner Bracket
24167
Figure 4
Wing Inner Brackets
25232
U
D
F
B
L
R
