12 Smartbox® Mount Kit
403-206M 12/12/2006
Mount Second Inner YP1225/1625 Smartboxes
Refer to Figure 19 and Figure 20
The components for this step are identical to those of
Step 25 through Step 32. There are two procedural dif-
ferences from mounting the inner-most frames:
33. Insert a 1
1 ⁄
4
in bolt (26) in the slotted mounting hole
just forward of center
➁
on one side of the frame
➀
. Slip the shorter end of a clamp (18) over the
bolt (26) and add a flange lock nut (31). Put only a
few turns on the nut.
34. Position the frame
➀
on the tube
➂
and against
the jog plate
➃
.
35. Insert a 4in bolt (27) in the forward slotted hole
➄
of the frame
➀
, and then down through the hole in
the clamp (18), and add a flange lock nut (31). Put
only a few turns on the nut.
36. Repeat Step 33 through Step 35 for the other side
of the frame
➀
.
37. Position Smartbox base container/meter or
container/splitter/meter assembly
➅
in the frame
➀
, having the meter ports biased to the Right, and
secure with fasteners provided by AMVAC.
38. Slide the complete assembly fully forward and
against the jog plate
➃
, and the tube
➂
, before
final tightening.
39. Repeat Step 33 through Step 38 for the second
innermost Smartbox on the right side of the
machine, using a Smartbox base container/meter
or container/splitter/meter assembly with the meter
exit port(s) biased to the Left.

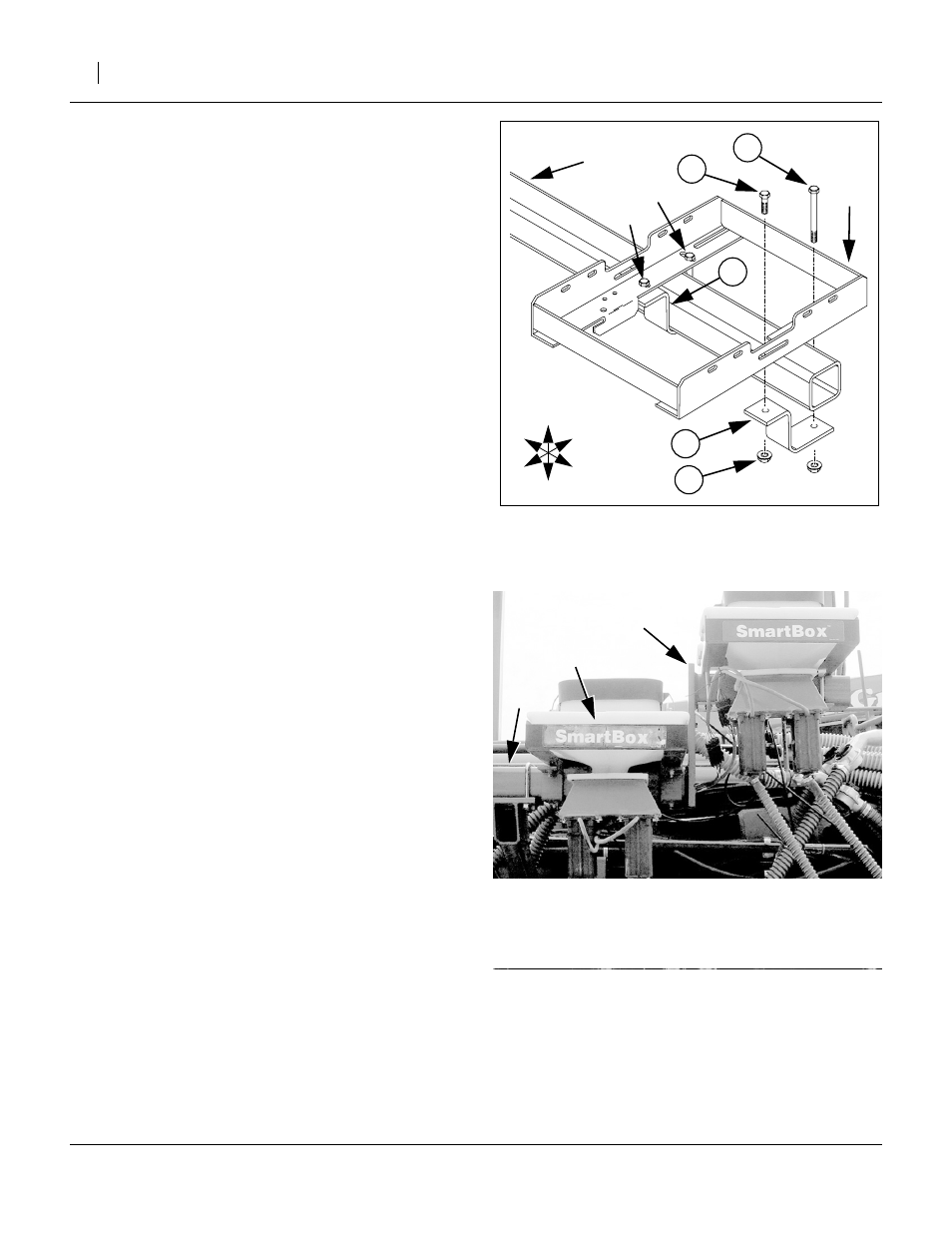

Figure 19
YP1225/1625 2nd Mount
25328
➁
18
27
31
26
U
D
B
F
R
L
➀
18
➄
➂
Figure 20
YP1225/1625 2nd Inner
24169
➃
➂
➅
