Great Plains Mfg., Inc.
10 Smartbox® Mount Kit
403-206M 12/12/2006
Mount Smartbox Frames
Refer to Figure 15 (which illustrates normal back-of-tube mounting)
The Smartbox frames
➀
mount to the new tubes
➁
with
a pair of clamps (18),
3 ⁄
8
in long bolts (27),
3 ⁄
8
in short
bolts (26), and flange lock nuts (31) provided in the
mount kit.
Most of the clamps are placed on the Back side of the
tube, but on the YP1225 and YP1625, two (pair) must
be placed on the Front side of the tube.
For model YP2425, skip to Step 40.
YP1225 and 1625 Near-Pivot Mounting
Refer to Figure 16
Due to clearance from other components, the four
inner-most Smartboxes cannot be placed directly over
the row units they serve, and must be to the outside,
with meter hoses canted inward.
Identify the four Smartbox assemblies with meter exit
ports biased Left or Right and set them aside from the
assemblies with ports pointing Back. If you didn’t build
four assemblies with biased ports, pick four assemblies
and re-point the meters.

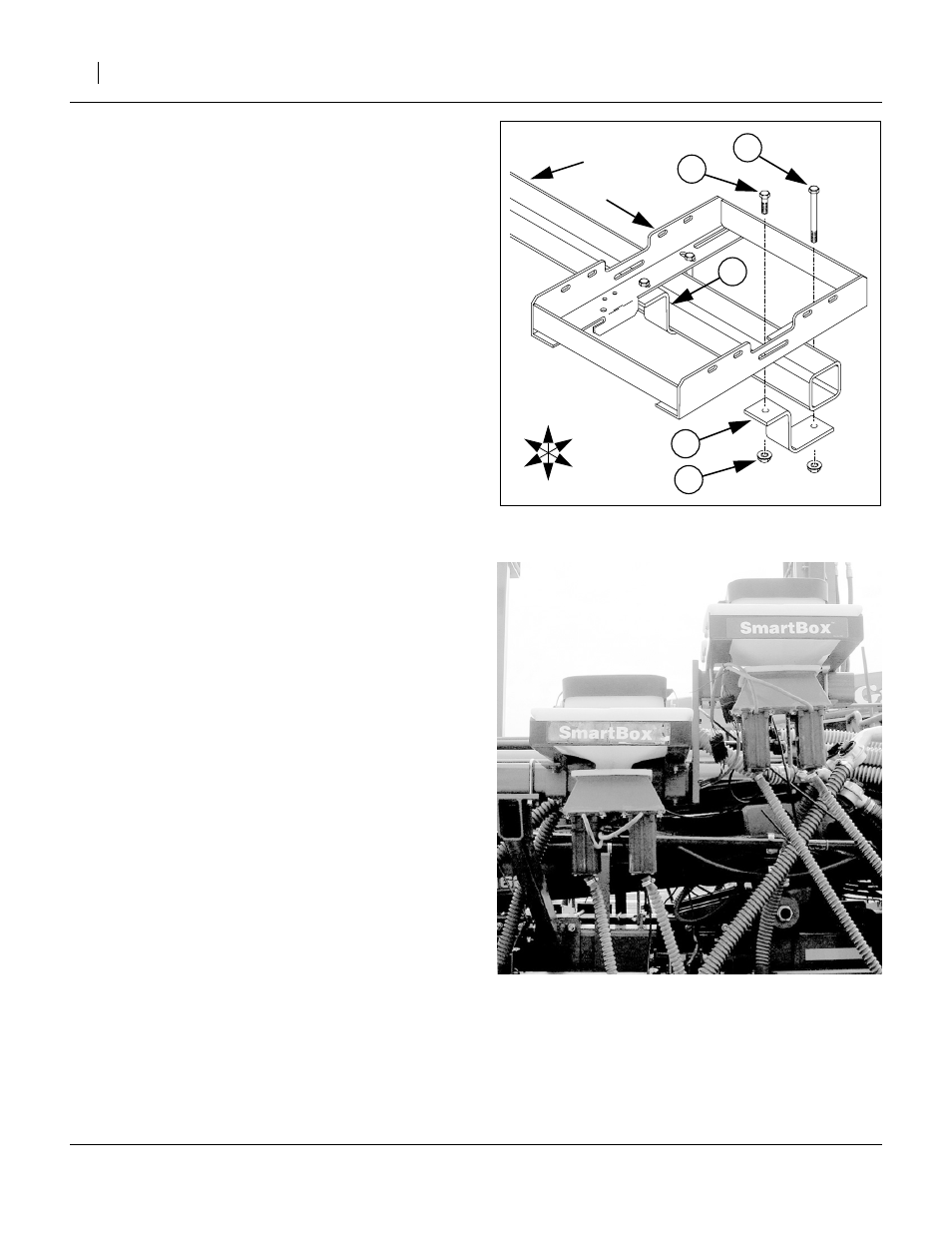

Figure 15
Typical Frame Mount
25328
➀
18
27
31
26
U
D
B
F
R
L
➁
18
Figure 16
YP1225/1625 Inner Mounts
24169
