56- Electric Latch Retraction Exit Devices
Installation and Wiring Instructions
With Optional 53- Latchbolt; 55- Request to Exit;
and TL- (SARGuide) Connection Instructions
FOR INSTALLATION ASSISTANCE CONTACT SARGENT • 1-800-810-WIRE (9473) • www.sargentlock.com

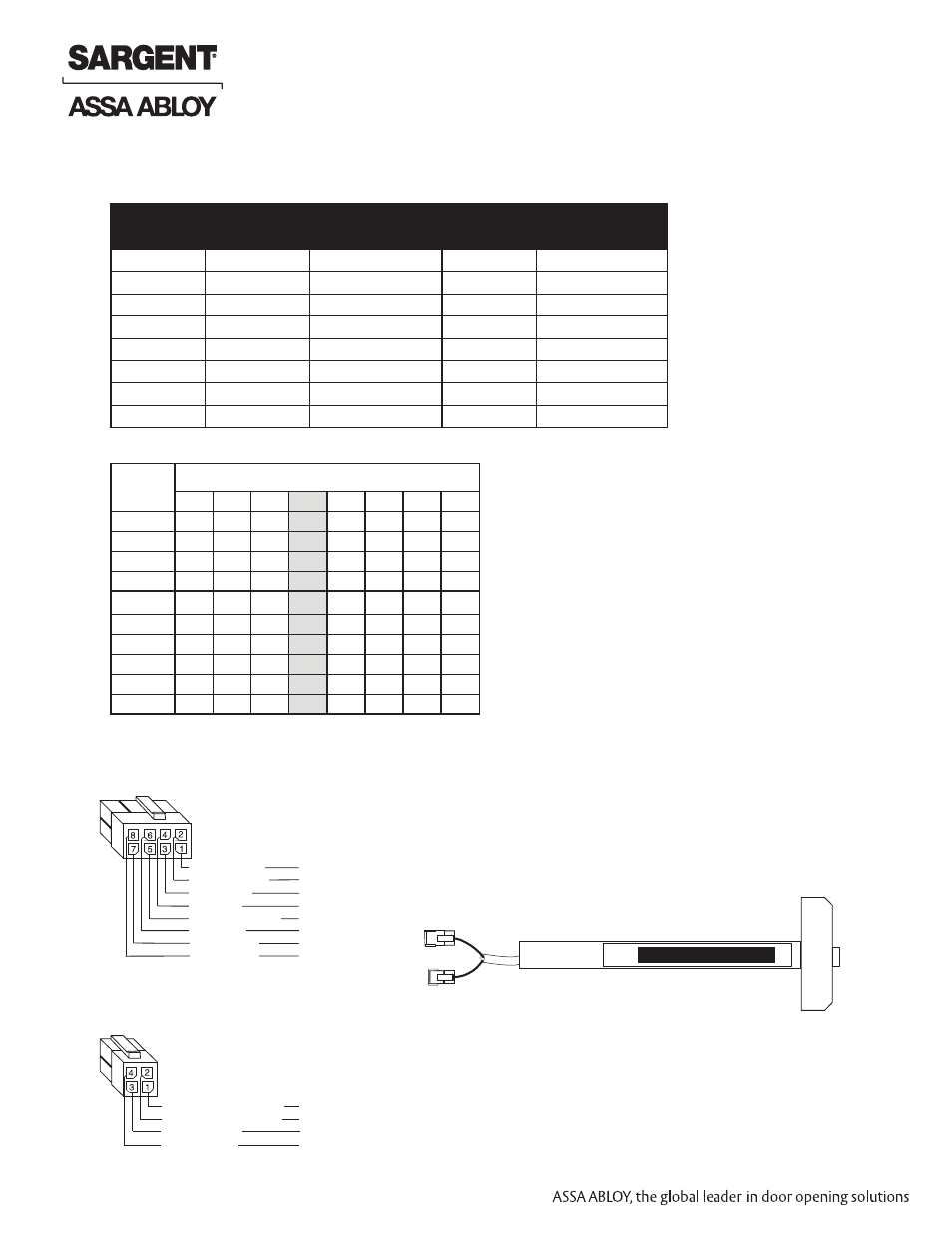

7. Wire Locations and Positions
56- Electric Latch Retraction devices are supplied with one 4-pin and one 8-pin Molex® connector.
Molex connectors allow simple installation using the ASSA ABLOY ElectroLynx® system.
8-pin Molex
Fig. 2 Wire Color and Position
1 - Black (56- 0VDC)
2 - Red (56- +24VDC)
3 - White (53- C)
4 - Green (EG)
5 - Orange (53- NC/NO)*
6 - Blue (55- C)
7 - Brown (55- NO)
8 - Yellow (55- NC)
1 - Violet (TL- Prefix is an option)
2 - Grey (TL+ Prefix is an option)
3 - Pink (56- Timer A)
4 - Tan (56- Timer B)
*NO/NC (Normally Open/Normally Closed)
is selectable on controller (refer to 53- DIP
switch instructions section III, part 5).
Factory preset is NO.
Without Timer With Timer
Application Wires Recommended Hinge Wires Recommended Hinge
56- 3 wires QC8 5 wires QC12
53- 56- 5 wires QC8 7 wires QC12
55- 56- 6 wires QC8 8 wires QC12
53- 55- 56- 8 wires QC8 10 wires QC12
TL-56- 5 wires QC12 7 wires QC12
TL-53- 56- 7 wires QC12 9 wires QC12
TL-55- 56- 8 wires QC12 10 wires QC12
TL-53- 55- 56- 10 wires QC12 12 wires QC12
5. Hinge Requirements
Total
One-Way
Length of
Wire Run (ft)
Load Current @ 24VDC
1/4A 1/2A 3/4A *1A 1-1/4A 1-1/2A 2A 3A
100 24 20 18 18 16 16 14 12
150 22 18 16 16 14 14 12 10
200 20 18 16 14 14 12 12 10
250 18 16 14 14 12 12 12 10
300 18 16 14 12 12 12 10 —
400 18 14 12 12 10 10 — —
500 16 14 12 10 10 — — —
750 14 12 10 10 — — — —
1,000 14 10 10 — — — — —
1,500 12 10 — — — — — —
6. Wire Gauge Chart
*When calculating voltage drop, use 1A as the
recommended current draw for the 56- ELR.
4-pin Molex
