56- Electric Latch Retraction Exit Devices
Installation and Wiring Instructions
With Optional 53- Latchbolt; 55- Request to Exit;
and TL- (SARGuide) Connection Instructions
FOR INSTALLATION ASSISTANCE CONTACT SARGENT • 1-800-810-WIRE (9473) • www.sargentlock.com
3. TIMER MODE Typical Wiring
For use when wiring in TIMER MODE (using the
onboard timer).
If more than 20 seconds timed delay is necessary,
an external timer delay relay is required (not provided).
Note: 24V supply is constant in
TIMER MODE.
Refer to settings in Section III, part 5 (Configuration
Instructions DIP Switch Settings).
56-
80 Series
Exit Device
QC12 Electric Hinge
24VDC
Power Supply
0V (Black)
+24V (Red)
EGND
Pink
Tan
Green (EGND)
Red (+24V)
Black (0V)
Momentary or
Maintain or Relay Switch
(Card Reader, Access
Control, etc.)
( C )
( NO )

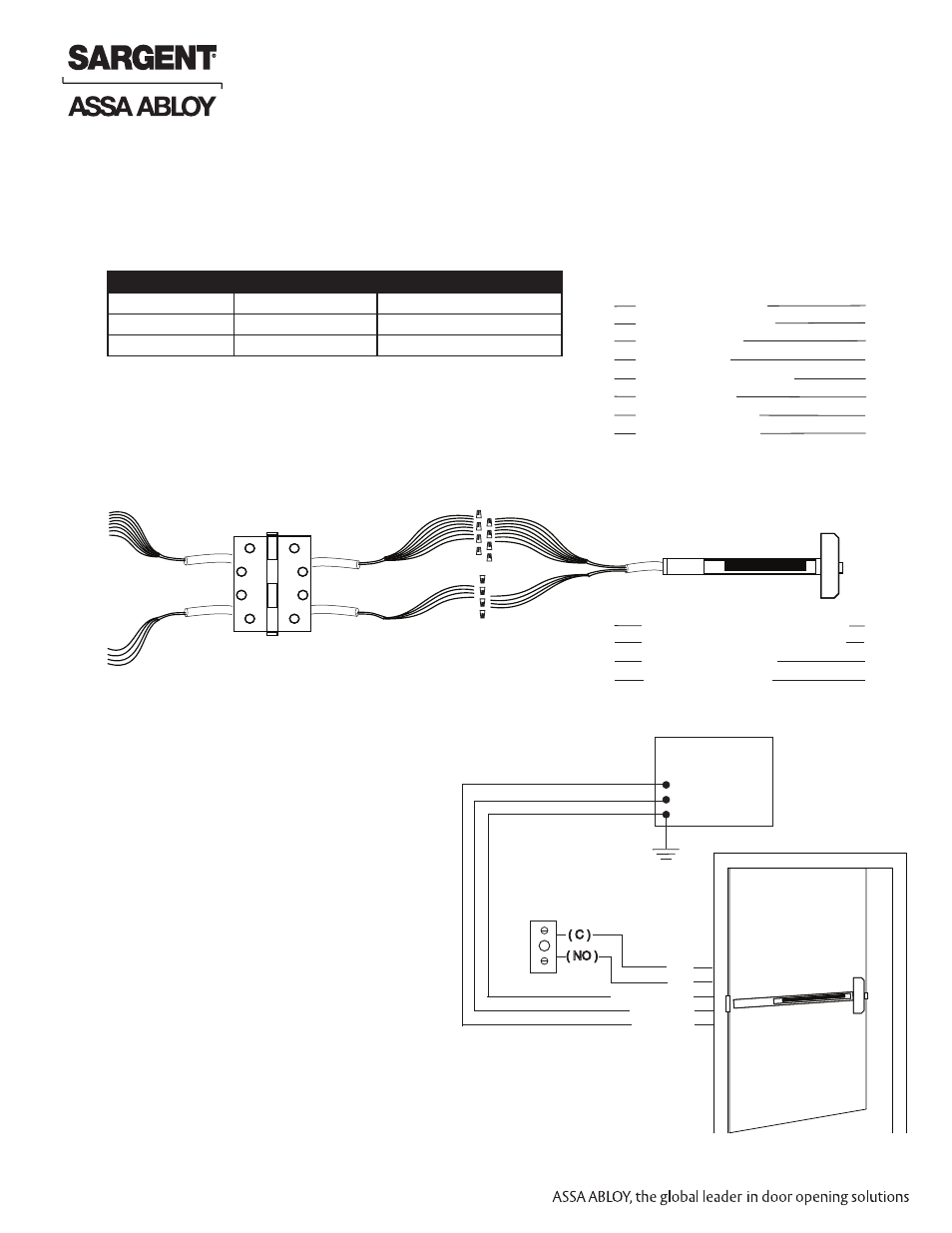

Fig. 18 TIMER MODE Typical Wiring
2. TIMER MODE Wiring (continued)
Non-ElectroLynx Opening Installation
Standard door with standard electric hinge: Remove the ElectroLynx connector from the 56- Exit Device and wire nut
the 56- wires to the wires from the electric hinge (color coordinating wire colors is recommended).
Fig. 17 Non-ElectroLynx TIMER MODE Connection
Loose wires with no termination
connected with wire nuts
Non- ElectroLynx
Electric Hinge
MoLEX boTh ENDS MoLEX To PIN ouT
3 INCH QC-C003 QC-C003P
6 INCH QC-C006 QC-C006P
12 INCH QC-C012 QC-C012P
56- Wires with ElectroLynx Connector Removed
1 - Black (56- 0VDC)
2 - Red (56- +24VDC)
3 - White (53- C)
4 - Green (EG)
5 - Orange (53- NC/NO)*
6 - Blue (55- C)
7 - Brown (55- NO)
8 - Yellow (55- NC)
1 - Violet (TL- Prefix is an option)
2 - Grey (TL+ Prefix is an option)
3 - Pink (56- Timer A)
4 - Tan (56- Timer B)
To identify part numbers and order harness(es), visit the McKinney website,
www.mckinneyhinge.com, and search the catalog for ElectroLynx.
*NO/NC (Normally Open/Normally Closed)
is selectable on controller (refer to 53- DIP
switch instructions in this section (III), part 5).
Factory preset is NO.
