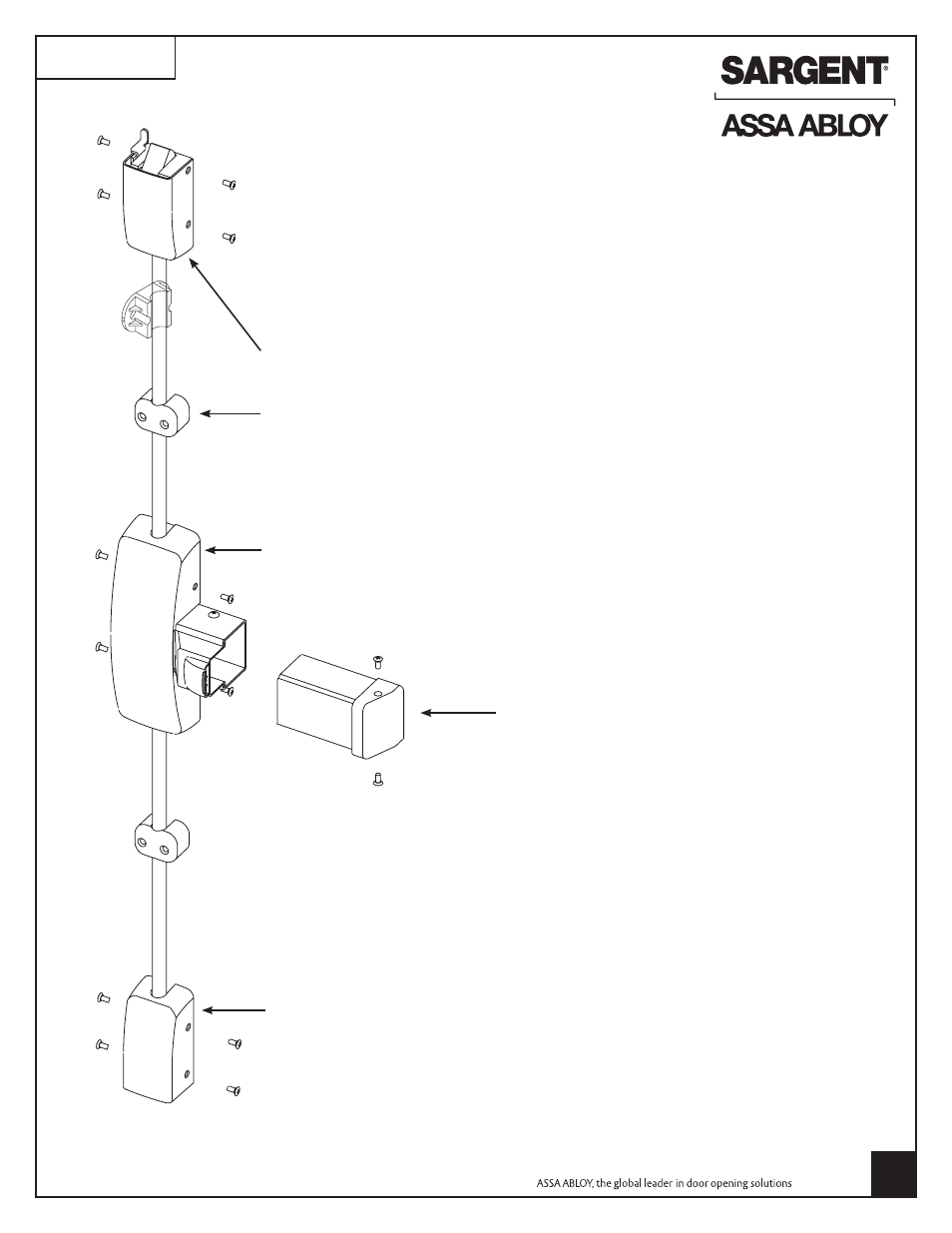

INSTALL GUIDES, COVERS AND END CAP
Top case cover
Rod guide
Chassis cover
Bottom case cover
End cap
1. Confirm operation of exit device. Adjust rods as needed.
2. Install top, bottom and center chassis covers as shown.
3. Install end cap as shown.
4. Install top and bottom rod guides at center of rod. Rod must float freely in guide
without rubbing.
5. For doors over 96": Install two (2) top rod guides equally spaced between the
top case and chassis cover. Rod must float freely in guides.
