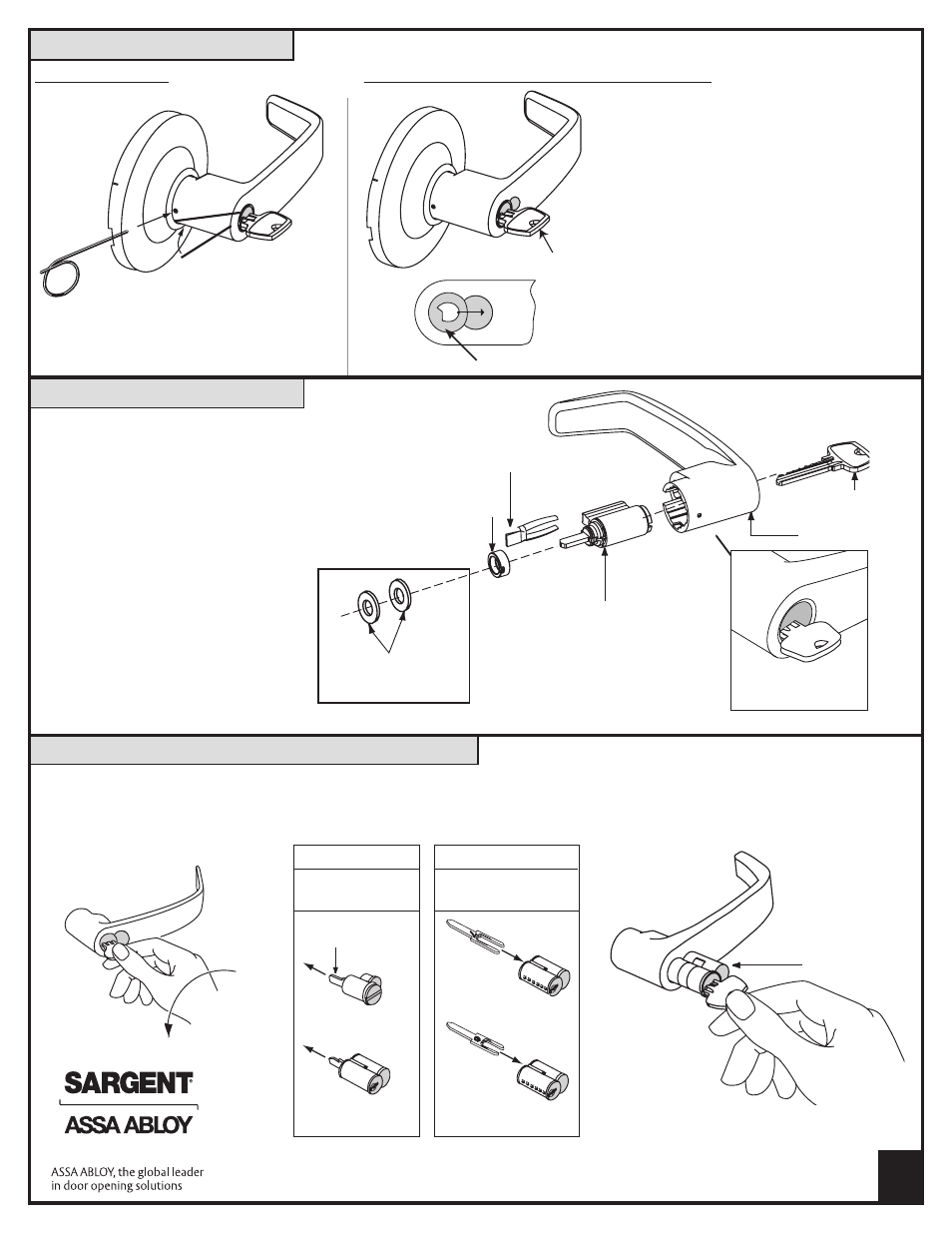

Lever and Cylinder Removal
Standard Cylinder Installation
Interchangeable or Removable Core Installation
Rotate key 45ϒ
and hold
Depress lever retainer
with push pin tool
Control key
*
C
Rotate key 45ϒ
and hold
Depress lever retainer
with push pin tool
Control key
*
C
Remove/Reuse
6 Pin Tailpiece
Plastic Core
Construction
Core
7-pin –
in box
6-pin –
in core
Keyed
Cylinder
Keyed
Cylinder
C
New Cylinder
Washers
(only 30-prefix)
Cylinder
retainer
Cylinder
Outside
lever
Key
Cylinder
spacer
IMPORTANT:
For 7G37 and Special Functions 7G16,
7G30, 7G38 and 7G54 only.
Before cylinder is installed, the lock must
be timed (preset) by rotating the cam
completely counter clockwise with a screw
driver. Cam is located within the outside
lever support tube.
• Remove cylinder and tailpiece, using
control key (stamped “C”)
• Insert Phillips #2 screw driver into
cylinder opening making contact with
lever retainer
• Pull lever retainer horizontally towards
door hinge and remove lever
*Note: 1 Bitted cylinders utilize a
control key cut 113511
4
Correct key orientation
during assembly
• IMPORTANT:
Remove tailpiece from construction
core and insert into new cylinder • Install Cylinder
Insert cylinder with control key (stamped “C”)
into lever; rotate 15° and remove key
• Remove construction core
or plastic core
If keyed – use Control Key
(stamped “C”) rotate 15°
and pull
Remove/Reuse
6 Pin Tailpiece
Plastic Core
Construction
Core
7-pin –
in box
6-pin –
in core
Keyed
Cylinder
Keyed
Cylinder
C
New Cylinder
Remove/Reuse
6 Pin Tailpiece
Plastic Core
Construction
Core
7-pin –
in box
6-pin –
in core
Keyed
Cylinder
Keyed
Cylinder
C
New Cylinder
Remove/Reuse
6 Pin Tailpiece
Plastic Core
Construction
Core
7-pin –
in box
6-pin –
in core
Keyed
Cylinder
Keyed
Cylinder
C
New Cylinder
Remove/Reuse
6 Pin Tailpiece
Plastic Core
Construction
Core
7-pin –
in box
6-pin –
in core
Keyed
Cylinder
Keyed
Cylinder
C
New Cylinder
C
Remove
Construction
Core
Install
New/Final
Cylinder
3
Lever retainer
Standard Cylinder Interchangeable and Removable Core Cylinder
