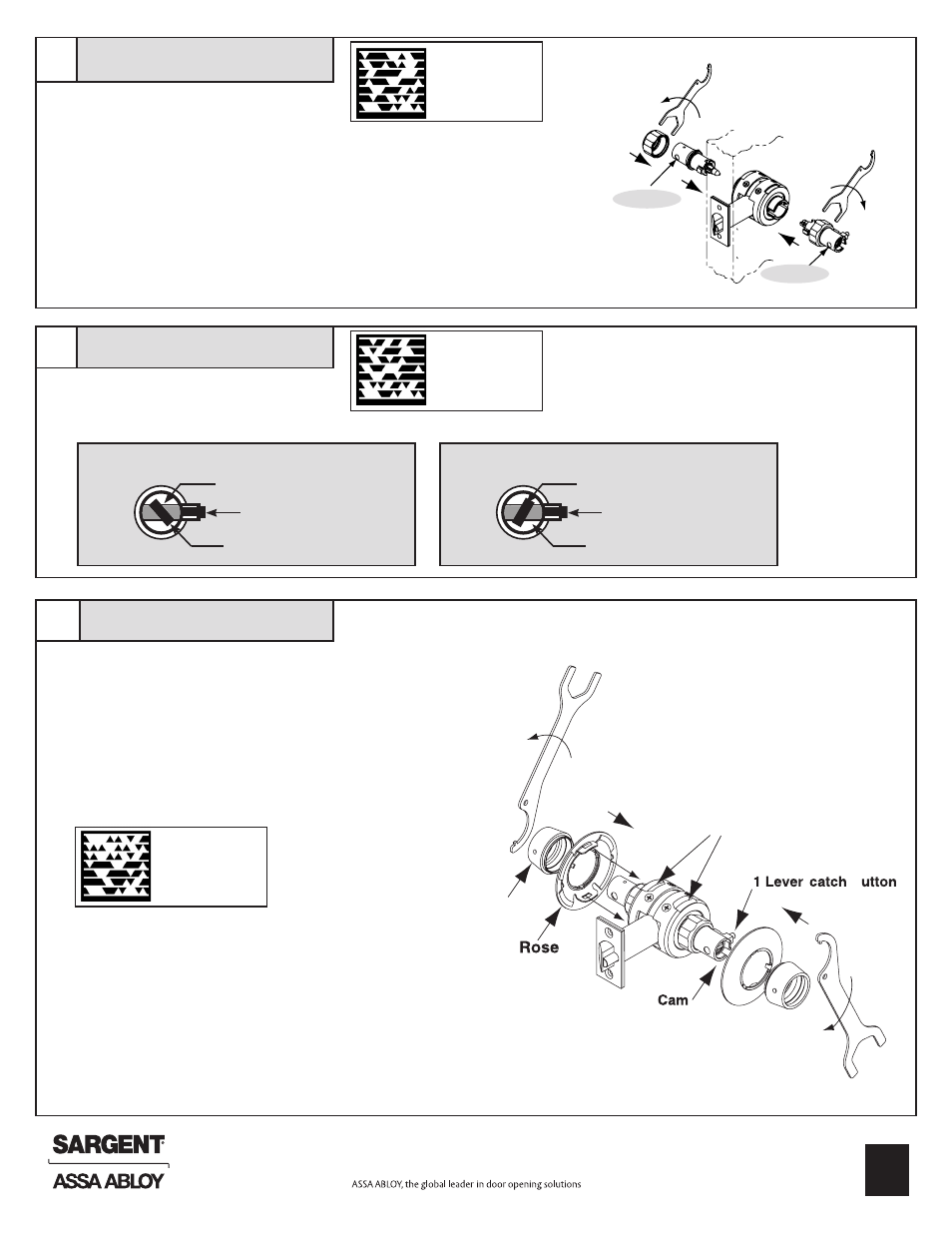

SARGENT 11 Line Lever Lock - Manual (Page 3)

Cam Orientation
Sleeve Installation
1
3
2
4
DIMPLE
DIMPLE
1. With driver tips aligned, insert outside
sleeve first. Dimple must face door edge
2. Thread outside collar by hand.
Tighten to bearing assembly with wrench
3. Insert inside sleeve. Dimple must face door edge
4. Thread inside collar by hand. Tighten to bearing
assembly with wrench
Caution: If excessive wrench
torque is required, stop and
check alignment of driver tips
7
Inside
Outside
CAM
8
1. Lock lever by button if applicable
2. Turn slotted cam until lever catch button can
be depressed
NOTE: Dark colored cams on the inside designate for
use with standard cylinders. Silver colored cams on the
inside designate for use iwth I/C & R/C cylinders.
Correct Cam Orientation for Standard Cylinder
LEVER CATCH SLOT
45º
ANGLE LEVER CATCH BUTTON
CYLINDER TAIL PIECE SLOT
Correct Cam Orientation for IC/RC Cylinders
LEVER CATCH SLOT
45º
ANGLE LEVER CATCH BUTTON
CYLINDER TAIL PIECE SLOT
(within sleeve)
Rosette
4
3
Rosette
2 Rose
b
Slots for tabs on rose Inside
Outside
Rose Installation
9
3
Copyright © 2013 SARGENT Manufacturing.
All rights reserved. Reproduction in whole or
in part without the express written permission
of SARGENT Manufacturing is prohibited.
A7469K
1. Slide rose over sleeves aligning tabs on rose with slots
on bearing assembly
2. Hand tighten rosettes to door surface
Caution: If excessive wrench
torque is required, stop and
check for cross-threading
Note: Rosettes must be tightened simultaneously to ensure
proper centering of lock on door.
GUARDBOLT
Scan to see a video of
this installation step.
Scan to see a video of
this installation step.
Scan to see a video of
this installation step.
(See also A7471 instructions)
