56
PRO
JE
CTIN
G AN IMAGE
FROM A
V
EQU
IPME
NT
Projecting an Image from AV Equipment

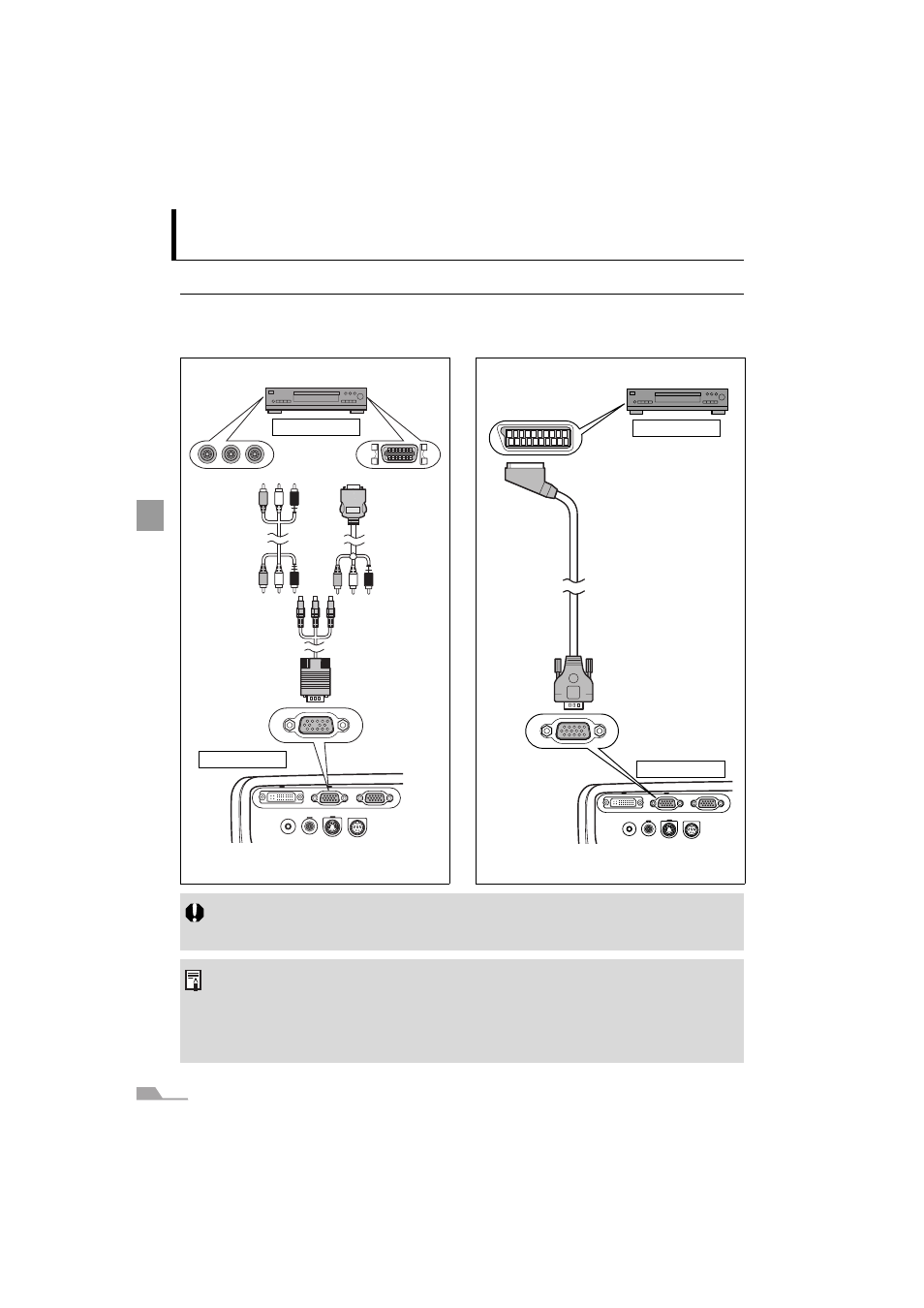

Connecting the Projector to an AV Equipment
Connect the projector and AV equipment.
Connecting to Video Terminals
Supplied component cable
Video output
terminal
INPUT Signal: [COMPONENT] is selected
automatically
AV equipment
Projector
(RCA terminal) (D terminal)
Commercial
Component
cable
(RCA x 3)
Commercial
Component
cable
(D terminal/
RCA x 3)
Supplied com-
ponent cable
(RCA/Mini D-sub
15-pin)
Component
input terminal
(ANALOG IN-2)
SCART cable
INPUT Signal: Select [SCART] (P63)
AV equipment
Projector
(SCART terminal)
Input Terminal-2
(ANALOG IN-2)
LV-CA31 cable
z Before connecting cables, turn off both the projector and AV equipment.
z The above illustrations are just examples. For more detailed information, refer to the manual
for the connecting AV equipment.
About the Component Cable
The projector cannot be connected to an AV equipment only with the supplied component
cable (RCA/Mini D-sub 15-pin). Please purchase either of the following cables according to the
type of the terminal on the AV equipment:
z RCA terminal: RCA x 3/RCA x 3 cable
z D-terminal: D-terminal/ RCA x 3 cable
